DGM PM 3 Series, Clutch type, digital door lock
Request For Quotation
DGM PM 3 Series, Clutch type, digital door lock
- Award
-
- Shipping
-
- Payment
-
140+ Global Payments, trusted and secure payment provided by PayVerse.
Learn More
- Quantity
- MOQ : 1,000 EA
Detailed Description
DGM PM 3.0 Series
- Small size and high power
- Choose metal gear or mold gear inside assembly
- Insulation level B
- Include “Clutch”
- Special Type is possible
■ Specification (Geared Motor)
| Model | Rated Voltage [VDC] | Gear Ratio | No Load | Stall Torque [Kgf.cm] | Detent Torque [Kgf.cm] | Rotation | Environment | |
| Speed [rpm] | Current [mA] | |||||||
| DGM-PM(3.0) | 5.0 | 222.9:1 | 67.3 | 100 (Max) | 2.0 (Min) | 1.5 (Max) | CW/CCW | -20℃~50℃ |
- The above specification written by 15000rpm standard, We have manufactured them according to the rated 16000rpm.
- Only when impressing, the product transmit power because of including clutch.
- Furthermore, It is possible to change specification by user request.

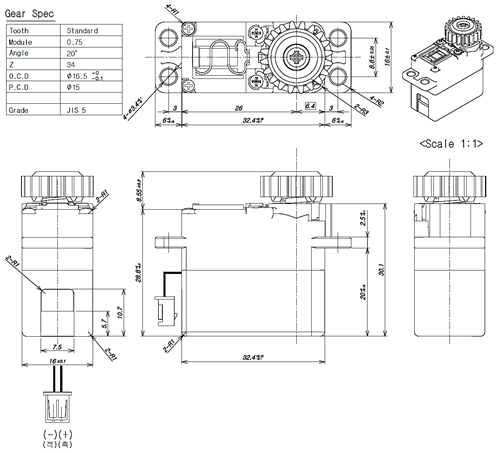

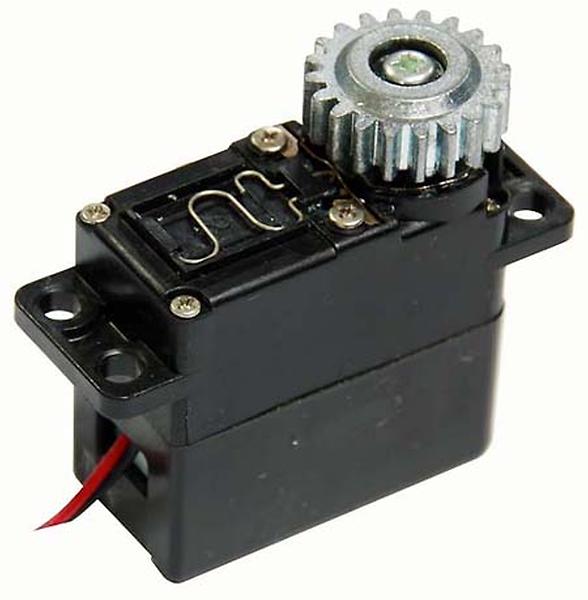

■ Gear Type “A”

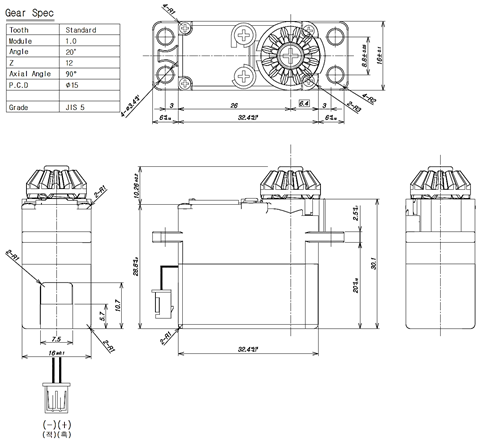

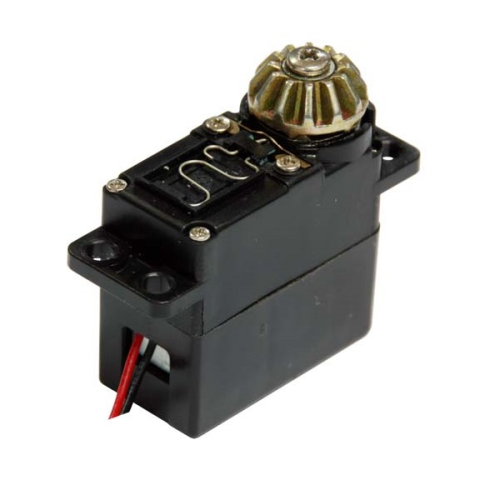

■ Gear Type “B”
