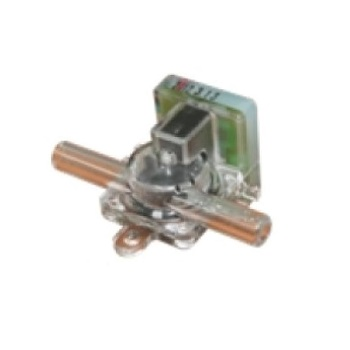

Flower meter Sensor, SFM2000, DC5V,
- Award
-
- Shipping
-
- Payment
-
140+ Global Payments, trusted and secure payment provided by PayVerse.
Learn More
- Quantity
- MOQ : 100 EA
Detailed Description
SFM Series (Flower meter sensor)
- It is used to sense the move of the fluid and water-flow rate..
- it is the water-flow sensor of the photo sensor method.
- Using temperature : 0℃ ~ + 80℃
- Special Type is possible
■ Specification
| Data | SFM-2000 |
| Rated Voltage | DC 5V |
| Rated water-Flow Rated | 300cc ~ 2000cc / Min |
| Max water-Flow Rated Allowance | 4000cc / Min |
| Safekeeping Temperature | -20˚C ~ 85˚C |
| Fluid temperature Allowance | '0℃ ~ 50℃ (except freeze) |
| Circumference Temperature | '0℃ ~ 80℃ |
| Circumference Humidity | 45% ~ 95% RH |
■ Characteristic
Frequency characteristic of the each water-flow rate (Tolerance ±8%)
| cc/Min | 500 | 1000 | 1500 | 2000 | 2500 | 3000 | 3500 | 4000 |
| Hz/sec | 64 | 130 | 198 | 265 | 333 | 400 | 467 | 535 |
■ Life Test
It should be within 3% from Frequency's value after the maintenance during 1000 hours from the pressure(1.0Kgf.㎠).
■ Pressure Test
It should be water weak during 5 minute from the pressure(3.0Kgf.㎠).
| Unit : Millimeters |

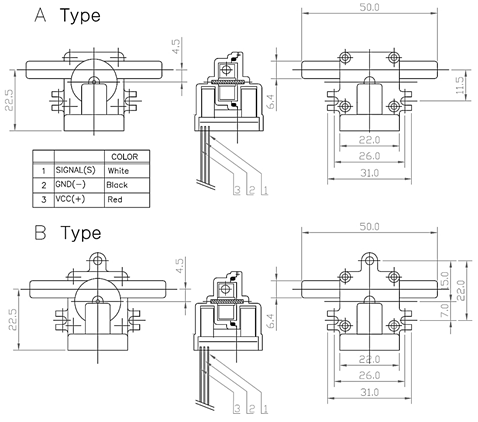

■ Dimensions
