Microwave motion sensor, MS701,
Request For Quotation
Microwave motion sensor,motion sensor, sensor, Automatic sliding Door
- Award
-
- Shipping
-
- Payment
-
140+ Global Payments, trusted and secure payment provided by PayVerse.
Learn More
- Quantity
- MOQ : 1
Detailed Description

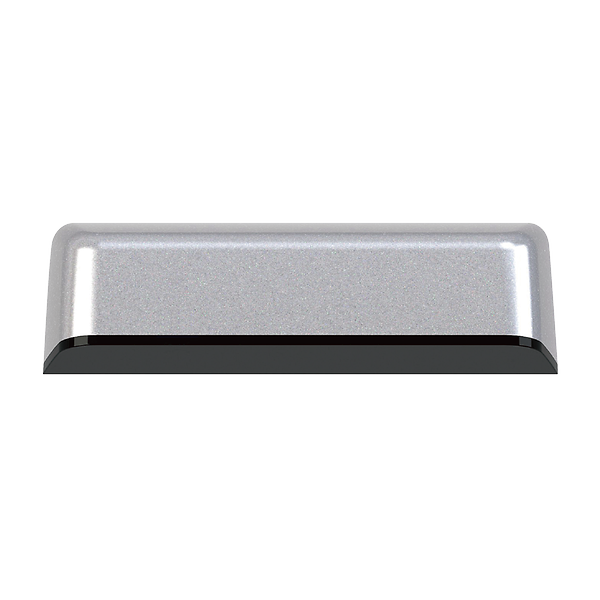

MS-701 (Microwave Motion sensor)
- This is used for automatic door microwave motion sensor
- This is used for only the automatic doors..
- This is possible to adjust the Module angle
- This is available at -40℃ ~ + 60℃
■ Specification
|
Mode |
MS-701 |
|
Input Voltage |
DC12~30V, AC12~24V |
|
Current consumption |
150mA(DC12V , +25℃) |
|
Microwave module |
24.125GHz |
|
Contact capacity |
0.5A/125VAC, 1A/24VDC |
|
Hold time |
1.2 ~ 20 Sec. (Standard: 1.2Sec.) |
|
Detecting feild |
4*3 (W*D) (Height 2.2M ) |
|
Max Install height |
3.0M |

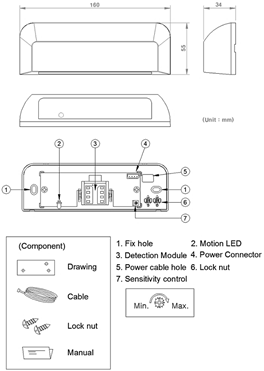

■ Dimensions
■ Please do not install below place.
- Area to move of objects like leaves.
- Area to be exposed rain or snow.
- Area to be vibration.
- Area to be near fluorescent light.
