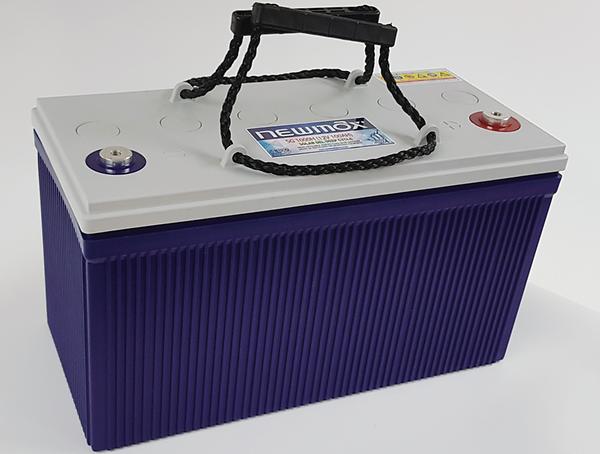

Solar Gel Battery SG1000H 100Ah
Newmax Solar Gel batteries are true maintenance-free sealed batteries engineered specifically to satisfy the need for frequent deep cycles
- Certification
-
- Award
-
- Shipping
-
- Payment
-
140+ Global Payments, trusted and secure payment provided by PayVerse.
Learn More
Detailed Description
THE SG SERIES DIFFERENCE
Solar Deep Cycle Specialization:
GEL technology prevents stratification of the plates greatly increasing the number of cycles the battery can withstand.
Maintenance Free
Gas re-combination system makes it free of maintenance
Leak Free
Recharges faster with ActiveCarbon™ Technology. Proprietary
carbon additives strengthen charge pathway in the cells.
Safety Heat Protection
Specially designed anti-explosion filter and safety valves prevent
gas leakage when overcharged. High-durability polypropylene
case (Heat Deflection Level Temp. 140˚C)
Technology
ThixoPure™ Silica GEL Technology with microporous separator and
DenseMax™ Plate Technology enable true deep cycle performance.
|
Model number |
V |
Capacity (Ampere) |
Dimension (mm) |
Weight (kg) |
packing /pallet |
Terminal Type |
|||
|
Length |
Width |
Height |
T.Height |
||||||
|
SG800H |
12V |
80 |
368 |
172 |
210 |
219 |
27 |
60 |
Embedded |
|
SG1000H |
12V |
100 |
368 |
172 |
210 |
219 |
30 |
60 |
Embedded |
|
SG1500H |
12V |
150 |
522 |
240 |
215 |
221 |
44 |
36 |
Embedded |
|
SG2000H |
12V |
200 |
522 |
240 |
215 |
221 |
57 |
30 |
Embedded |
|
12V |
220 |
522 |
240 |
215 |
221 |
59 |
30 |
Embedded |
|
