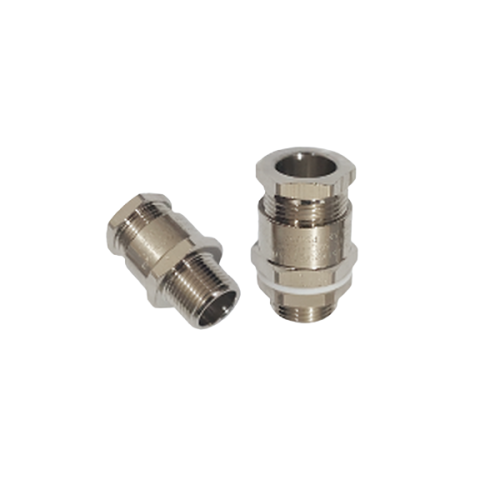

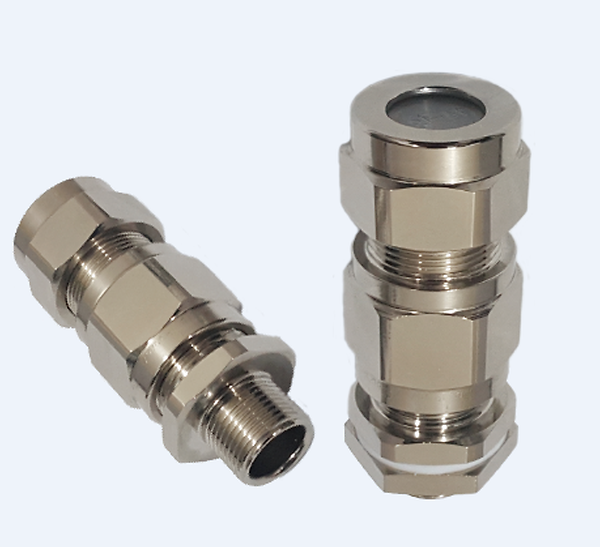

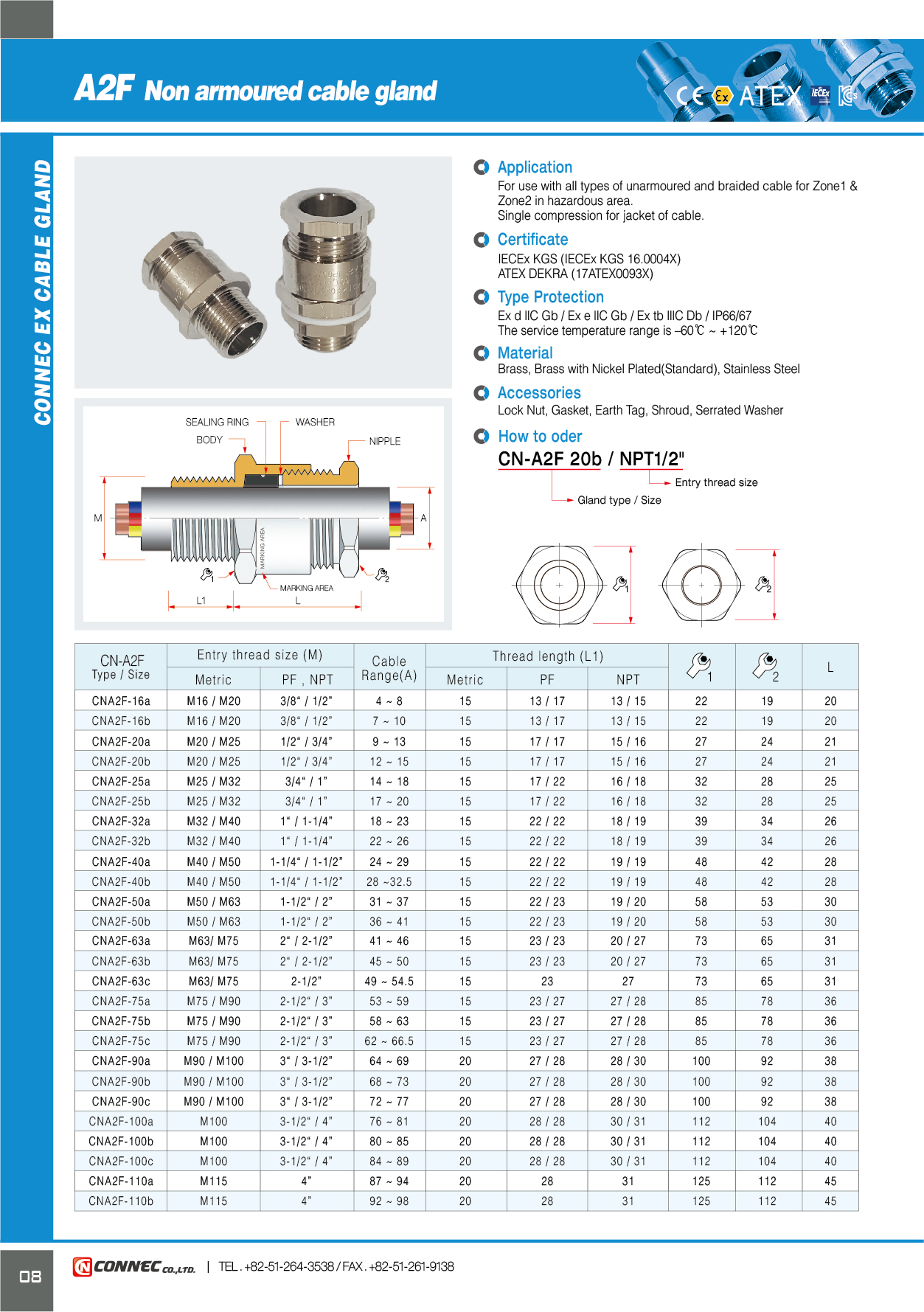

Model Name : A2F

- Application : For use with all types of unarmoured and braided cable for

                    Zone1 & Zone2 in hazardous area.

                    Single compression for jacket of cable .

- Materials : Brass, Brass with nickel plated(Standard), Stainless Steel .

- Ceritificate : IECEx KGS (IECEx KGS 16.0004x)

                    ATEX DEKRA (17ATEX0093X)

- Type Protection : Ex d IIC Gb / Ex e IIC Gb / Ex tb IIIC Db / IP66/67

                           The service temperature range is -60℃ to +120℃

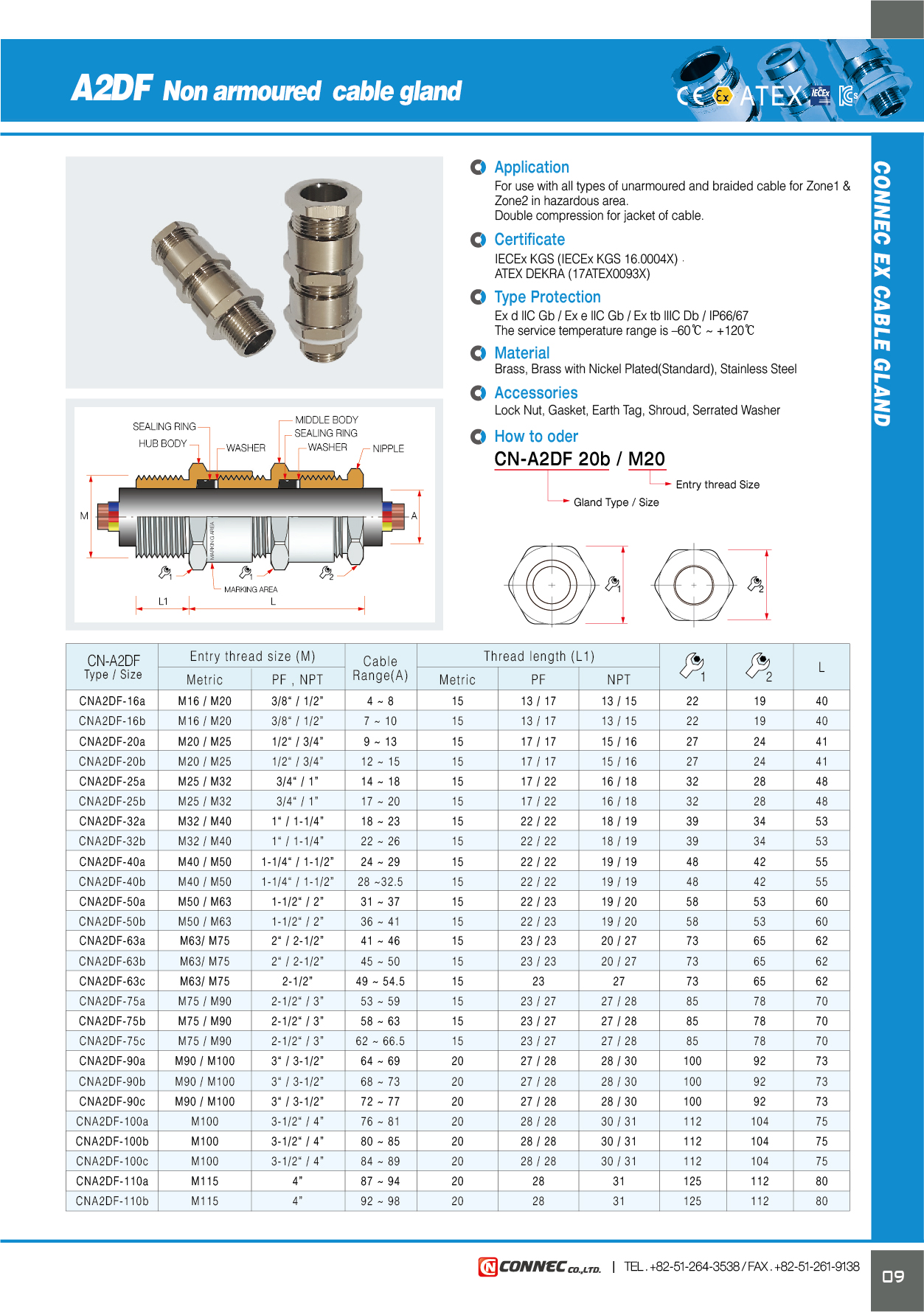

Model Name : A2DF

- Application : For use with all types of unarmoured and braided cable for

                    Zone1 & Zone2 in hazardous area.

                    Double compression for jacket of cable .

- Materials : Brass, Brass with nickel plated(Standard), Stainless Steel .

- Ceritificate : IECEx KGS (IECEx KGS 16.0004x)

                    ATEX DEKRA (17ATEX0093X)

- Type Protection : Ex d IIC Gb / Ex e IIC Gb / Ex tb IIIC Db / IP66/67

                           The service temperature range is -60℃ to +120℃

Model Name : E1F(X)

- Application : For use with wire braid armoured and steel tape

                    armoured cable for Zone1 & Zone2 in hazardous area.

                    Double compression for outer/inner jacket of cable .

- Materials : Brass, Brass with nickel plated(Standard), Stainless Steel .

- Ceritificate : IECEx KGS (IECEx KGS 17.0001x)

                    ATEX DEKRA (17ATEX0094X)

- Type Protection : Ex d IIC Gb / Ex e IIC Gb / Ex tb IIIC Db / IP66/67

                           The service temperature range is -60℃ to +120℃

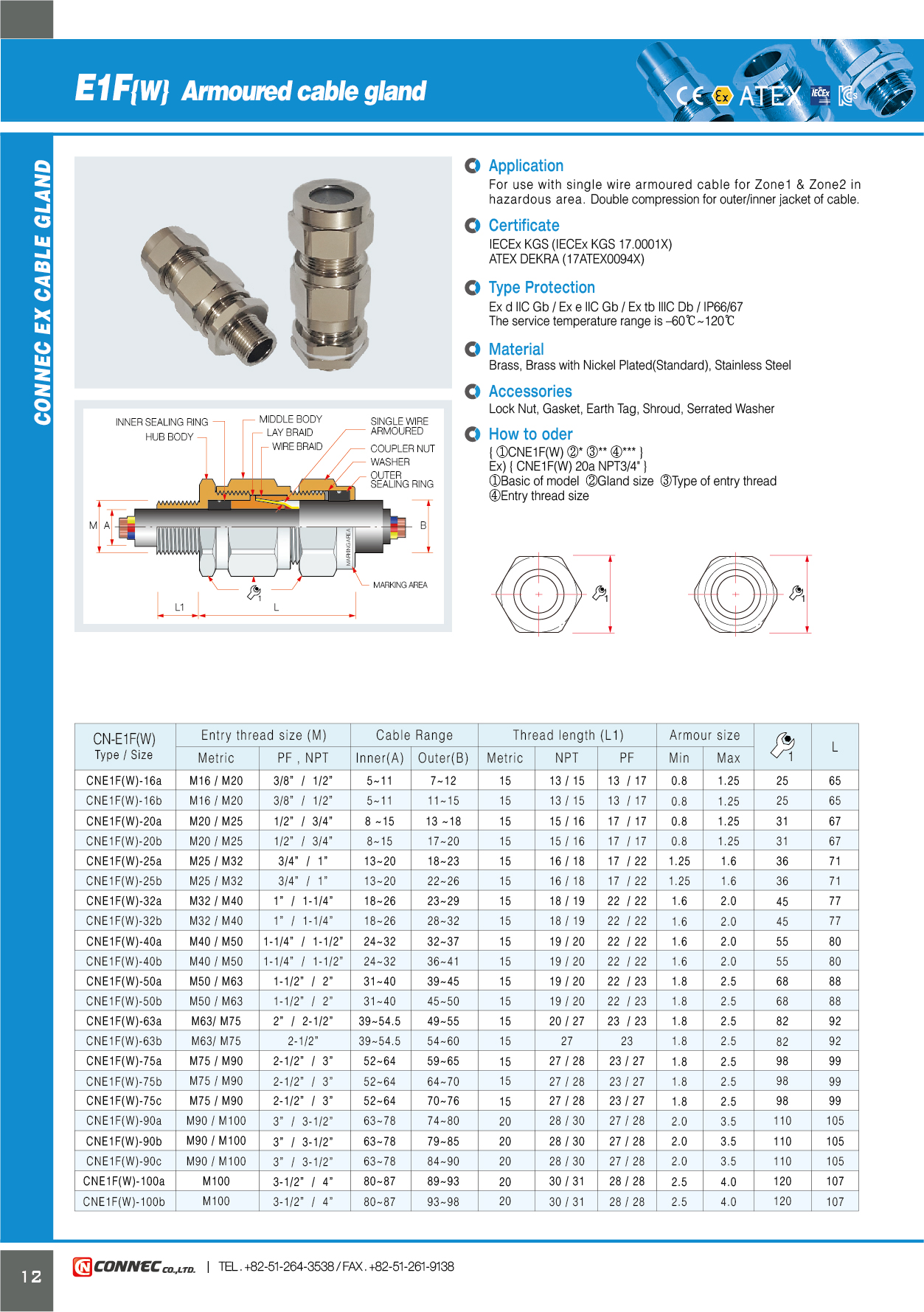

Model Name : E1F(W)

- Application : For use with single wire armoured cable for Zone1 & Zone2

                    in hazardous area.

                    Double compression for outer/inner jacket of cable .

- Materials : Brass, Brass with nickel plated(Standard), Stainless Steel .

- Ceritificate : IECEx KGS (IECEx KGS 17.0001x)

                    ATEX DEKRA (17ATEX0094X)

- Type Protection : Ex d IIC Gb / Ex e IIC Gb / Ex tb IIIC Db / IP66/67

                           The service temperature range is -60℃ to +120℃

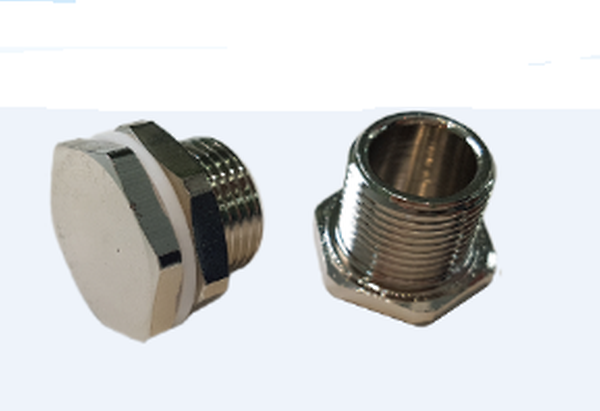

Model Name : SP (Stopping Plug)

- Application : To close unused cable gland entries and any unused entries

                     in electrical equipment .

- Materials : Brass, Brass with nickel plated(Standard), Stainless Steel .

- Ceritificate : IECEx KGS (IECEx KGS 14.0009x)

                    ATEX DEKRA (16ATEX0018)

- Type Protection : Ex d IIC Gb / Ex e IIC Gb / Ex tb IIIC Db / IP66/67

                           The service temperature range is -60℃ to +120℃

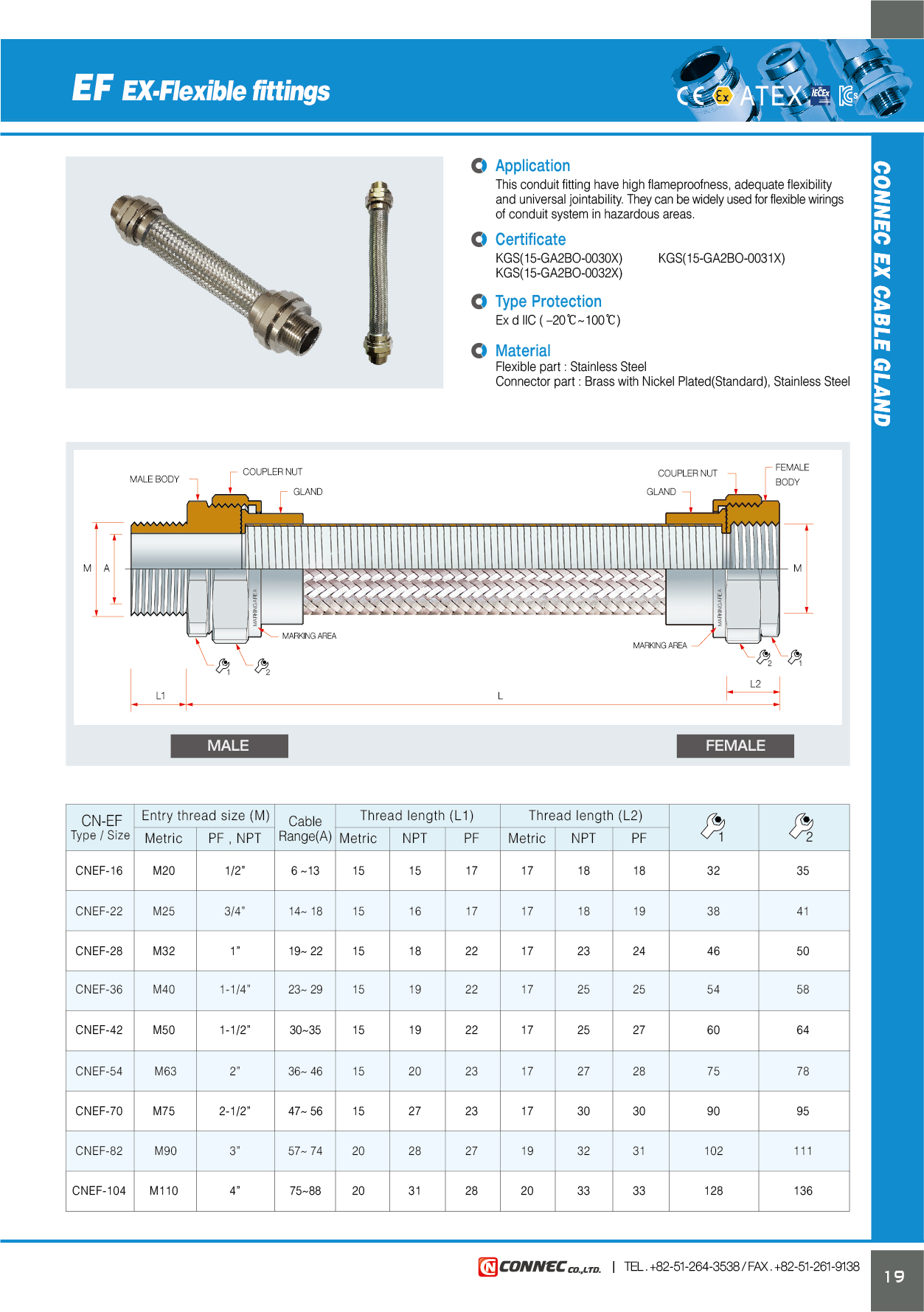

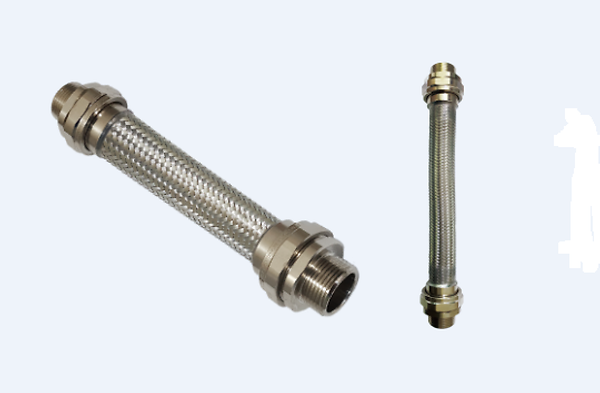

Model Name : EF (Ex-Flexible conduit)

- Application : This conduit fitting have high flameproofness, adequate

                    flexibility and universal jointability.

- Materials : Flexible part(Stainless Steel)

                  Connector part(Brass with nickel plated(Standard), Stainless

                  Steel)

- Ceritificate : KGS(15-GA2BO-0030X)

                    KGS(15-GA2BO-0031X)

                    KGS(15-GA2BO-0032X)

- Type Protection : Ex d IIC (-20℃ to +100℃)
