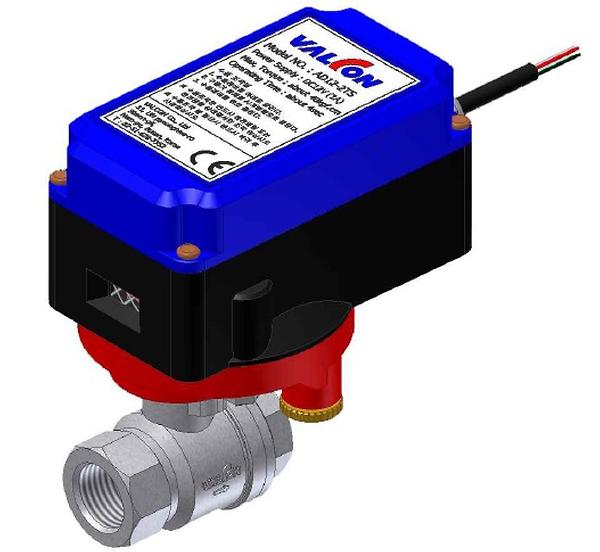

It is sold with ball valve and electric actuator engaged.

Control : DC contact point control   /   Consumption : DC 12V or DC 24V

Apply to B/V (PT type) : 15~25A Ball valve (Please choose one of the following types)

    1> Brass-body nickel plated. Ball chrome plated (Standard Edition)

        : ① 15A(1/2")               ② 20A(3/4")             ③ 25A(1")

    2> Brass-body nickel plated. Ball chrome plated (For high temperature)

        : ① 15A.H(1/2")            ② 20A.H(3/4")           ③ 25A.H(1")

    3> SUS 304

         : ① 15S(1/2")              ② 20S(3/4")             ③ 25S(1")

    4> SUS 316

         : ① 15A SUS316(1/2")   ② 20ASUS316(3/4")   ③ 25ASUS316(1")

IP Rating : IP 68 (Waterproof type)  /  Certification : CE

*Please you must determine the size and material of the valve.

*Please contact us when changing the quantity.

*The unit price may change depending on the exchange rate.
