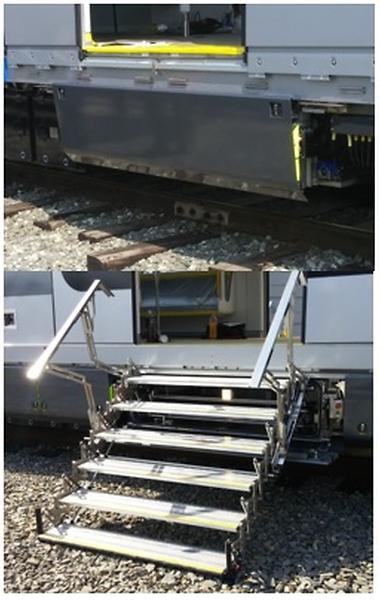

It is an emergency ladder system that allows stairs to be built between trains and the ground in an emergency to quickly and safely evacuate passengers from the danger of secondary cargo.

1) Size : Width 2,100mm, Length 550mm
2) Available Height : To ground from door rail minimum 1,000mm, Maximum 1,700mm

   (There must be no obtacles within at least 2m from detainment device)
3) Step size : Width 1,350mm, 250mm ( Two mans can stand side by side)
4) Maximum allowable load weight per step: Around 200KN
5) Total step maximum allowable load : Around 1.2t

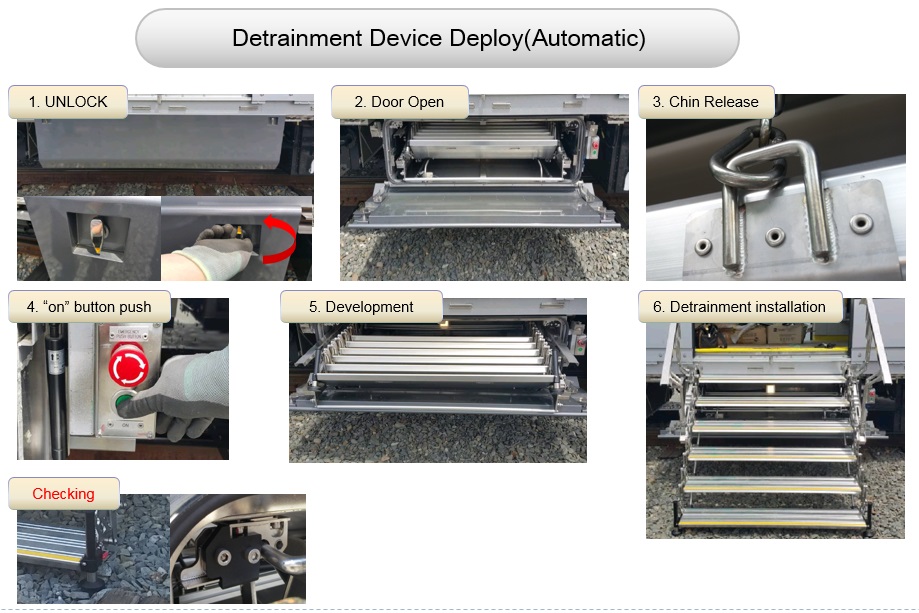

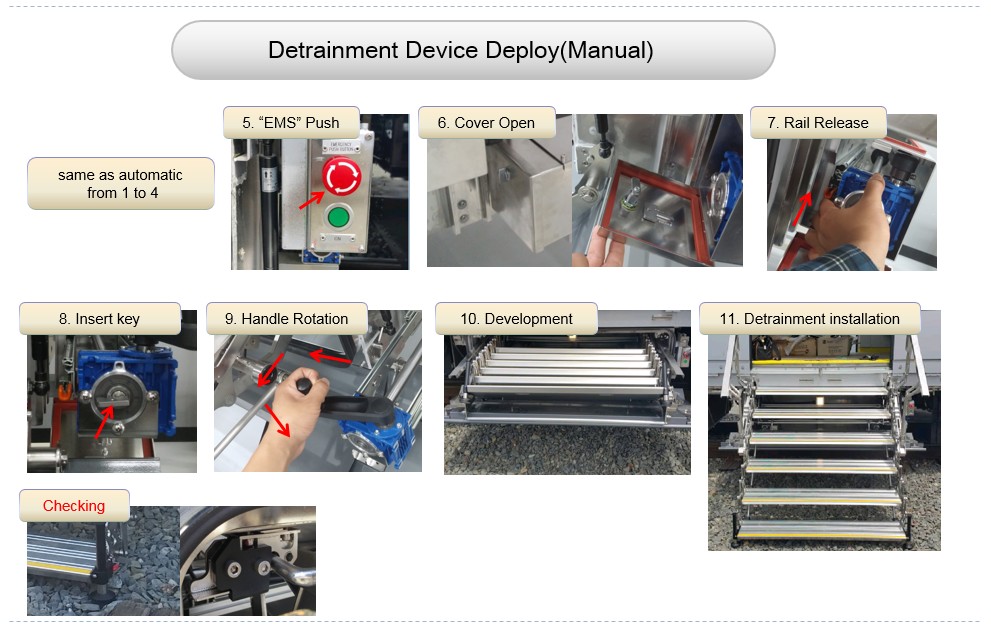

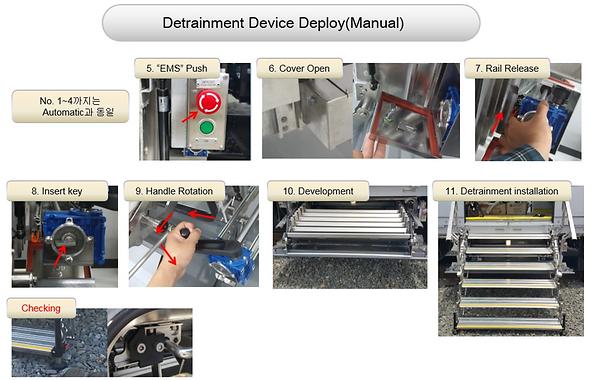

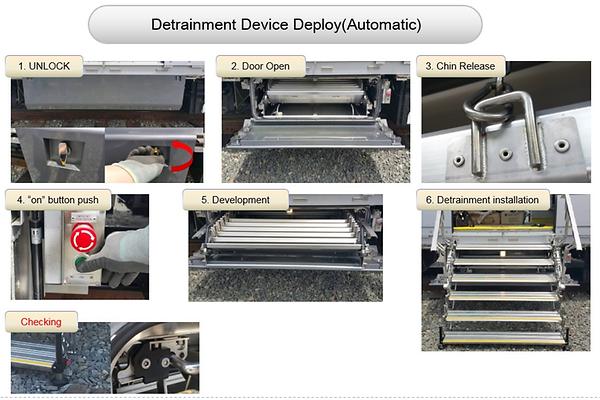

6) Operation method : Automatic (push button)/ Manual (handle)

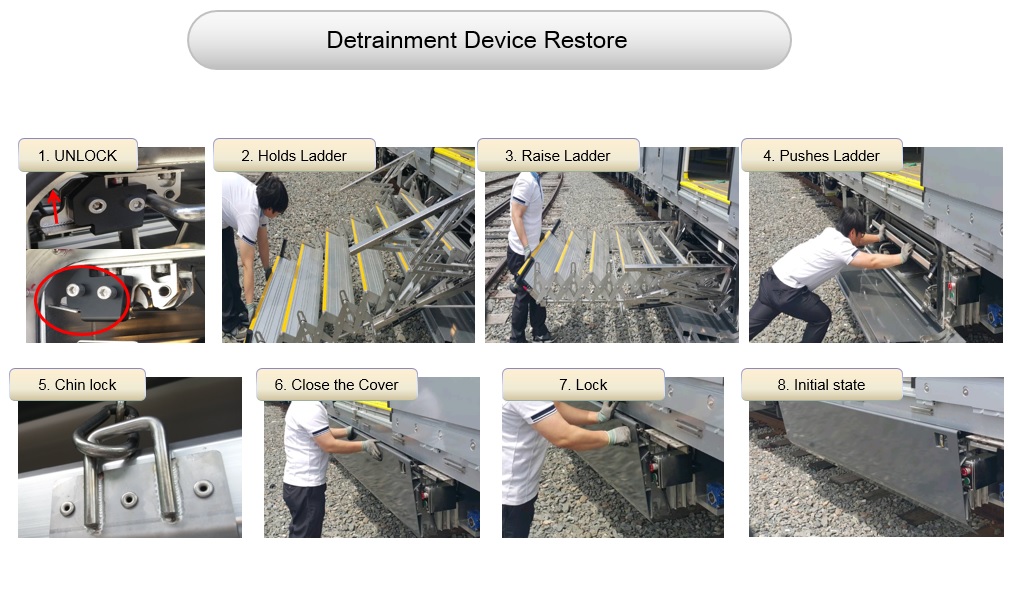

7) Eviction method :  Reverse order of operation method During use at night

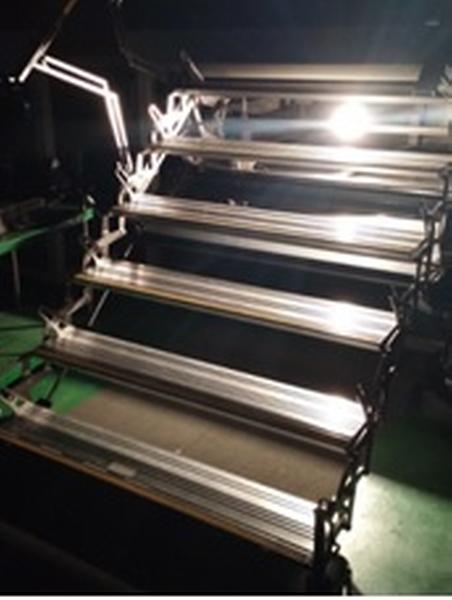

8) LED lighting radiation angle  : 120 degrees
9) Lighting for step : Minimum 40lux, Maximum 90lux.

♤ IMAGE
