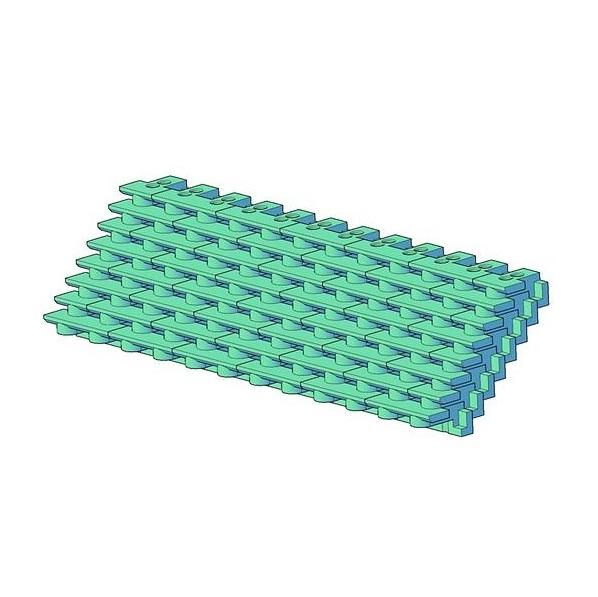

United Stairs Blocks

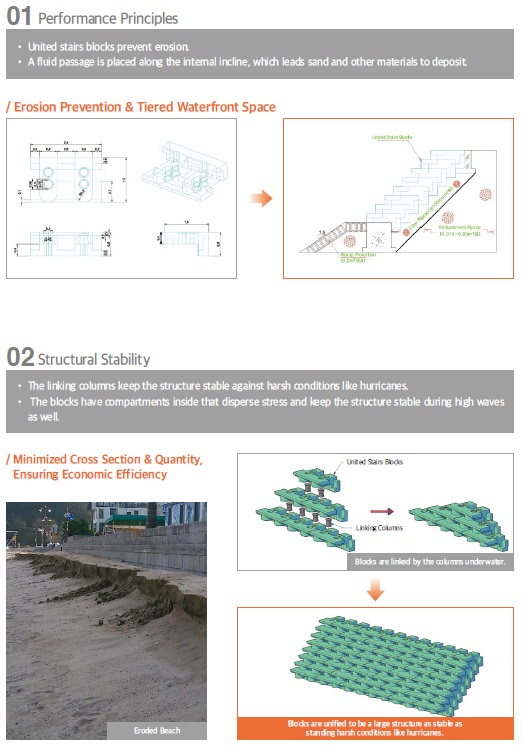

01 Performance Principles

• United stairs blocks prevent erosion.

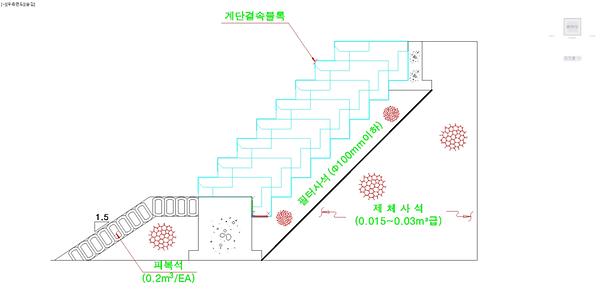

• A fluid passage is placed along the internal incline, which leads sand and other materials to deposit.

02 Structural Stability

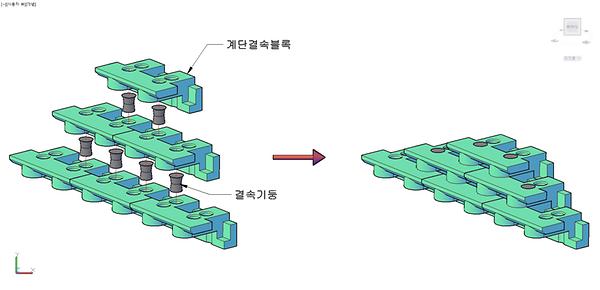

• The linking columns keep the structure stable against harsh conditions like hurricanes.

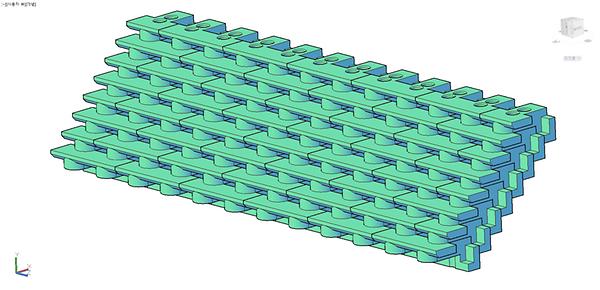

• The blocks have compartments inside that disperse stress and keep the structure stable during high waves as well.

                                       (a)                                                                         (b)

                      (c)                                         (d)

                                     (e)

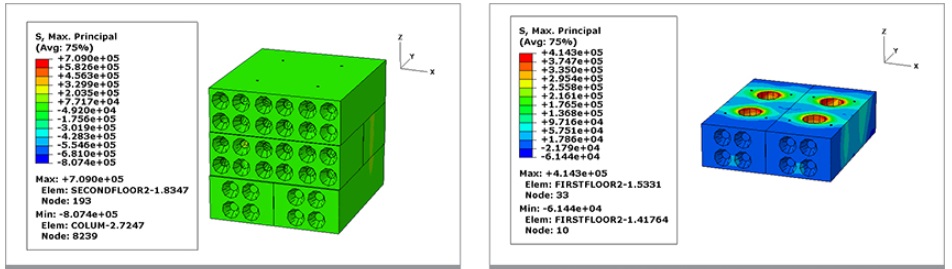

(a)Total stress distribution of tiecell-turning wave block system applied by circle column type

(b) Stress distribution on 1st layer block of tiecell-turning wave block system applied by circle column type

(c) Stress distribution on 2nd layer block of tiecell-turning wave block system applied by circle column type

(d) Stress distribution on Cap Concrete of tiecell-turning wave block system applied by circle column type

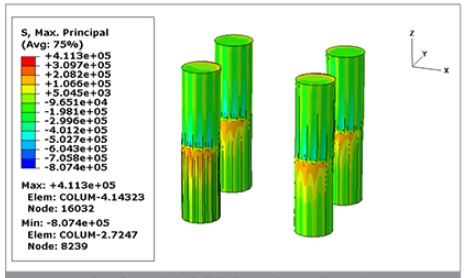

(e) Stress distribution on Column of Tiecell of tiecell-turning wave block system applied by circle column type

Result: Stress Distribution of Tiecell-Turning Wave Block system on 0% for reduction ratio of wave pressure(circle column type of Tiecell)
