Low voltage DC Contactor Relay

share

Request For Quotation
POWNIX Contactor which is used for Power Supply System, Telecommunication appliance equipment.

Certification
Award
Shipping
Payment

140+ Global Payments, trusted and secure payment provided by PayVerse.

Learn More
Quantity
MOQ : 30

Detailed Description

│ DESCRIPTION │

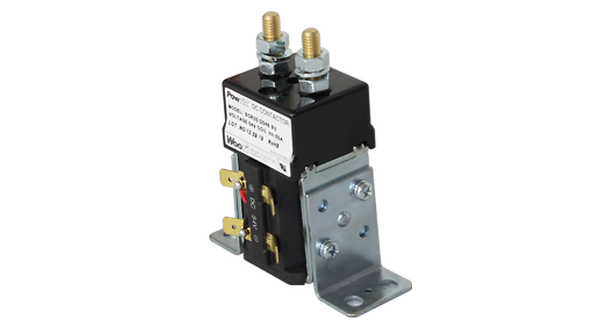

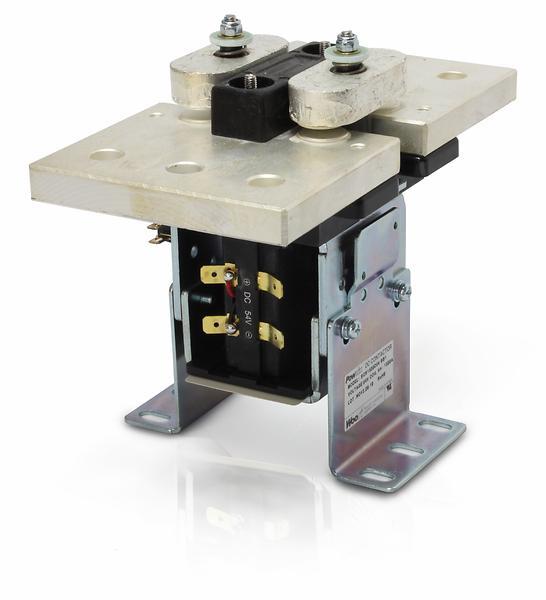

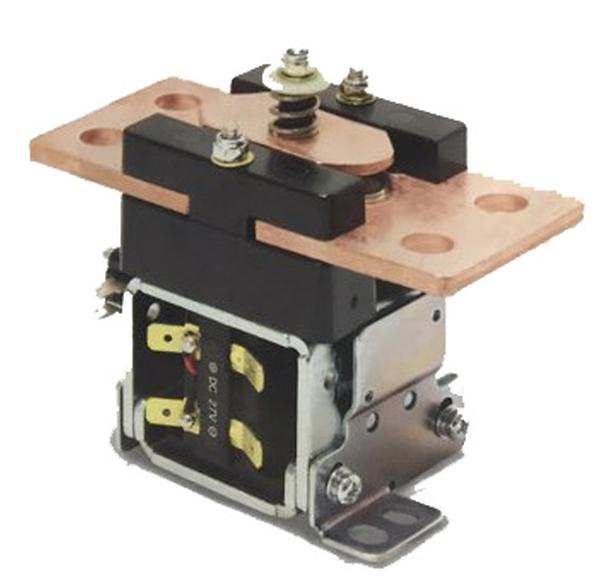

POWNIX Contactor which is used for Power Supply System, Telecommunication appliance equipment has the series of 50, 80, 125, 200, 250, 400, 600, 800, 1000, 1200, 1500, 1800A. Some contactors used for Vehicle is now being developed and sold.
Operating voltage is DC 80V, Contact Configuration is composed of SPST (Single Pole Single Throw), SPDT (Single Pole Double Throw).

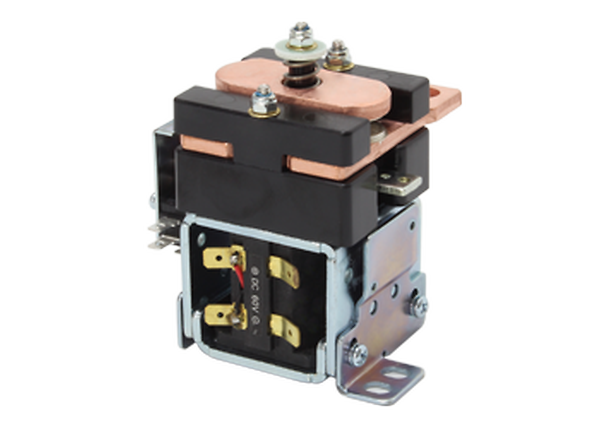

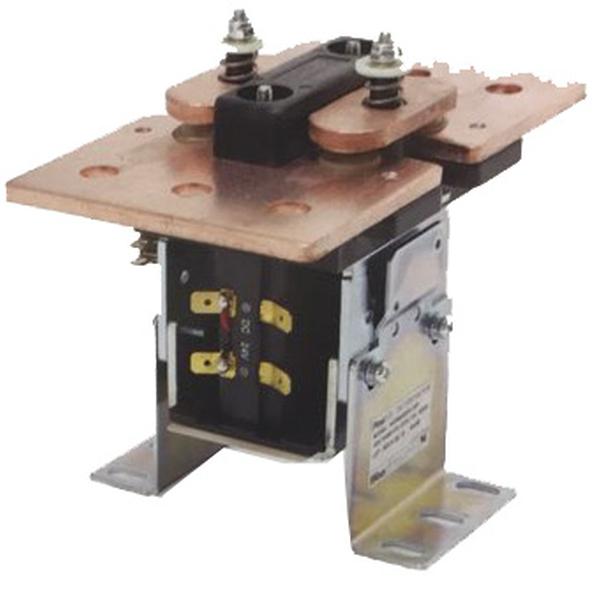

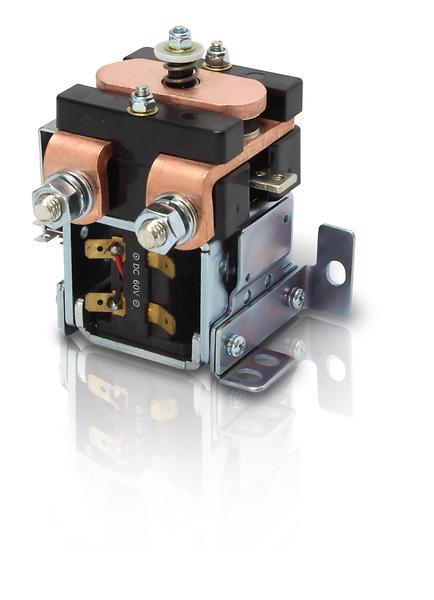

Change-Over operating type is composed of Standard type and Magnetic Latch type. Connection type is composed of Screw type, Terminal type, Busbar type. The Coil is made with H Insulation system (180°C), UL-listed and Aux. S/W attachment is available.
The goods are the Global Leading DC Contactor which is UL approved and has high quality, long life and high reliability.



FEATURES

APPLICATIONS

- High contact capacity with superior in rush current characteristics.
- Excellent high heat-resistance.
- High dielectric strength (10,000V surge conforming to VDE0806)
- Various rated currents
- Convenient structure to operates

- Power Supplier for Communication
- Power Converse Equipment
- Rectifier
- Forklift



It would be helpful refer to our web-site : http://eng.pownix.com/
