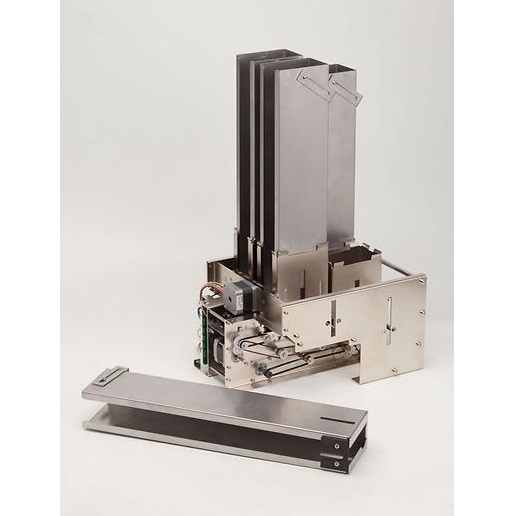

2Tray & 4 Tray Card Dispenser

* 2 Tray Card Dispenser  Dimension (L x W x H)​

- TD2200-R210 : 643.5 x 180.5 x 367.4(mm) / 300​

- TD2200-R310 : 643.5 x 180.5 x 519.4(mm) / 500​

* 4 Tray Card Dispenser Dimension (L x W x H)​

- TD2400-R210 : 654.1 x 242.0 x 367.4(mm) / 300​

- TD2400-R310 : 654.1 x 242.0 x 519.4(mm) / 500


Features

*ISO 7811 / ISO 7810 ID-1, PET, PAPER​

* Operating Speed 1.0 Sec per card.​

* Interface RS232 and USB2.0​

* Card Capacity 150 Cards (0.76mm per card Thickness)

- Option (300 cards and 500 cards)​

* Reject Path (Bin) already built in​

* Kiosk card printer & Card Encoder and Reader upon request (Optional)​

* Available on 6 & 8 tray.

1. TD-1000

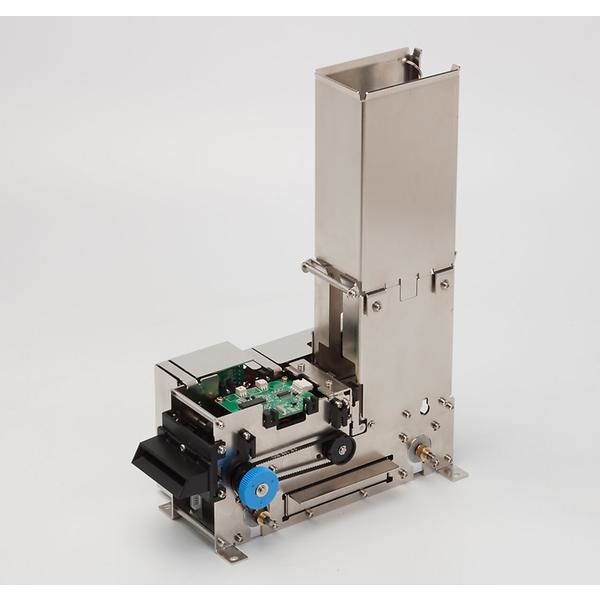

Card Dispenser (Single Tray)

High dispensing speed

Support various card types

Adopting various-quantity cassette Type

Hopper capacity : Default 150pcs

(Option: 300pcs, 500pcs)

Features

Very Compact & Robust Structure

Intelligent Card Dispenser - 500pcs max. (0.76mm)

High Speed Card Issuing : 0.6 ~ 1.0 Sec/Card

Card Thickness : 0.2 mm ~ 1.2 mm

RS-232C & USB Interface

2. TD-2A00 & TD-3A00

Card Dispenser (Multi Tray)

High dispensing speed

Support various card types

Adopting various-quantity cassette Type

Hopper capacity : Default 150pcs

(Option: 300pcs, 500pcs)

Features

Very Compact & Robust Structure

Intelligent Card Dispenser - 150pcs (0.76mm)

High Speed Card Issuing : 0.6 ~ 1.0 Sec/Card

Card Thickness : 0.2 mm ~ 1.2 mm

RS-232C & USB Interface
