Detailed Description

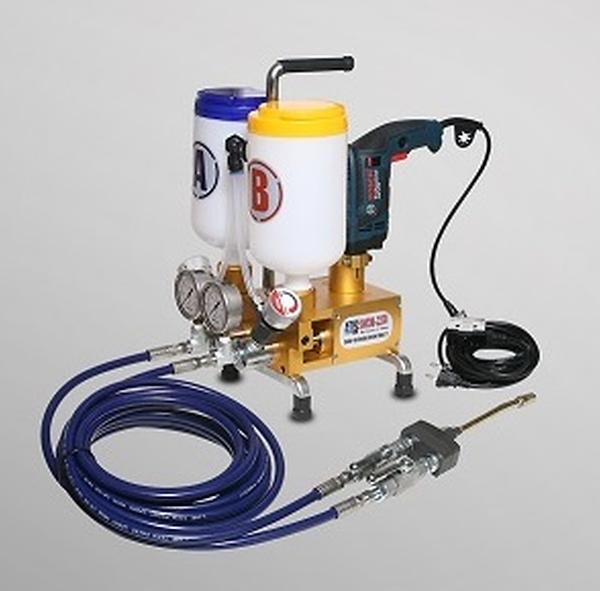

acrylic resin injection pumP ARC-3000

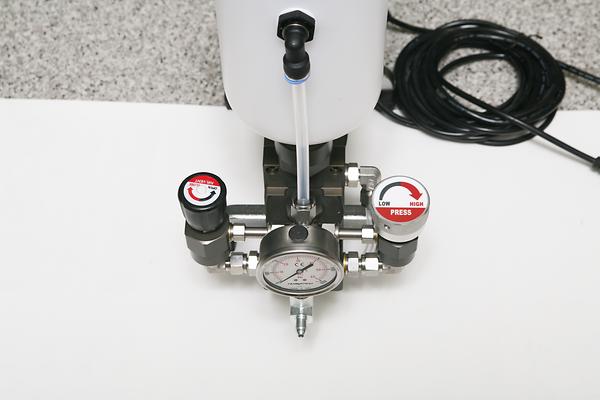

Drive, two pressure gauge units with 0-600bar, 2x2ℓ material container transparent, 2x4m material

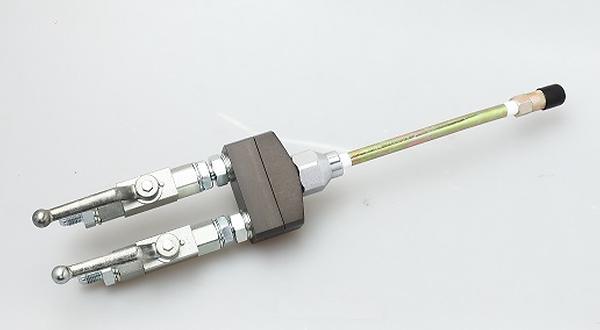

hose(NO.04) Ø 6.4mm, two components mixing head.
• 2-components injection resin
• Acrylic resin
• Aqueous solution
Description
• The pump short-time is service
• Speed & pressure control is depending on field conditions
• The oil protection gauge unit is an option
• Two components Mixing head
• The pump is small and light
• Easy operation and cleaning
Technical data
Working pressure-infinitely variable 10 - 200 bar
Delivery 1.1ℓ/min
Mixing ratio 1:1
Weight 17.5 kg
Width / Length / Height 30 / 41 / 47 cm
Supply / Moter Power AC 220V 60Hz / 750
