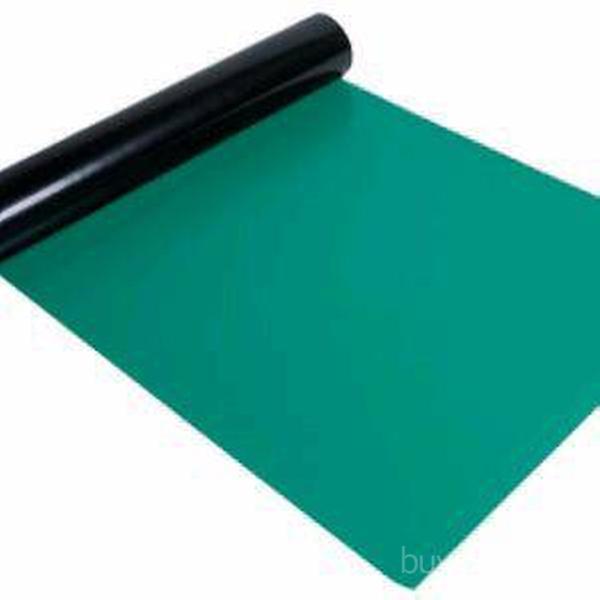

Antistatic (ESD) Table Rubber Mat

Antistatic rubber mat is produced by natural rubber which is mixed with conductivity agent and pigment, and it's composed with laminate 2 layer of co-extrude rubber sheet. Top layer is durable static dissipative rubber and bottom layer is durable non-skid conductive rubber. Those two layer are strongly stuck to be a layer of mat.

The surface resistivity of the mat allows static discharges to be quickly dissipated and this mat are ideal for most electronics and semiconductor applications as well as any static controlled area. And this mat is resistant to most chemicals, such as solvents, and it's eat-resistance to soldering iron temperature, solder fluxes. It also resists solder flux spatters. This non-curling mat is the most economic solution for a static safe work area.

Application

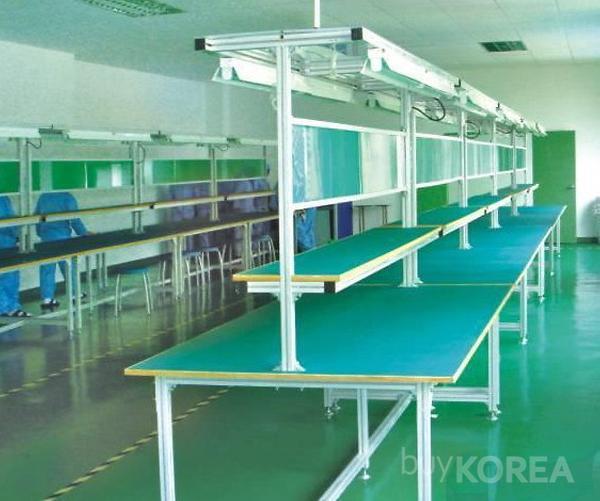

Installation on the worktable, workstation in the assembly line, lab, R&D center, etc.

ㅡ Protecting electric parts, PCB board from the static during assembling work and moving in the line.

Installation on the floor where need to attenuate the static that can be a risk element in that place.

ㅡ The working area where having a equipment of high spec spinning with plastic materials.

ㅡ The place involving the use of explosive, combustible materials and gas, medical center and

     fitness gym.

Specification

Thickness : 2mm

Width : 60, 70, 80, 90, 100, 120cm

Length: 10m for standard (other length are also available upon request after checking)

Color : Surface - Green, Blue, Brown, Grey, Black, etc.

           Bottom - Black

Surface Resistanve : Upper layer 10^7~10^9

                                  Bottom layer 10^4~10^5

Static Decay Time 5kv : Upper side 0.2 sec

                                     Bottom side 0.08 sec
