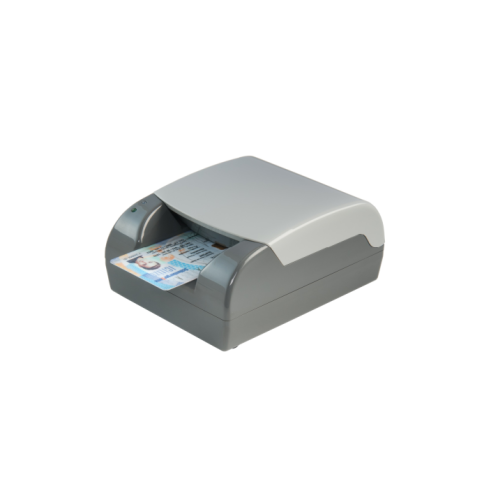

Card Scanner WIS 1000
Request For Quotation
Desktop ID Card Scanner
- Certification
-
- Award
-
- Shipping
-
- Modes of Transport EXW
- Payment
-
140+ Global Payments, trusted and secure payment provided by PayVerse.
Learn More
- Quantity
- MOQ : 1 Sets
Detailed Description
FEATURES
WIS-1000 is a Duplex ID card scanners with high speed processing.
Based on the patented CAD transport mechanism, WIS-1000 provides jitter free images.
Clamshell type open mechanism makes the maintenance easy.
SPECIFICATIONS
| Item | Specification |
| Document | |
| Size | ICAO7811 credit card size |
| Scanner | |
| Scanning Side | Duplex |
| Sensor | Color CIS, IR CIS (Option) |
| Scan Width | 54mm |
| Resolution | 200/300/400/600dpi |
| Color | 8bit Grey, 1bit B/W, 24bit True Color |
| Image Formats | TIFF G4, JPEG, BMP |
| Processing Speed | 4 seconds |
| Magnetic Stripe reader (Option) | |
| Track | Quad-Core ARM |
| Codes | ISO, AAMVA standard |
| Interface | |
| Type | USB 2.0 high spped (480Mbps) |
| Physical Dimensions | |
| Size | 114mm(W) x150mm(D) x68mm(H) |
| Weight | 0.7kg |
| Power | |
| Adapter Input | AC 100~240V, 50~60Hz, 1.75A |
| Adapter Output | DC24V, 1.75A |
| Environment | |
| Operating Temperature | 10~40°C |
| Operating Humidity | 10~85%, Non condensing |
