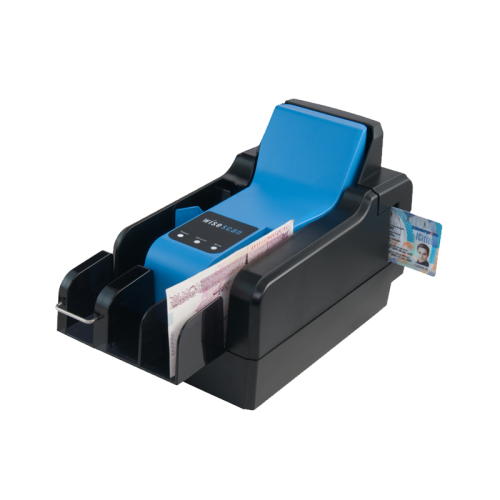

Check Scanner WiseScan200A
Request For Quotation
Check Scanner with card scanning capability
- Certification
-
- Award
-
- Shipping
-
- Modes of Transport EXW
- Payment
-
140+ Global Payments, trusted and secure payment provided by PayVerse.
Learn More
- Quantity
- MOQ : 1 Sets
Detailed Description
FEATURES
Industry-leading performance-to-size ratio with rapid scanning speeds of up to 90 dpm or 180 ipm
High-precision magnetic head for reading E13B or CMC7 MICR codelines
Integrated ISO 7810 ID-1 card image scan(Option)
Compact dimensions make it the ideal fit for teller counters and cashier windows
Built-in, pre-scan imprinter for audit trail requirements
User-friendly, quiet operation enables teller sales and service productivity
Three scanning modes - including 24-bit Color, Black and White, and Grayscale
Plug-and-play connectivity with Hi-Speed USB interface
SPECIFICATIONS
| Item | Specification |
| Document | |
| Height | 54~106mm |
| Length | 80~235mm |
| Weight | 60~120g/m2 |
| Scanner | |
| Scanning Side | Duplex |
| Sensor | Color CIS |
| Scan width | 104mm |
| Resolution | 100/200dpi |
| Color | 8bit Grey, 1bit B/W, 24bit True Color |
| Image Formats | TIFF G4, JPEG, BMP |
| Processing Speed | Max 90 dpm (180 ipm) with a 152 mm cheque |
| Printer | |
| Type | Inkjet 12 pin |
| Print Sequence | Printing before scanning |
| Print Side | Rear Side |
| Estimated Yield | 5~7M characters |
| Catridge | HP C6602A |
| MICR Reader | |
| Recognize codes | E13B and CMC7 |
| Read Head | Magnetic head with permanent magnet excitation |
| Interface | |
| Type | USB 2.0 High Speed (480Mbps) |
| Physical Dimensions | |
| Size | 155mm(W) x319mm(D) x175mm(H) |
| Weight | 2.8 kg |
| Power | |
| Adapter Input | AC 100~240V, 50~60Hz, 1.75A |
| Adapter Output | DC 24V/1.75A |
| Environment | |
| Operating temperature | 10~40°C |
| Operating Humidity | 10 ~ 85%, Non condensing |
