Passport Scanner, WiseScan420
Request For Quotation
Flatbed Type Passport Reader for MRZ Reading
- Certification
-
- Award
-
- Shipping
-
- Modes of Transport EXW
- Payment
-
140+ Global Payments, trusted and secure payment provided by PayVerse.
Learn More
- Quantity
- MOQ : 1 Sets
Detailed Description
FEATURES

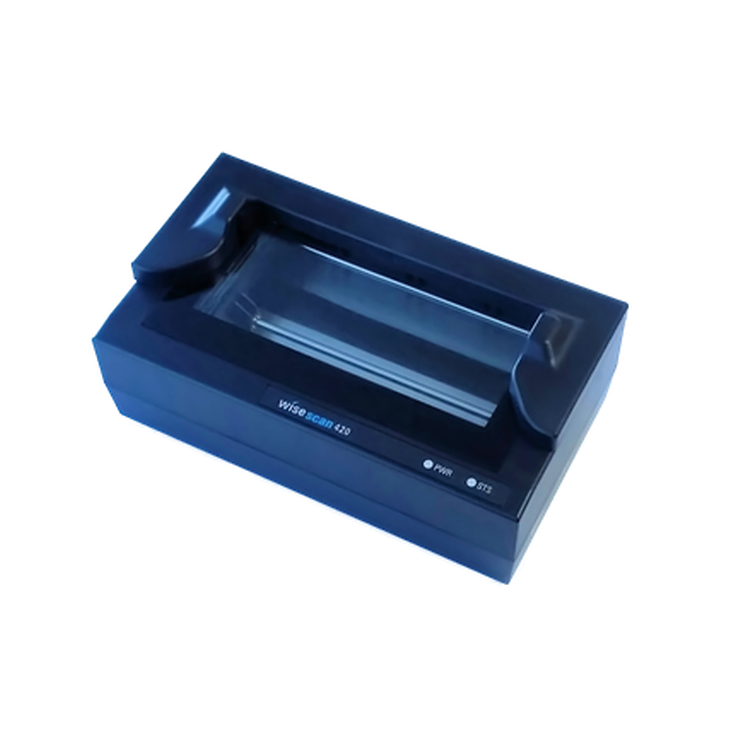

WiseScan420 is a compact passport scanner reading ICAO9303 standard MRZ on the bottom of a passport.
WiseScan420 captures the passport image without light reflection due to the built-in CIS lens blocking reflection.
The vivid and distorted-free images affect the exceptionally reliable OCR rates of MRZ data.
WiseScan420 supports four interfaces for various applcations : Serial, keboard, USB and USB serial.
SPECIFICATIONS
| Item | Specification |
| Document | |
| Width | Max 132mm |
| Height | Max 54mm |
| Standard | ICAO9303 specification part 1-4 |
| Scanner | |
| Scanning Side | Simplex |
| Illumination | RGB(470/530/620nm) IR(880nm) |
| Sensor | Color CIS |
| Resolution | 200/300/600dpi |
| Color | 8bit Grey, 1bit B/W, 24bit True Color |
| Image Formats | TIFF G4, JPEG, BMP |
| Scan Speed | One second for 200dpi color image |
| Interface | |
| USB | USB 2.0 High Speed (480Mbps) |
| Serial | RS232C, Serial over USB |
| Compliance | |
| EMI | FCC Class A, KCC |
| Material | RoHS |
| Software | |
| Barcode (Option) | 1D Codes, 2D PDF417, Data Matrix, QR |
| OCR | OCR B font, MRZ area reading |
| Physical Dimensions | |
| Size | 191mm(W) x112mm(D) x62mm(H) |
| Weight | 720g |
| Power | |
| Input | DC24V, 1.2A |
| Environment | |
| Operating | 0~32°C, 10 ~ 85%, Non condensing |
| Storage | -7~49°C, 10 ~ 98% RH, Non condensing |
