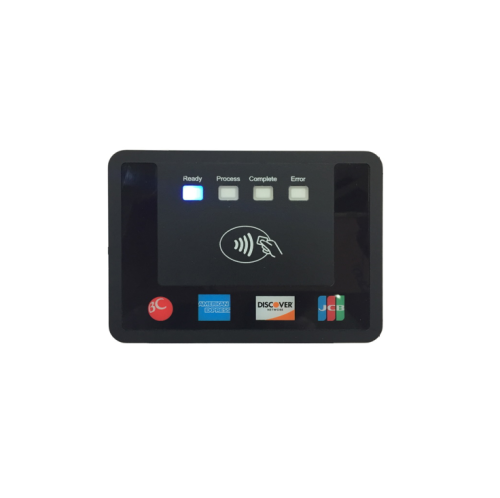

EMV Contactless Card Reader DP680
- Certification
-
- Award
-
- Shipping
-
- Lead Time3 ~ 5days
- Modes of Transport EXW,FOB
- Payment
-
140+ Global Payments, trusted and secure payment provided by PayVerse.
Learn More
- Quantity
- MOQ : 1 Pieces
Detailed Description
* DP-680
Contactless EMV L1 Certified
Contactless EMV L2 : Visa, Mastercard, UnionPay, Discover, JCB , Rupay certified

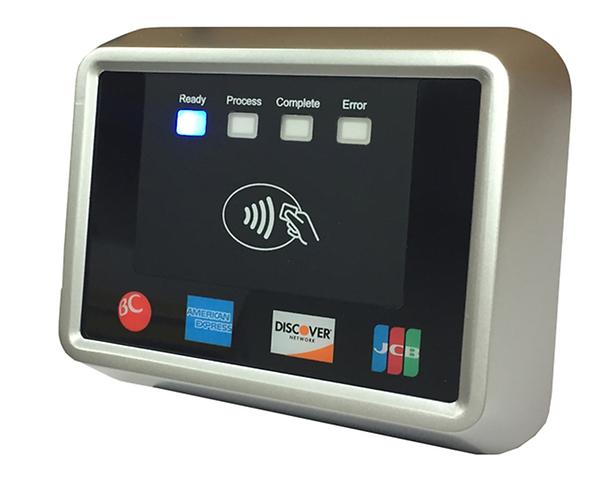

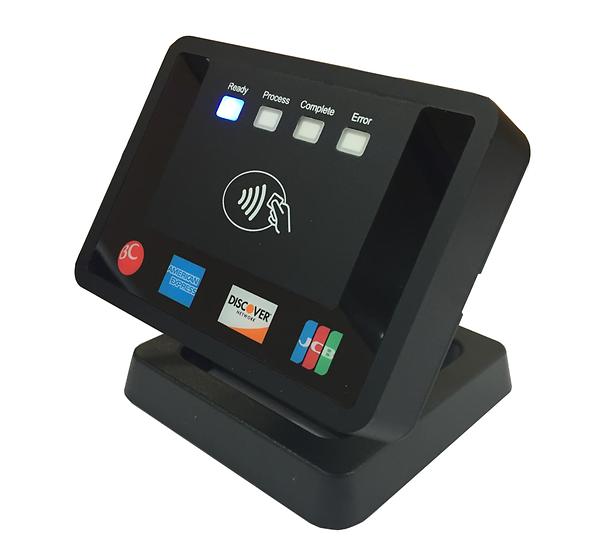

Multi-purpose design (Unattended/ Desk Standing)
IP65 Compliance
ATM, CDM, Kiosk, Parking, Retail, Transit, Validator
* Features
- Multi-protocol supportive
: ISO 14443, Mifare series, DESFire EV1, EV2, ISO 15693
- NFC (ISO 18092) full function support
- Multi-purpose design (Unattended type / Desktop standing)
- Contactless EV L1 Certified, Visa , Unionpay certified
* Application
- Contactless payment (Open and closed loop payment)
- NFC Application (mobile wallet - Samsung Pay, Apple Pay)
- Unattended machine (ATM, CDM, Kiosks)
- Transportation
* Benefits
- DUAL antenna support (e-TALL High way)
- Water proof housing design (IP65)
- Low energy consumption (5V Power / USB)
| CPU | ARM 32-bit Cortex-M4 |
| Program/ Data Memory | 1MBytes Flash / 192KBytes SRAM |
| Host Interface | USB 2.0 , Serial (RS-232) /TTL UART(115200bps) |
| Contactless Communication | ISO 14443 A/B, Mifare™, ISO 18092(NFC), DESFire, FeliCa®, ISO 15693 |
| Contact Communication | ISO-7816 SAM x 4EA (up to 6EA) |
| Frequency | 13.56 MHz |
| Contactless Speed | 106/212/424/848kbps (Up to 424kbps for NFC, FeliCa ) |
| Reading Distance | Maximum 5cm |
| Host Protocol | PC/SC, Proprietary |
| Input Power | DC5V / 200mA (RF ON with USB POWER) |
| Dimension | Body : 108 x 78 x 19 (mm), Deco : 135 x 105 x 20 (mm) |
| Display | 4 LEDs , Connector for external LEDs |
| Operating Temperature | -20 ~ 60 °C |
| Certification | CE, FCC, Contactless EMV L1 Certified EMV L2 – Visa, Union Pay , Mastercard, JCB, Discover certified |
