HI-TEMPERATURE MEDIUM FILTER
Request For Quotation

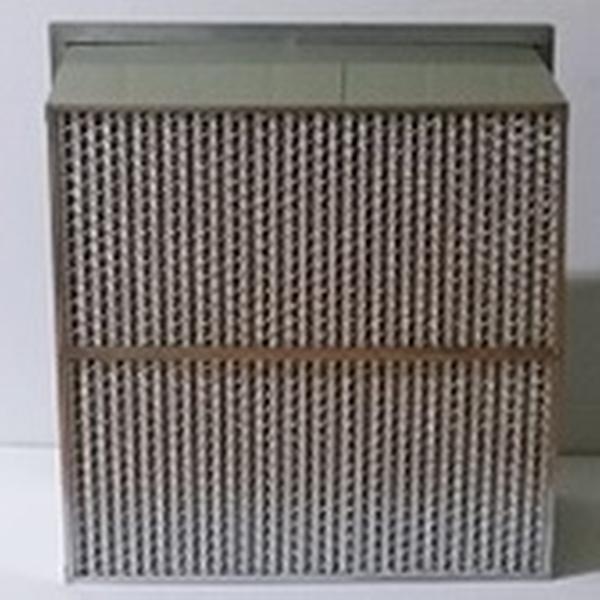

CLEAN CELL HI-TEMPERATURE MEDIUM FILTER
- Award
-
- Shipping
-
- Payment
-
140+ Global Payments, trusted and secure payment provided by PayVerse.
Learn More
Detailed Description
ADVANTAGES.
-High capacity & temperature
-Highly Strengthened Construction
-Wide surface Glass fiber media
-Longer durability
-Silicone-free Assembly
- Eff : EN 779:2012 / F6 (60~65%) / F7 (80~85%) / F8 (90~95%)
APPLICATIONS.
- For high temperature medium filter, considering of filter media selection for assembly is the most
important thing. Our High temp medium filter has excellent intensity & durability in high temp by
using glass fiber material more than general filters. Various customization of high temp filter is
available.
|
MODEL |
DIMENSION (mm) |
EFFICIENCY |
AIR FLOW CAPACITY ASHRAE 52.1 |
Pressure Loss (mmAq) |
Media Area (M²) |
WEIGHT (kg) |
|
INITIAL |
||||||
|
CP-F82000HT |
610 x 610 x 292 |
F8 95% |
56 |
15.0 |
14.2 |
9.5 |
|
CP-F8-1000HT |
610 x 305 x 292 |
28 |
15.0 |
7.0 |
6.0 |
|
|
HCP-F8-2000HT |
592 x 592 x 292 |
56 |
17.0 |
13.3 |
8.3 |
|
|
HCP-F8-1000HT |
592x 287 x 292 |
28 |
17.0 |
6.6 |
5.3 |
|
|
CP-F7-2000HT |
610 x 610 x 292 |
F7 85% |
56 |
14.0 |
14.2 |
9.5 |
|
CP-F7-1000HT |
610 x 305 x 292 |
28 |
14.0 |
7.0 |
6.0 |
|
| HCP-F7-2000HT | 592 x 592 x 292 |
56 |
15.5 |
13.3 |
8.3 |
|
| HCP-F7-1000HT | 592x 287 x 292 |
28 |
15.5 |
6.6 |
5.3 |
