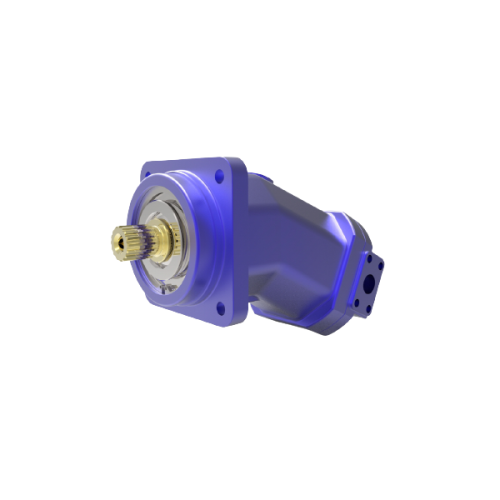

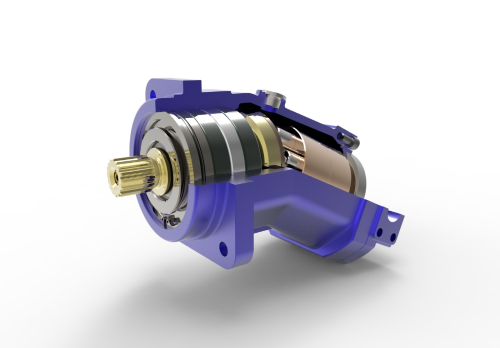

Motor Yoohan ENS Hydraulic Axial Piston Motor
- Certification
-
- Award
-
- Shipping
-
- Lead Time10 ~ 60days
- Modes of Transport EXW,FOB
- Payment
-
140+ Global Payments, trusted and secure payment provided by PayVerse.
Learn More
- Quantity
- MOQ : 1 Sets
Detailed Description
1. Specification
| Motor Size | 45cc | 55cc | 65cc | 80cc | 90cc | 107cc | 130cc | 160cc |
| Displacement [cm3/rev] | 44.2 | 54.6 | 65.0 | 80.3 | 90.4 | 106.6 | 129.5 | 160.1 |
| Max. pressure [bar] | 350 | 350 | 350 | 350 | 350 | 350 | 350 | 350 |
| Peak pressure [bar] | 420 | 420 | 420 | 420 | 420 | 420 | 420 | 420 |
| Max. speed [rpm] | 4,400 | 3,900 | 3,900 | 3,450 | 3,450 | 3,000 | 3,000 | 2,750 |
| Max. flow [l/m] | 194 | 213 | 253 | 276 | 312 | 320 | 388 | 440 |
| Peak. torque [N.m] | 295 | 364 | 434 | 536 | 604 | 712 | 865 | 1,070 |
| Max. torque [N.m] | 246 | 304 | 362 | 448 | 504 | 594 | 722 | 892 |
| Max. power [kw] | 111 | 121 | 145 | 158 | 178 | 183 | 226 | 256 |
| Weight [kg] | 21.0 | 21.0 | 28.8 | 28.8 | 40.5 | 40.5 | 56 | 56 |
| Connection Port | A : SAE 3/4“ (6000psi) | A : SAE 1“ (6000psi) | A : SAE 1 1/4“ (6000psi) | A : SAE 1 1/4“ (6000psi) | ||||
| B : SAE 3/4“ (6000psi) | B : SAE 1“ (6000psi) | B : SAE 1 1/4“ (6000psi) | B : SAE 1 1/4“ (6000psi) | |||||
2. Application
- Marine ship-building and off-shore equipment
- Construction equipment
- Industrial equipment
- Conveyance(lifting, hoist) equipments
- Agricultural machine equipment
- Mining equipment
- Airport and Railway equipment
3. Company Information
YoohanENS Co., Ltd. manufactures Planetary Reducer, Winch, Hydraulic component in the mechanical industry.
we are concentrated on research- development to provide a differentiated service based on accumulated technology and know-how.
YH ENS R&D tries to improve professional competence for high efficiency and especially guaranteed durability.
1) Planetary gear reducer for shipbuilding, construction equipment, and wind power generation.
2) Hydraulic Winch and Manual Hand Winch.
3) Hydraulic piston motor & pump for shipbuilding, construction equipment, and industrial machines.
4) Provide engineering solutions. (Product 3D design & solution & optimized design)

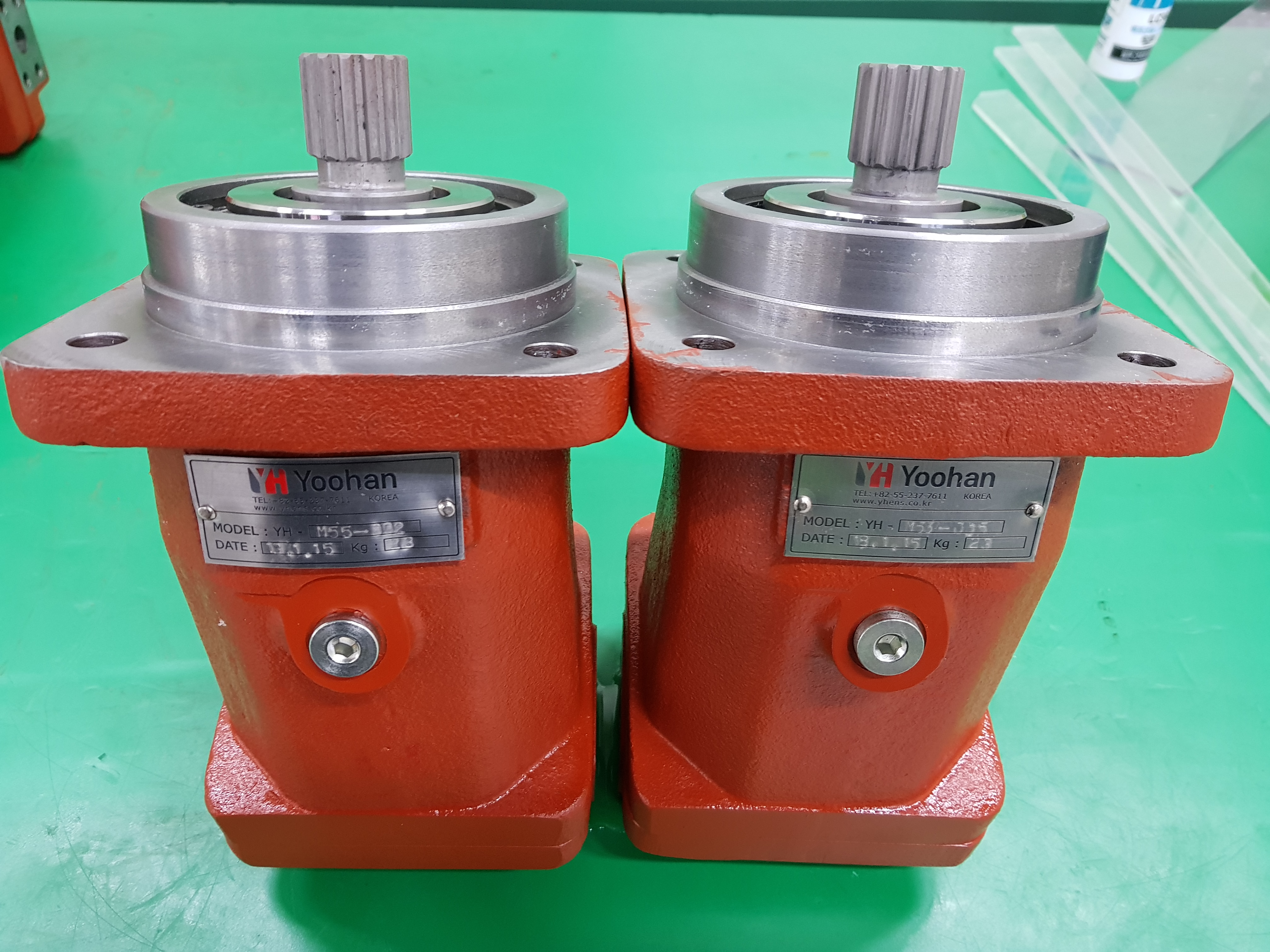

4. Photos
※Please send an inquiry via e-mail or website to get a reply quickly.
