1. DESCRIPTION

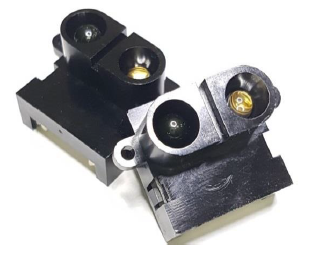

The KMED103C-Ax-85 is a Time of Flight based signal processing integrated circuit.

The sensor enables low cost, low power and long range optical distance sensing. The sensor combines the emitter and detector, IC in a single package.

2. Features

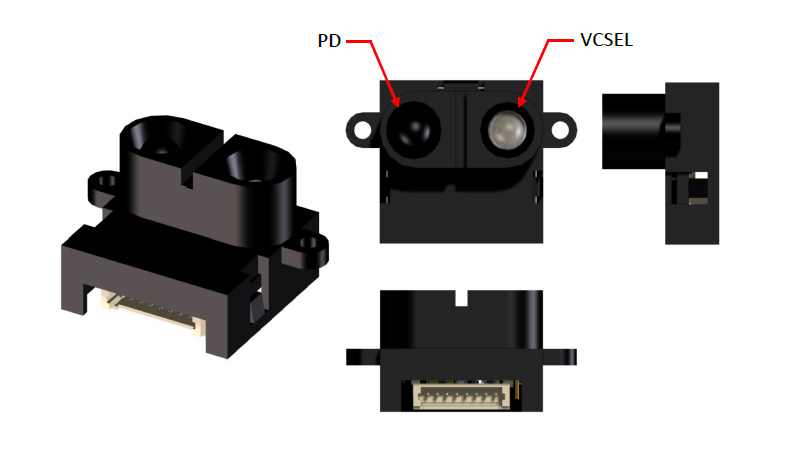

♦ 3 in 1 Package : Emitter and Detector, Signal processing IC

  - Emitter : VCSEL (Vertical Cavity Surface Emitting Laser) light source

  - Detector : PD (Photo Diode) sensor

  - Signal processing IC : TOF (Time of Flight) signal Processor

♦ Supply voltage range of 2.7V to 3.3V

♦ Modulation frequency of 4.5MHz

♦ Wide range distance type : 30 ~ 800cm

♦ Package size : 21 x 20 x 15mm ( 29.8 x 20 x 15mm)

♦ I2C interface supporting

♦ Eye Safety - Class 1

※ Emitter Condition - Eye Safety Class 1

3. Applications

♦ Robot Cleaner

♦ Human Body detector

♦ Drone

♦ CCTV Camera

♦ Door-lock

♦ AGV(Automated-guided vehicle)
