Opacity Meters OP 201 Diesel Engine Emission Gas Analyzer Portable
- Certification
-
- Award
-
- Shipping
-
- Payment
-
140+ Global Payments, trusted and secure payment provided by PayVerse.
Learn More
- Quantity
- MOQ : 1 ea
Detailed Description

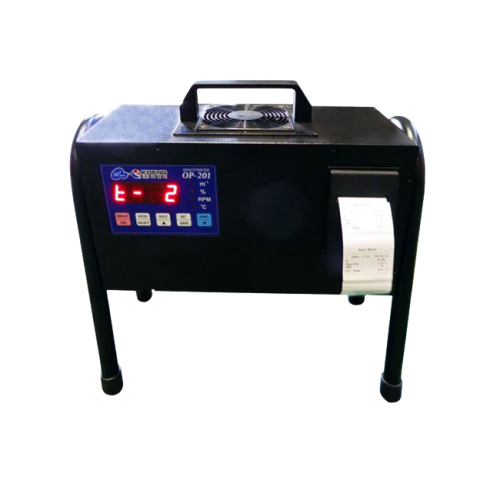

OP-201 Opacity Meter accurately detects, measures, and provides a visual read-out of the opacity of smoke emitted by diesel engines. In addition, it is an excellent indication of the combustion efficiency of the vehicle, encouraging maintenance for greater fuel efficiency.
Features
- Real-time smoke measurement(%, k [m-1])
- Portable and LED display
- Outstanding accuracy, stability and durability
- Response time of 0.5 second
- Smoke, SOF measurement
- Easy to use with handheld terminal(option)
- Built-in printer(option)
- RS232C PC program
- RPM/ Oil temp. meter(option)
- Auto-Zero/ Span calibration function
Installation and measurement
• Single unit of the analyzer covers the display and the printing of measured value that are recorded in its main body, and can be easily hand-carried.

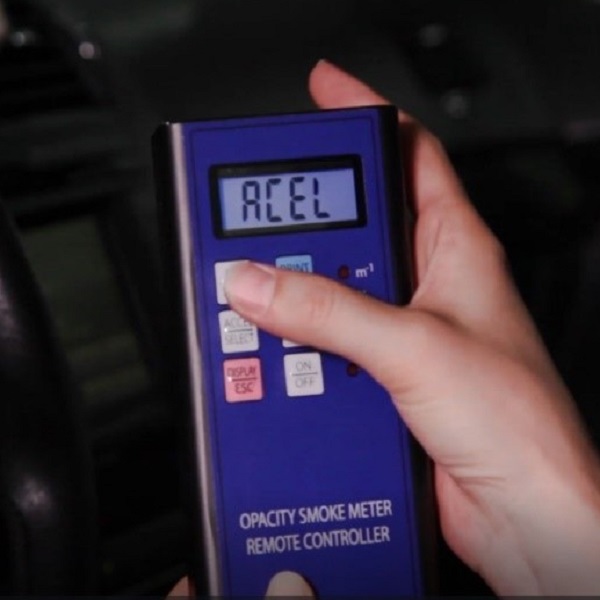

• No more than one tester operator behind the wheel would be enough to conduct the free acceleration test to obtain the measured value stepping on the accelerator and using wired or wireless handheld terminal.

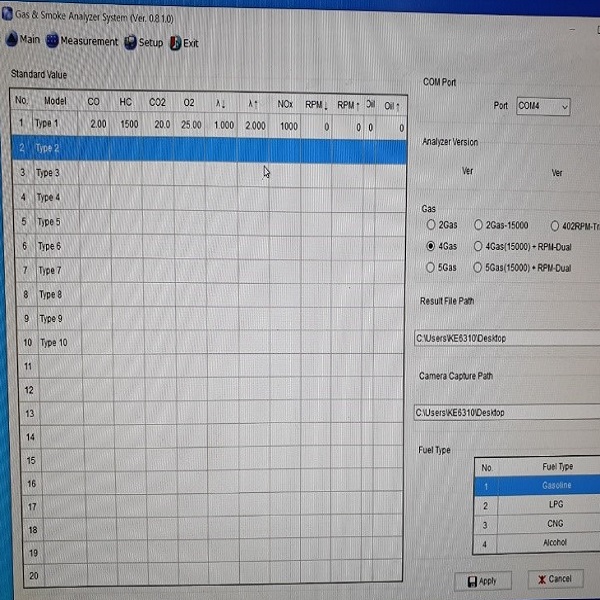

• In supply of diversified basic PC software PC program are provided in the way to cover regulations from various countries and also ramified for users’ purposes such as governmental agency’s use, inspection or repair of vehicle.
Specifications
| MODEL | OP-201 |
| Measuring items | Smoke opacity ( %, k [m-1] ) RPM (option), °C (option) |
| Principle | Light extinction method (Partial-flow sampling type) |
| Light source | Green LED(565nm) |
| Shell length & Inside diam | Length: 215mm, Inside diameter: 21mm |
| Detector | Photo diode |
| Range | 0.0~100.0% (0.00~21.42m-1 ) |
| Accuracy | Less than 1% |
| Warm-up time | 3~6 minutes |
| Display time | 4 times /sec |
| Power | 220V / 110V AC 50/60Hz |
| Temperature | -10~40℃ |
| Dimension | 450(W) x 200(D) x 245(425)(H) mm |
| Weight (Net/Gross) | About 7kg / 11kg |

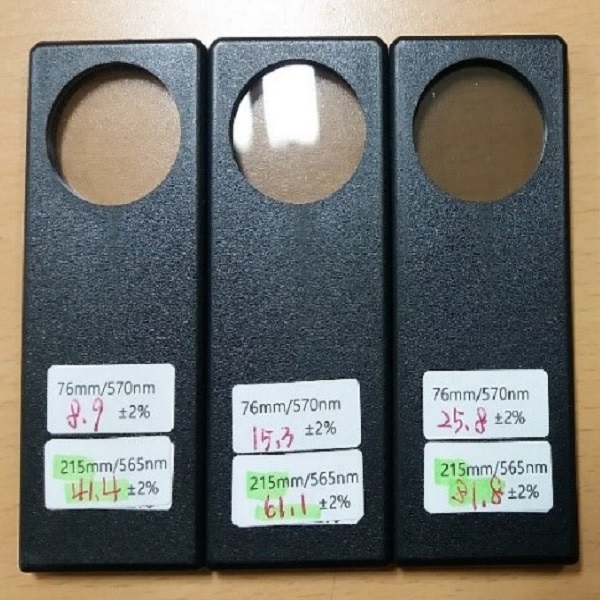

| Option | RPM/ Oil temp. meter, Handheld terminal, Built-in printer, Standard filter, PC program |
High quality machines made by KOENG in Korea
Qualified : CE, ISO 3930/OIML R-99: Class 1, ISO 9001
Service
- We have CS team to quickly provide the technical requirements requested by our customers.
(On/Off line services)
- Supported by our technical team with high skilled & various experiences .
Packing & Delivery
Packing : Export standard carton box or Export wooden box
Shipping port : Busan port, Korea
Delivery lead time : 3-4 weeks
Company information
KOENG - Experts in the automotive service equipment industry!
KOENG Co., Ltd. established in 1999 based on “Korea Engineering” company founded in 1994. It has developed Industrial balancing machine technology, Automotive service equipment, Industrial balancing machine, Urea solutions, Lubrication equipment, Car washing machine and Education &Training Equipment. We are a leading manufacturer and exporter for these ranges of machines in Korea and we will strive continuously to earn recognition as the global top equipment manufacturer.
We have obtained certificates of “ISO 9001”, “ISO 14001”, CE etc. We are also designated as “Next generation export enterprise”, “Export promising small & medium company”, “Technical Inno-biz company”, “Management innovation business company(Main-biz)”, and “Hi-Seoul Brand company” with reliability.
KOENG CO., LTD. is the Korean exporter and the market leader for supply, delivery, installation, training, calibration and maintenance of Automotive Service Equipment. We are providing top quality garage equipment products and services to car and commercial vehicle workshops to more than 40 countries from North America, South America, Asia, Oceania, Europe, Africa. For more inquiries, feel free to contact us by e-mail, phone or Skype, Whatsapp.
International partners & Export countries
Business partners
Wide range of customers all over the worlds since 1994.
( including vehicle inspection centers, private repair workshops, military, police, vocational schools and vehicle makers.)
FAQ
Q1.How is quality ensured?
A. All our processes strictly adhere to ISO-9001 procedures.
And we have a one year quality warranty . If the product does not work property as described, and the problem is proven to be at our fault, we will provide exchange services for the same specific item.
Q2.Do you make customerized parts?
A. Yes, you can send us samples and we can develop the new models especially for you.
Q3.What is your Minimum Order Quality?
A. Basically 1 unit is available.
Q4.What about delivery time?
A. Generally, 3-4 weeks. (Some items : 1 week / 4-6 weeks depending on items.)
Q5.What’s your agency distributor policy ?
A. We have some different policies according to target markets, So please send emails for detailed discussions or talk face to face.
Certificate & Award
CE, ISO 9001 & ISO 14001, OIML & ISO , Patents , Brand –KOENG
We are also designated as “Next generation export enterprise”, “Export promising small & medium company”, “Technical Inno-biz company”, “Management innovation business company(Main-biz)”, and “Hi-Seoul Brand company” with reliability.
