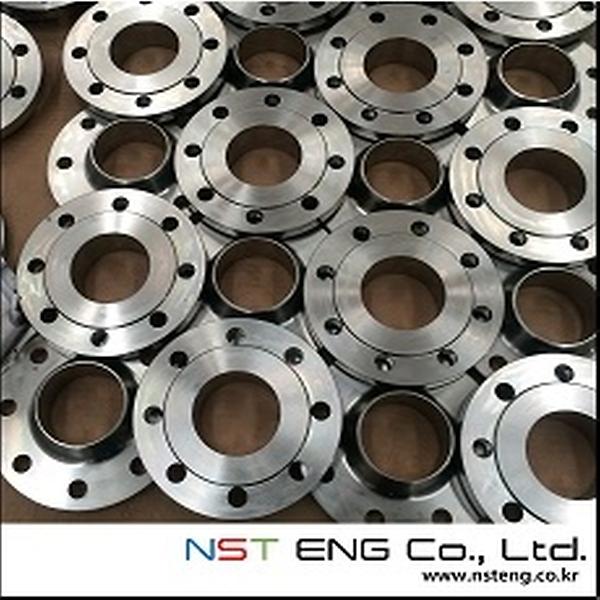

FLANGES, OLTES, GIRTH FLANGES, INSULATION JOINTS
- Award
-
- Shipping
-
- Payment
-
140+ Global Payments, trusted and secure payment provided by PayVerse.
Learn More
Detailed Description
Product Detail Information
Form : Slip-on, Weld Neck, Blind, Lap Joint, Threaded, Socket Weld, Reducing, Orifice, Screwed, Reducing, Spectacle, Ring Joint
Pressure rating : 150LBS, 300LBS, 400LB, 600LBS, 900LBS, 1500LBS, 2500LBS, PN 6, PN10, PN16, PN25, PN40, PN64, PN100, PN160, PN250, PN320, PN400
Dimensions : ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48, API 605, AWWA, BS10-1962/BS3293-1960/BS4504 Sec. 3.1/1989
Material :
Carbon Steel
Standard ASTM / ASME A/SA 105 / 350 LF 2
Stainless Steel
Standards ASTM / ASME A/SA 182
Steel Grade: F 304, 304L, 304H, 309S, 309H, 310S, 310H, 316, 316TI, 316H, 316L, 316LN, 317, 317L, 321, 321H, 347, 347H, 904L.
Alloy Steel
Standard: ASTM / ASME A/SA 182
ASTM A182 F1, F11, F12, F22, F5, F9, F91.
Nickel Alloy
Standard: ASTM / ASME SB 564 / 160 / 472
Grade: UNS 2200 (NICKEL 200), UNS 4400 (MONEL 400), UNS 8825 INCONEL (825), UNS 6600 (INCONEL 600), UNS 6601 (INCONEL 601), UNS 6625 (INCONEL 625), UNS 10276 (HASTELLOY C 276), UNS 2201 (NICKEL 201), (ALLOY 20 / 20 CB 3)
Packing : Wooden Boxes, Plastic Bags, or as per Customer’s Requests
Special sizes and specifications other than above can be manufactured on request
Chrome Flanges
|
Grade |
Pipe |
Tube |
Flanges |
Bar |
Forgings |
|
Cr-Mo Grade P-1 |
A335P1 |
A213T1 |
A182F1 |
A387 GRADE 1 |
A182F1 |
|
Cr-Mi Grade 5 |
A335P5 |
A213T5 |
A182F5 |
A387 GRADE 5 |
A182F5 |
|
Cr-Mi Grade 9 |
A335P9 |
A213T9 |
A182F9 |
A387 GRADE 9 |
A182F9 |
|
Cr-Mi Grade 11 |
A335P11 |
A213T11 |
A182F11 |
A387 GRADE 11 |
A182F11 |
|
Cr-Mi Grade22 |
A335P22 |
A213T22 |
A182F22 |
A387 GRADE 22 |
A182F22 |
|
Cr-Mi Grade91 |
A335P91 |
A213T91 |
A182F91 |
A387 GRADE 91 |
A182F91 |
Seamless Steel Flanges
Size: 1/8” – 36”
|
Grade |
Pipe |
Tube |
Flanges |
Plate |
Bar |
Forgings |
UNS.No. |
|
Stainless 304 |
A312 |
A213/249/269 |
A182 F304 |
A240 |
A276/479 |
A182 |
S30400 |
|
Stainless 309 |
A312 |
A213/249/269 |
A182 F309 |
A240 |
A276/479 |
A182 |
S30900 |
|
Stainless 310 |
A312 |
A213/249/269 |
A182 F310 |
A240 |
A276/479 |
A182 |
S31000 |
|
Stainless 316 |
A312 |
A213/249/269 |
A182 F316 |
A240 |
A276/479 |
A182 |
S31600 |
|
Stainless 317 |
A312 |
A213/249/269 |
A182 F317 |
A240 |
A276/479 |
A182 |
S31700 |
|
Stainless 321 |
A312 |
A213/249/269 |
A182 F321 |
A240 |
A276/479 |
A182 |
S32100 |
|
Stainless 347 |
A312 |
A213/249/269 |
A182 F347 |
A240 |
A276/479 |
A182 |
S34700 |
|
Stainless 410 |
A268 |
A213/249/269 |
A182 F410 |
A240 |
A276/479 |
A182 |
S41000 |
Carbon Flanges
Size: 1/8” – 36”
|
Grade |
Pipe |
Fittings |
Flanges |
Plate |
Forgings |
|
Carbon Steel |
A53 |
A234 WPB |
A105 |
A36 |
A105 |
|
Carbon Steel |
A106B |
A234 WPB |
A105 |
A36 |
A105 |
|
Carbon Steel |
A106C |
A234 WPC |
A105 |
A36 |
A105 |
Low Temperature Flanges
Size: 1/8” – 36”
|
Grade |
Pipe |
Tube |
Fittings |
Flanges |
Bar |
Forgings |
|
Low Temp C.S Gr.1 |
A333 Gr.1 |
A334 Gr.1 |
A420WPL1/6 |
A350LF2 |
A516 |
A350LF2 |
|
Low Temp C.S Gr.3 |
A333 Gr.3 |
A333 Gr.3 |
A420WPL3 |
A350LF3 |
A516 |
A3530LF3 |
Duplex Flanges
Size: 1/8” – 36”
|
Grade |
Pipe |
Tube |
Fittings |
Plate |
Bar |
Forgings |
UNS No. |
|
Duplex 2205 |
A790 |
A789 |
A815 |
A240 |
A276/A479 |
A182 |
S31803/S32205 |
Nickel Flanges
Size: 1/2” – 12”
|
Grade |
Pipe |
Tube |
Fittings |
Flanges |
Plate |
Bar |
Forgings |
UNS No. |
|
6 Moly & Alloy & AL6XN |
SB-312 |
|
|
SB-269 |
SB-688 |
SB-691 |
N08367 |
|
|
|
SB-358 |
|
|
SB-270 |
|
|
|
|
|
Monel 400 |
SB-165 |
SB-165 |
|
SB-366 |
SB-127 |
SB-164 |
SB-564 |
|
|
|
SB-829 |
SB-163 |
|
|
|
QQ-N-281 |
|
|
|
|
SB-725 |
SB-730 |
|
|
|
|
|
|
|
|
SB-775 |
SB-751 |
|
|
|
|
|
|
|
Inconel 600 |
SB-167 |
SB-163 |
SB-366 |
SB-168 |
SB-166 |
SB-564 |
|
|
|
|
SB-829 |
SB-516 |
|
AMS-540 |
AMS-5665 |
AMS-5665 |
|
|
|
|
SB-519 |
SB-751 |
|
|
|
|
|
|
|
|
SB-775 |
AMS-5580 |
|
|
|
|
|
|
|
Inconel 625 |
SB-444 |
SB-444 |
SB-366 |
SB-443 |
SB-446 |
SB-564 |
N06625 |
|
|
|
SB-829 |
SB-829 |
|
AMS-5599 |
AMS-5666 |
AMS-5666 |
|
|
|
|
SB-775 |
SB-775 |
|
AMS-5869 |
AMS-5837 |
|
|
|
|
|
SB-705 |
SB-704 |
|
|
|
|
|
|
|
|
|
AMS-5581 |
|
|
|
|
|
|
|
Incoloy 800H |
SB-407 |
SB-407 |
SB-366 |
SB-409 |
SB-408 |
SB-564 |
N08810 |
|
|
|
SB-289 |
SB-829 |
|
AMS-5877 |
AMS-5766 |
AMS-5766 |
|
|
|
|
SB-514 |
SB-515 |
|
|
|
|
|
|
|
|
SB-775 |
SB-751 |
|
|
|
|
|
|
|
Incoloy 800HT |
SB-407 |
SB-407 |
SB-366 |
SB-409 |
SB-408 |
SB-564 |
N08811 |
|
|
|
SB-829 |
SB-829 |
|
AMS-5877 |
AMS-5766 |
AMS-5766 |
|
|
|
|
SB-514 |
SB-515 |
|
|
|
|
|
|
|
|
SB-775 |
SB-751 |
|
|
|
|
|
|
|
Titanium Gr.2 |
SB-337 |
SB-337 |
SB-363 |
SB-265 |
SB-348 |
SB-381 |
|
|
|
|
SB-338 |
SB-338 |
|
AMS-4902 |
F-67 |
|
|
|
|
|
|
|
|
|
AMS-4921 |
|
|
|
|
Hastelloy C276 |
SB-622 |
SB-622 |
SB-366 |
SB-575 |
SB-6574 |
SB-564 |
|
|
|
|
SB-619 |
SB-516 |
|
|
|
|
|
|
|
|
SB-775 |
SB-626 |
|
|
|
|
|
|
|
Stainless 254 SMO |
|
|
|
|
|
|
|
SB-564 |
