Detailed Description

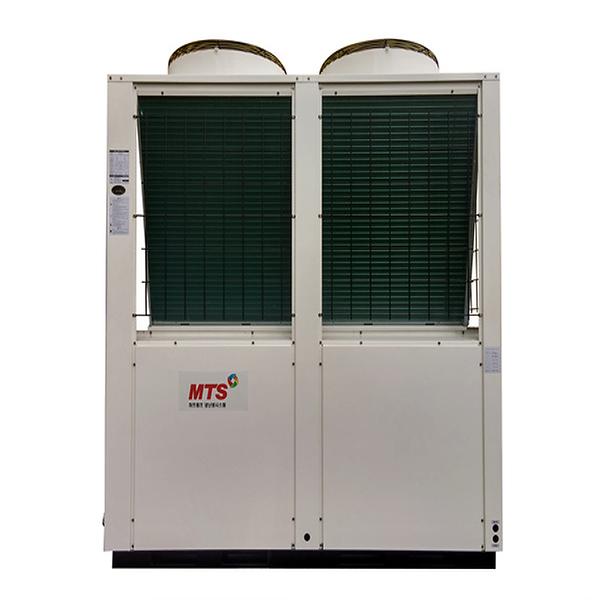

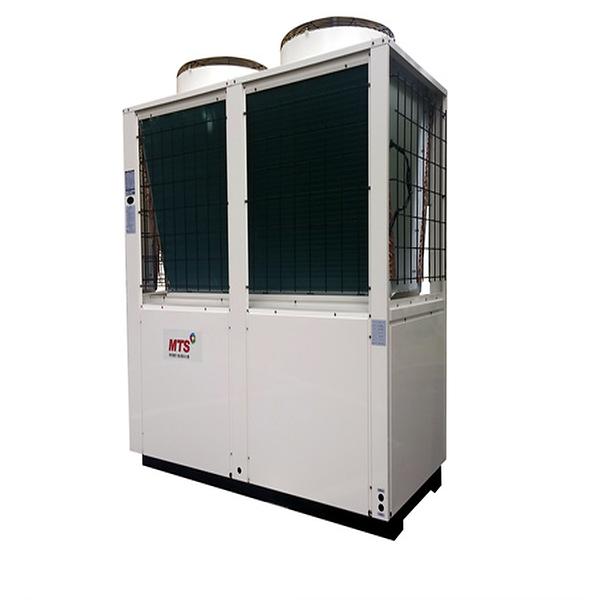

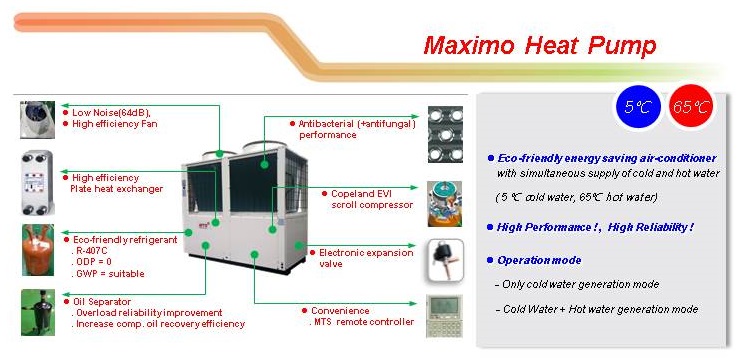

MTS Maximo Heat Pump(MHP-M0065-01)
Heat pump is to use a refrigeration cycle's principle and a mechanism converted from low temperature's heat source (air, underground water, waste heat) to high temperature's heat (indoor air or heat water).
Manufacturing Country : South Korea
|
Section |
MHP – M0065 - 01 |
||
|
Power specification |
Φ, wire, V, Hz |
3, 4, 380, 60 |
|
|
Rated cooling (air) |
Capacity |
kW |
52.0 |
|
Powerconsumption |
kW |
20.0 |
|
|
COP |
- |
2.60 |
|
|
Rated cooling (water) |
Capacity |
kW |
61.7 |
|
Powerconsumption |
kW |
13.7 |
|
|
COP |
|
4.50 |
|
|
Rated heating (water) |
Capacity |
kW |
65.0 |
|
Powerconsumption |
kW |
19.2 |
|
|
COP |
- |
3.65 |
|
|
Compressor |
Type |
- |
EVI SCROLL |
|
Quantity |
EA |
2 |
|
|
Refrigerant |
Type |
- |
R-407C |
|
Ref. charge |
Kg |
26.0 |
|
|
Evaporator (air) |
Type & Material |
- |
Aluminum fin |
|
Fin type |
- |
Antimicrobial WAVE SLIT fin |
|
|
Evaporator (water) |
Type |
- |
Plate heat exchanger |
|
Connection pipe |
- |
50A / 50A |
|
|
Condenser Fan |
Type |
- |
AC motor |
|
Quantity |
EA |
2 |
|
|
Water flow rate |
lpm |
170(cooling)/220(heating) |
|
|
Control of refrigerant |
- |
Electronic expansion valve |
|
|
Weight |
Kg |
730 |
|
|
Size |
W x D x H |
mm |
1,000 x 2,020 x 2,160 |
|
Earth leakage breaker |
A |
75 |
|
|
Max. water supply temperature |
℃ |
65 |
|
|
Usage |
- |
Hot water / cold water |
|
|
Controller |
|
Micom automatic control |
|
|
(note) 1. Rated cooling capacity (air) : DB(35℃) / WB(24℃), Cooling inlet/flow(12℃/150LPM) 2.Rated cooling capacity (water) : 15℃~ 30℃, Cooling inlet/flow(12℃/170LPM), Heating inlet/floe(25℃/220LPM) 3.Rated heating capacity (water) : 15℃~ 30℃, Cooling inlet/flow(5℃/170LPM), Heating inlet/floe(40℃/220LPM) ★ Water heat source COP is calculated considering heat pump and power consumption correction value of pump |
|||
