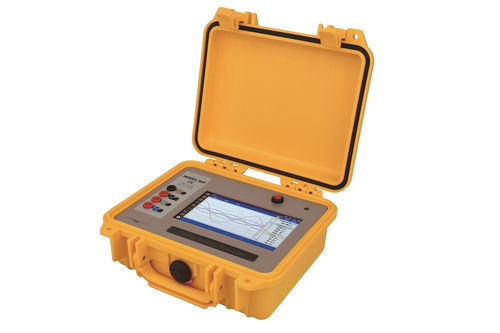

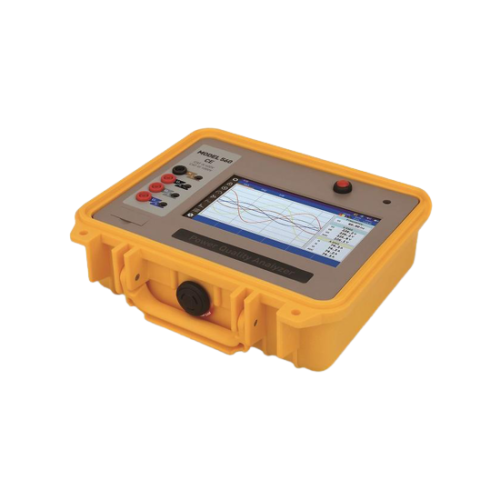

TEKON560 power Quality analyzers are handheld instruments that accurately measure, diagnose, and analyze electrical power characteristics and parameters of power distribution and communication-related systems. By incorporating a 7-inch wide touch screen into its lightweight design, they maximize user convenience, allowing the user to perform power quality logging and analysis.
The system allows you to quickly and effectively perform measurements, data storage, analysis, and output via the 7“ wide LCD screen.

[FEATURE]

• Measuring the quality of power and electrical parameters at the same time
• Displaying how to conduct wiring and measurement on the touchscreen
• 7“ wide LCD making easier measurements and analysis
• Providing touch functions for the user to search/archive menus via intuitive UI
• Enabling the user to download, view and analyze stored data, and compile reports
• Providing flexible coil clamp (Rogowski coil) as a basic current sensor
• Captures three-phase power quality measurements
• Simultaneously measures active/reactive/apparent power, power factor, RMS voltage/current, phase angle, and neutral line current
• Supports a variety of wiring such as single-phase 2-wire, single-phase 3-wire, three-phase 3-wire, and three-phase 4-wire
• Displays voltage and current in waveforms and phase diagram
• EN50 160 Report Output
• Environment Temperature and humidity measurement
