KGC XR M4s Made in korea

design the technology

By fusing the beauty of straight lines and curves with technology such as structural rigidity, fatigue strength, heat dissipation and bridge pipe insert technology, the value of ownership is added.

smart high strength structure with radiant heat

It is a smart design that combines high performance, heat dissipation, rigidity, and durability in a harmonious combination of straight lines and curves, and is effective against high pressure and heat generated during braking.

Light weight aluminum alloy mono block

This is the most preferred monoblock type brake caliper for high-performance automobiles.

Monoblock calipers with a single body are optimal for light weight and high performance brakes with excellent structural rigidity and performance.

hydraulic pressure line with optimized safety and performance

By integrating the bridge pipe connecting the facing cylinders into a built-in shape, there is no risk of rupture, corrosion, or leakage of the exposed pipe, and the efficient brake fluid line optimizes the pedal strength and control function.

ventilated stainless steel piston

The stainless steel piston has a low thermal conductivity of about 1/10 compared to aluminum, and the heat transfer ratio inside the caliper is low, and the air cooling effect through the heat dissipation design suppresses vapor lock.

dome back stainless steel piston

High-strength stainless material with excellent corrosion resistance and heat resistance and a dome structure with excellent torque transmission provide high braking force and quick response.

dust cover

Brake calipers for public road require long-term durability in various environments.

The dust cover located at the inlet of the cylinder suppresses the inflow of contaminants into the cylinder to prevent the caliper from deteriorating performance and shortening its lifespan.

pad spring

Appropriately elastic pad spring suppresses pad vibration and noise, and alleviates disc and pad interference that occurs in deep corners and rough road surfaces.

heat Resistance & anti-corrosion finishing

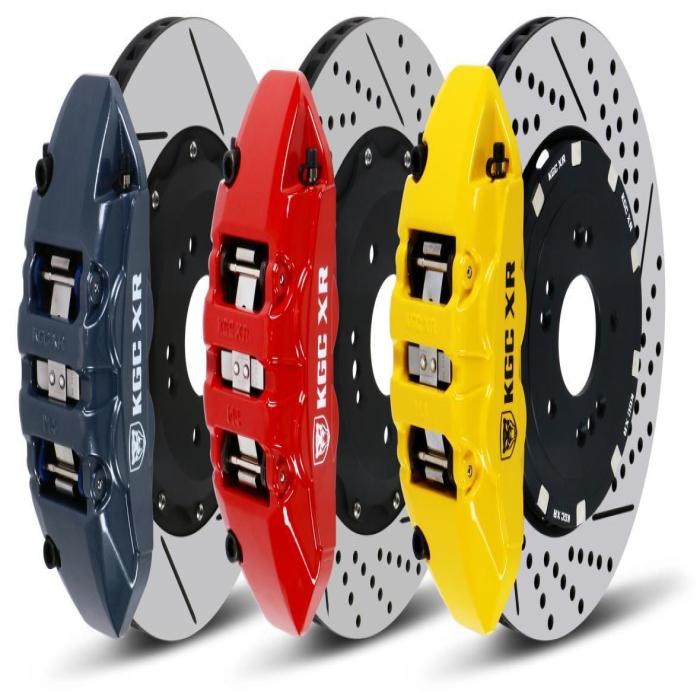

COLOR - (coral red), (banana yellow), (indigo aura) .

High heat-resistance powder coating and clear on anodizing to enhance corrosion resistance and enhance appearance.

The basic colors are coral red with a hint of pink, refreshing banana yellow and a dark gray indigo aura with a hint of blueish purple.

Korea's patented brake technology

The monoblock calipers of KGC brakes are ‘MADE IN KOREA’ brakes that have been patented in Korea, the United States, China, and Taiwan, and have also obtained tuning parts certification in accordance with the Automobile Management Act.

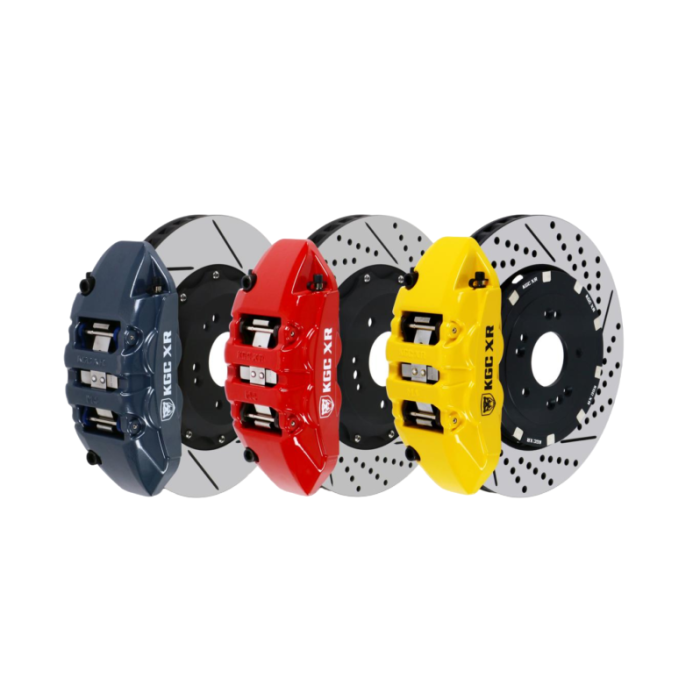

KGC M4s 4POT Caliper features

•  Lightweight aluminum 4 pot brake calipers.
•  It is a monoblock caliper with a compact and strong structure without any unnecessities.
•  Technology is applied to maintain genuine pedal power.
•  It's optimized for 355mm, 32T discs and 15T pads.
•  Pad compatibility (for Genesis Coupe Brembo 4 Pot front wheel) is high.
•  Expensive stainless piston is applied as standard.
•  With powder coating, beautiful color is maintained for a long time.
•  18-inch or larger wheels can be installed.
•  It can be installed without a hub space from about 45 wheel offset.
