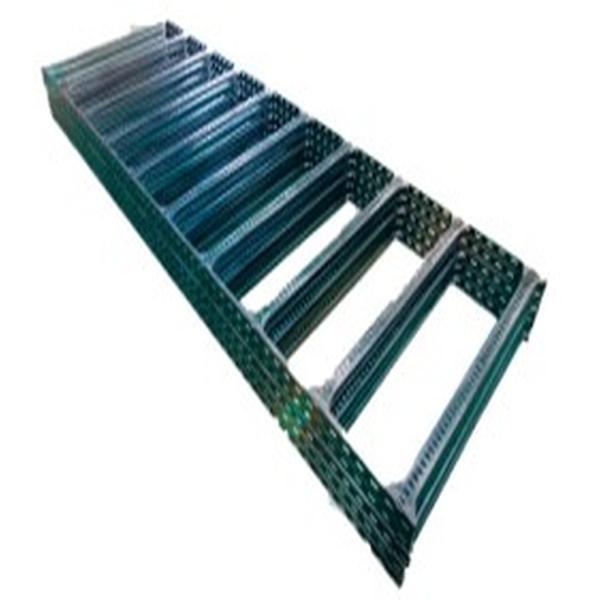

Diet Tray, cable tray to support or protect cables line, all-in-one type
- Certification
-
- Award
-
- Shipping
-
- Payment
-
140+ Global Payments, trusted and secure payment provided by PayVerse.
Learn More
Detailed Description
* Diet Tray ?
- This is support structure made of metal materials in order to support or protect cables line,
When to route the electronic power,telecommunication&instrumentation cables.

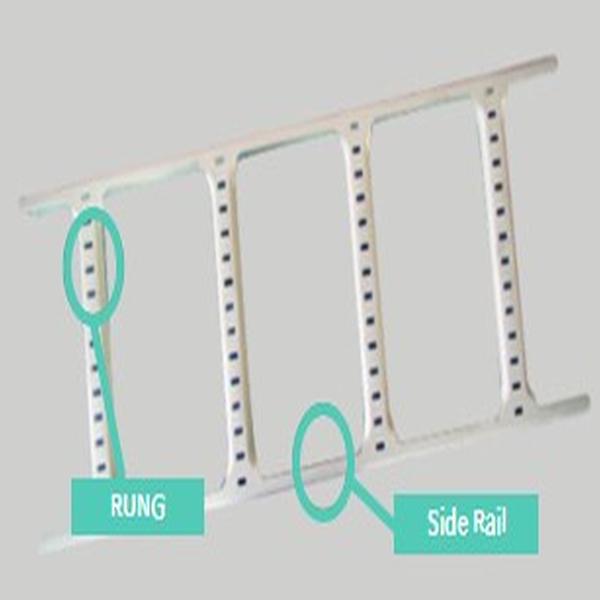

- Diet tray is composed of Side Rail and Rung.
- Non-welding and All-in-one type
* Expectation Effect
- Cost Reduction
- Eco-Friendly
- High Quality
- Mass Production

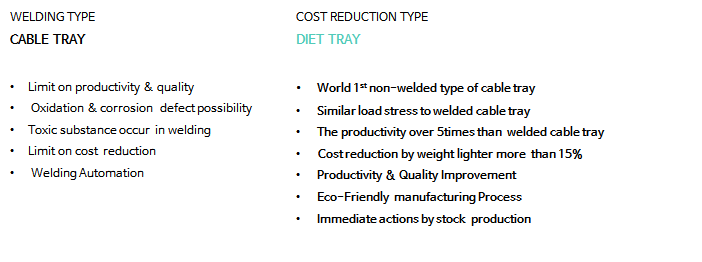

* Comparison of Steel Tray vs Aluminum Tray
* Product Specification
[1] Marine Tray
- Material: SS400/ Max 3.2T
SUS/ Max 3.0T
- Size: W100~900/ H40, H50
- Length: Max L6,000
[2] Ladder Tray
- Material: SS400/ Max 3.2T
SUS/ Max 3.0T
- Size: W200~900/ H100, H150
- Length: Max L6,000
[3] Channel Tray
- Material: SS400/ Max 1.6~2.3T
SUS/ 1~2T
- Size: W50~200/ H50, H75
- Length: Max L6,000
