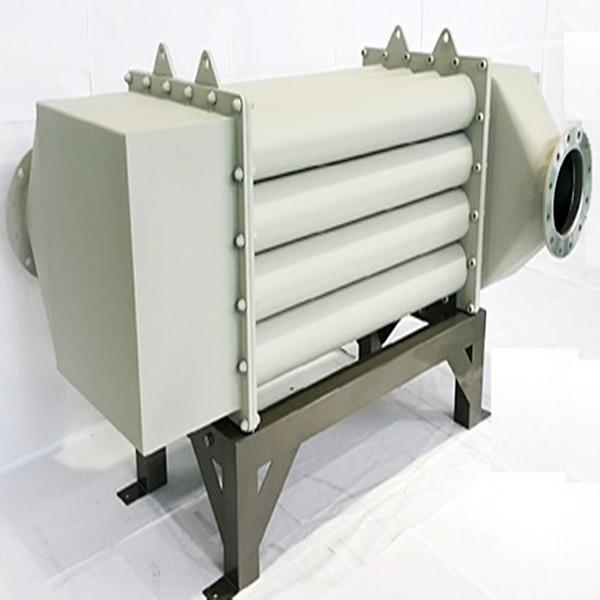

1. Disinfection Chamber
Each lamp has an individual disinfection chamber and
the length and diameter of disinfection chamber can be
designed according to the length and ultraviolet output
of lamps used in the disinfection chamber. Therefore,
there is no blind spot for ultraviolet penetration and
the length of disinfection chamber does not change,
which will maximize disinfection capability and achieve
100% disinfection. It can be applied to fresh water and
seawater, including STS-304, STS-316L and Duplex ss.

2.Entry and exit areas, where entry and exit are installed
The whole lamps can be applied to disinfection as they
are not affected by the increase of pipe size since the
entry and exit are separated in a disinfection chamber.
In addition, there is no blind spot, so it is possible to
manufacture high volume disinfection equipment without
losing any disinfection capability.

3.UV LAMP
Philips, Sankyo, Light source,
Snxin, etc.
Maintenance is easy as, low and
high output universal lamps can
be used.

4.Sleeve Cleaning System
The surface of quartz pipes can be
cleaned and maintained without
mechanical cleaning equipment as
OH-radical, which is generated by
photo catalyst ultra-thinly coated
on the surface of quartz pipes,
decomposes contaminants.
