CODM 8104 Series (Heat insulation cover Automatic Geared motor)
- Award
-
- Shipping
-
- Payment
-
140+ Global Payments, trusted and secure payment provided by PayVerse.
Learn More
Detailed Description
[ Specification ]

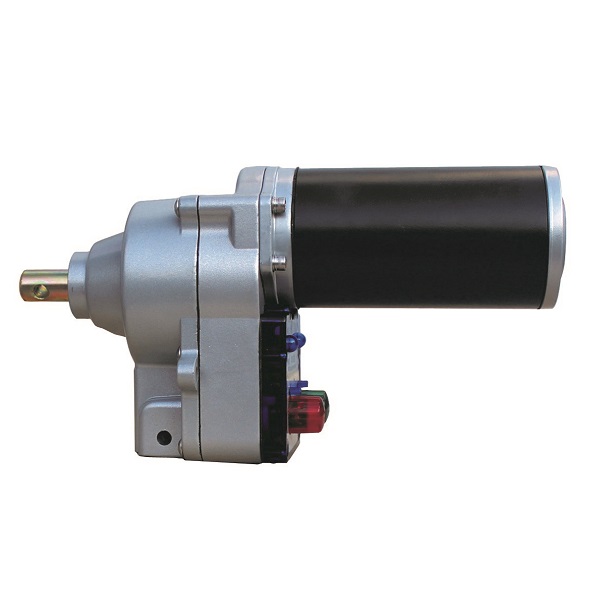

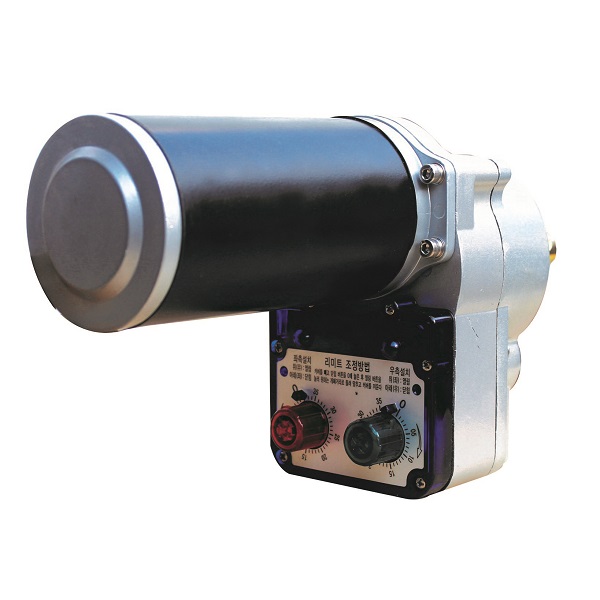

CODM 8104 Series (Heat insulation cover Automatic Geared motor)
The first Planet Helical type Geared motor in the world (Patent NO. 0870193)
Heat insulation cover - Automatic opening & shutting Geared motor
Low noise, Low oscillation, Minimum power consumption
Maximum power driveline, Easy opening & shutting distance setting
|
Product Name |
Cyber Star 1 |
Cyber Star 2 |
|
|
Model Name |
CODM 81044 |
CODM 81048 |
|
|
Use |
Heat insulation |
Heat insulation |
|
|
Rated Voltage |
DC 24V |
DC 24V |
|
|
Current (Power) |
5.0A (120W) |
5.0A (120W) |
|
|
Max .Current (Power) |
8.5A (200W) |
8.5A (200W) |
|
|
Output shaft RPM |
1.5 RPM |
1.5 RPM |
|
|
Redution Rate |
1 / 1400 |
1 / 1400 |
|
|
Torque |
20 Kg.cm |
20 Kg.cm |
|
|
Rolling height |
4 m (Ø32) |
8 m (Ø32) |
|
|
Pipe length |
100 m |
60 m |
|
|
Weight |
5.8 Kg |
5.8 Kg |
|
[ Company introduction ]
Chung-Oh Engineering Co., Ltd. is the biggest and specialized company in agricultural automatic system in Korea.
Chung-Oh Engineering supply agricultural automatic system, multi environment-control system and the solution for green (glass) house by it’s specific geared motors and control system.
As the top company in greenhouse material, export it’s goods to world - North America, Spain, Mexico, Uzbekistan, Japan and China.
