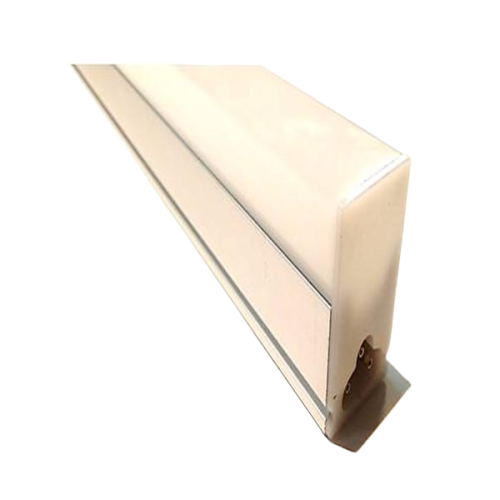

LED T5 for 010V 110V Dimming
- Award
-
- Shipping
-
- Products Shipped From Incheon
- Payment
-
140+ Global Payments, trusted and secure payment provided by PayVerse.
Learn More
- Quantity
- MOQ : 100 ea
Detailed Description
+
[Product Description]
| DESCRIPTION | EL-T5-10V-5W | EL-T5-10V-10W | EL-T5-10V-15W | EL-T5-10V-20W |
| Nominal Wattage | 5W | 10W | 15W | 20W |
| Nominal Voltage | AC200~240V | |||
| Nominal Current | 27mA | 50mA | 75mA | 95mA |
| Power Factor | PF > 90% | |||
| Dimming Method | 0-10V / 1-10V ( Isolated from LED load and AC input ) | |||
| Ambient Temperature | -20 ~ +40 ℃ | |||
| Luminous flux | 450lm | 900lm | 1350lm | 1800lm |
| Luminous efficacy | 90 lm/W | |||
| Color Temperature | 3000K / 4000K / 5700K | |||
| CRI | Ra ≥ 80 | |||

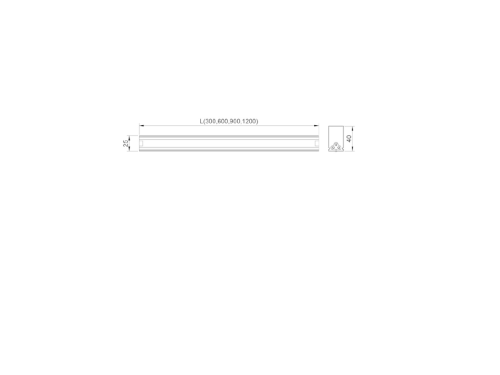

| Dimensions (mm) | 300 x 25 x 40 | 600 x 25 x 40 | 900 x 25 x 40 | 1200 x 25 x 40 |
| Finish | Body : Aluminum / Cover : Polycarbonate (PC) | |||
| Type of Connection | System connector : Socket | |||
| Protection | Indoor | |||
| MANUFACTURE R | ELECS KOREA ( Tel: 031.423.7822 / Fax: 031.423.7823 ) | |||
| NOTE |
| |||
◆Company introduction
ELECS KOREA concentrates on LED dimming applications. especially, Triac Main dimming parts. Thanks to a unique dimming solution (Patent-pending), smooth and dip dimming is realized. Our LED dimmable lamps are designed for retrofit replacement of traditional lamps and Main dimmable LED converters with a unique design can be used in LED lightings such as down-light, spot-light.
