## GENERAL DATA OF ROTARY TYPE NON-SPILL CAPS ASSEMBLING AND LABELS SEALING SYSTEM WITH FULLY AUTOMATICS SYSTEM.

Ⅰ. GENERAL TECHNICAL DESCRIPTION

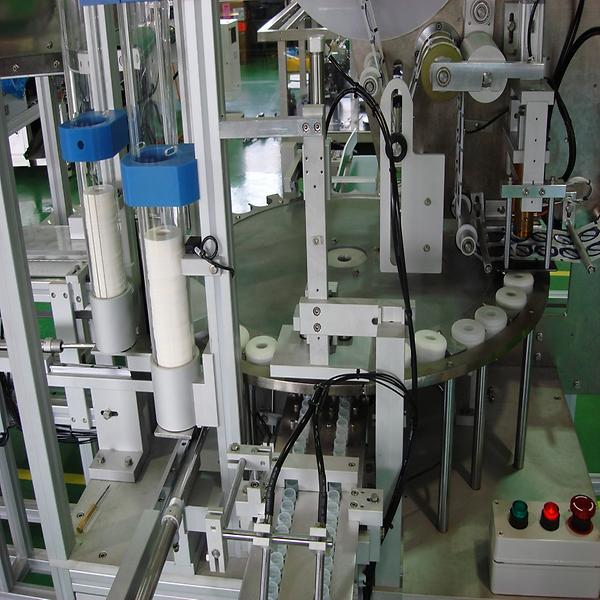

THESE EQUIPMENTS ARE DESIGNED TO ASSEMBLING NON-SPILL CAPS FOR VARIOUS KINDS OF BIGGER MINERAL WATER BOTTLES. THIS ROTARY TYPE NON-SPILL CAPS ASSEMBLING AND LABEL SEALING MACHINE CAN ASSEMBLE VARIOUS KINDS OF CAPS BY FULLY AUTOMATIC SYSTEM. MAIN FUNCTION OF THIS LINE IS PE FOAM INSERT, SMALL INNER CAP INSERT, LABEL HEAT SEALING AND CAP TAKE OUT.

#. MAJOR SPECIFICATION

1. APPLICABLE CAPS, PE FOAM AND LABEL      NON-SPILL CAPS WITH PE RESIN

LABEL (HOT MELT FILM OR EASY PILL FILM)

2. NON-SPILL CAPS WIDTH                     Ø55-58mm

3. WORKING SPEED                             60-80 PCS/MINUTE

4. POWER RESOURCE;                          220V OR 380V/60 HZ OR 50 HZ  1 PHASE

5. TOTAL CONNECTED LOAD;                  2.0 kw/hour

6. CONTROL VOLTAGE;                         DC 24V

7. AIR PRESSURE & REQUIREMENT;             5-6 BAR/ 450nl/minute

8. MAIN DRIVE;                                GEARED MOTOR 20;1

9. INTERMITTENT UNIT;                         INDEX DRIVE

10. SPEED ADJUSTMENT;                       INVERTOR

11. AIR QUALITY;                              CLEAN AIR WITH DRIED AND FILTERED

12. MACHINE DIMENSION(L * W * H);          3400 * 1850 * 1820
