KNITTED GLOVES NITRILE(NBR) COATING MACHINE.

THERE ARE THREE TYPES DIPPING MACHINES IN ACCORDANCE WITH THE LINERS, COATING MATERIAL & COATING METHODS.

1) KIND OF LINER; COTTON/HOSIERY/NYLON/POLYESTER/DYNEEMA/KEVLA/CUT3/CUT5.

-CUT3/CUT5 LINES; UHMW(ULTRA-HIGH MOLECULAR WEIGHT) MATERIAL

-EXCELLENT CUT AND ABRASION RESISTANCE WITH OUTSTANDING TENSILE STRENGTH

2) COATING MATERIALS; NBR OR NATURAL LATEX

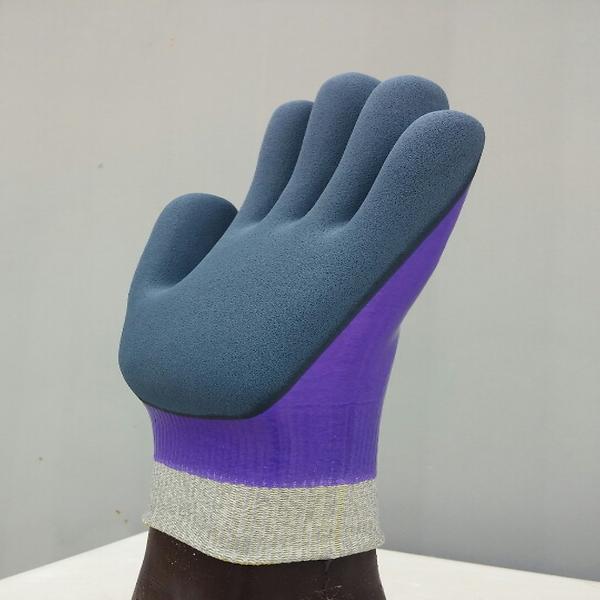

3) COATING METHOD; PALM/HALF/FULL/DOUBLE/FOAM/GLOSSY/WRINKLE/MICRO-SANDY/MAXI-WATER JET SPRAY

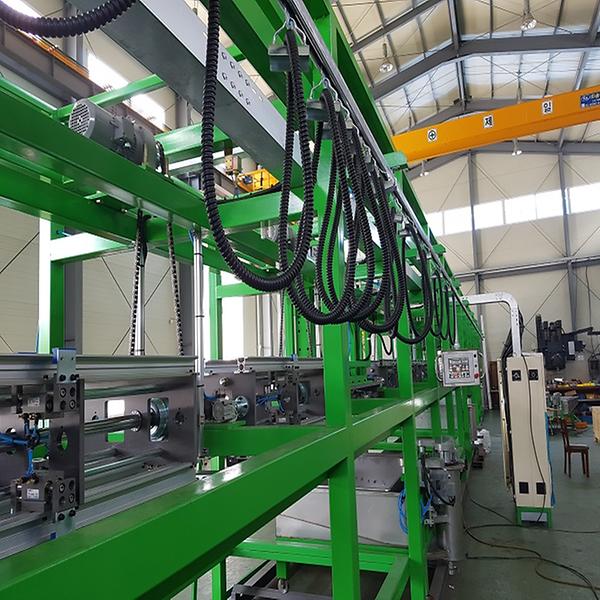

♣. NBR MAXI-WATER JET SPRAY GLOVE COATING MACHINE.

-MACHINE TYPE; SPECIAL DESIGNED VERTICAL + HORIZONTAL

1) MANUFACTURING PROCESS FOR PRODUCING MWJS GLOVES.

0. PRETREATMENT FOR PROTECTION PERMEATION NBR RESIN INTO THE LINERS)⇒⇒⇒⇒ROTATION OF MOULD FRAME BODY WITH 3 MOULD BARS⇒⇒⇒⇒NBR FOAM COATING⇒⇒⇒⇒ ROTATION OF MOULD FRAME BODY WITH 3 MOULD BARS⇒⇒⇒⇒WATER JET SPRAY ON THE PART OF FOAM COATING⇒⇒⇒⇒ MOVEMENT OF THE MOULD FRAME BODY WITH 3 MOULD BARS⇒⇒⇒⇒NATURAL DROPPING THE MOISTURE ON THE COATING GLOVES ⇒⇒⇒MOVEMENT TOWARD THE CHEMICAL LEACHING WATER TANKS ON THE 2 nd PLATFORM⇒⇒⇒⇒CHEMICAL LEACHING(SMELL/CHEMICAL) FROM THE COATING GLOVES⇒⇒⇒⇒MOVEMENT TO 3 rd PLATFORM FOR DRYING THE COATING GLOVES⇒⇒⇒⇒MOVEMENT 4 th PLATFORM FOR DRYING THE COATING GLOVES⇒⇒⇒⇒GLOVES TAKE OUT⇒⇒⇒LINERS FITTING

2) MERITS;

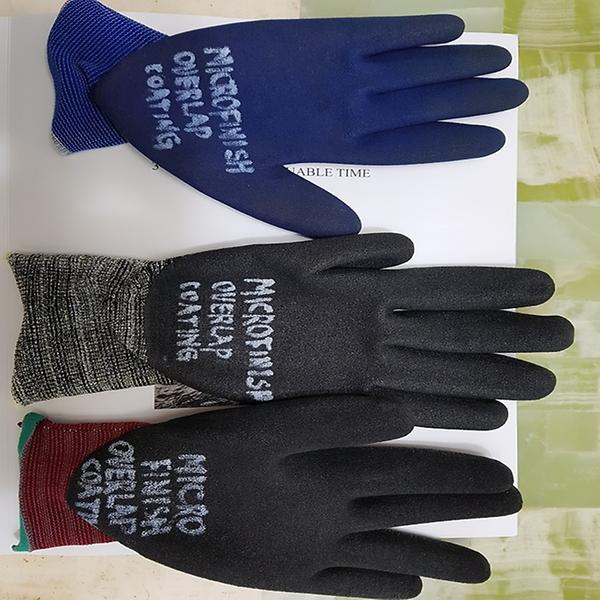

-THIS TYPE NBR COATING GLOVES ARE NOT ARISE NBR POWDER. SO, THESE GLOVES ARE EXCLUSIVE USING IN THE FIELDS OF PRECISION PARTS ASSEMBLY AS LIKE ENGIN, PRECISION TOOLS AND OTHERS.

3) DEMERITS;

-ARISE MUCH WASTE WATER. SO, THE COST OF WASTE WATER REFINERY MAY INCREASE.

-DAILY WASTE WATER; AROUND 30 tons/24 hr

-THIS TYPE MACHINE CAN DIP EXCLUSIVE MWJS COATING GLOVES ONLY.

4) OUTPUT CAPACITY;

-12 pairs/55 second-------------860pairs/hr~~~~~

-1 FRAME BODY IS INSTALLED 3 MOULD BARS

-1 MOULD BAR IS INSTALLED 4 pairs MOULDS.
