With new Fuel Cell Sensor Technology of Sentech Korea, iblow 10 is designed to high-quality professional use to check person’s

alcohol concentration quickly & accurately

With iblow10, the alcohol levels of 12 people can be measured per minute and the results are displayed in numerics

and can also indicate zero, low, and high levels.

The device has manual sampling function so it is possible to check alcohol level of specific or random subject.

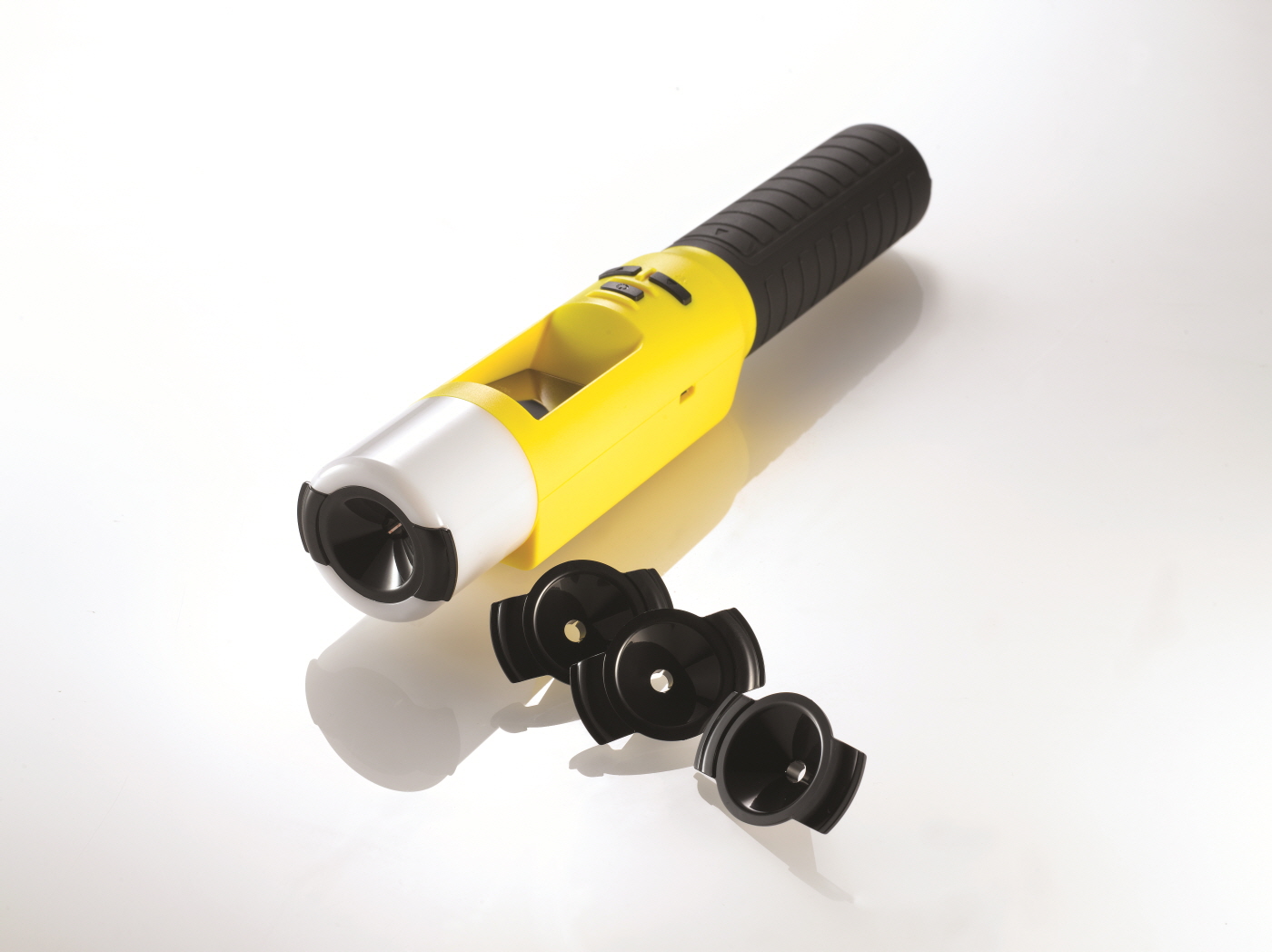

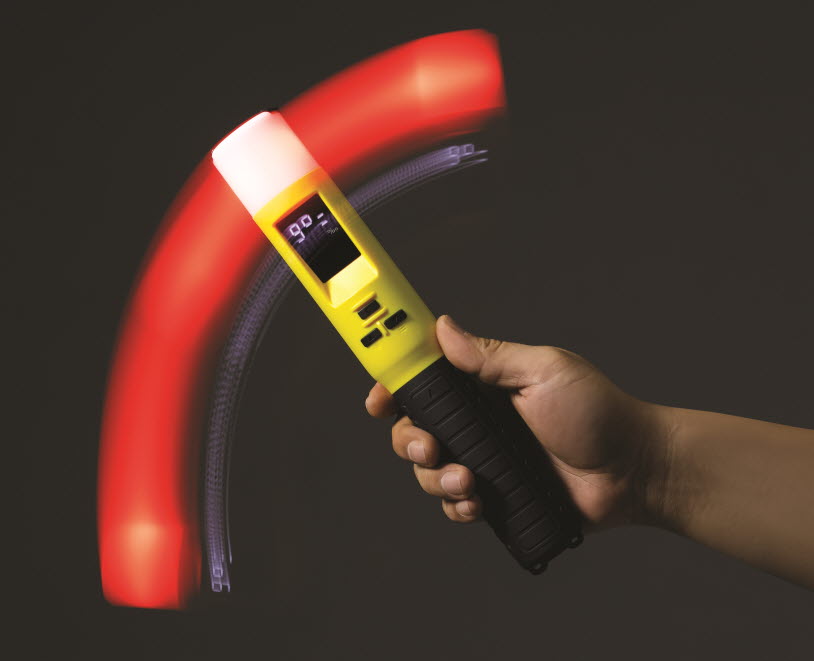

The blow cap is easily replaced for hygienic use, and the built-in magnets make it attachable to vehicles when police conducts roadside tests, preventing damage to the equipment. The LED lighting can also be used in various ways at night.

The user can also adjust the settings directly or connect it to PC software for more detailed settings. The alarm function also indicates the calibration warning and grace period of calibration warning, making it much more convenient.

Specification

Sensor Type:         Suracell™ sensor (Fuel Cell sensor)

Battery:             AA Size Alkaline Battery 6EA

Weight:            380g (Including batteries)

Size (mm):         276(Height) X 44.5(Width) X 44.5(Thickness)

Test result:         LED Alert (Zero: Green  / Low: Red  / High: Blinking Red)

                     FND display (0.00/Lo/Hi or Numerical result)

(Display “HI” in Numerical result mode means more than 1.00 g/l of BAC)

Buzzer alarm:         Zero : 1 Beep sound / Low : Repeating short Beep sound

High : Long Beep sound

Warming up time:   Within 10 seconds

Time for analysis:    Within 2 seconds (at 0.00 BAC)

Maximum test:     12 times / 1 minute

Working temperature:  -5°C ~ 55°C (Optional -10°C ~ 55°C)

Storage temperature:  -10°C ~ 60°C

Mouthpiece:          Blow cap (Replaceable & washable passive cone type)

Auto power OFF Adjustable:  30 to 900 seconds

Duration time for display  Adjustable:  1 to 9 seconds

Calibration period:   Every 5,000 tests or 12 months whichever comes first

(Factory Default) *Changeable by Web-server software

Additional Function:  Built-in Magnet

Reminder for calibration & Grace period

Calibration protection by Web-server connecting

Manual LED lighting: White, Red blinking, Red, Red & blue
