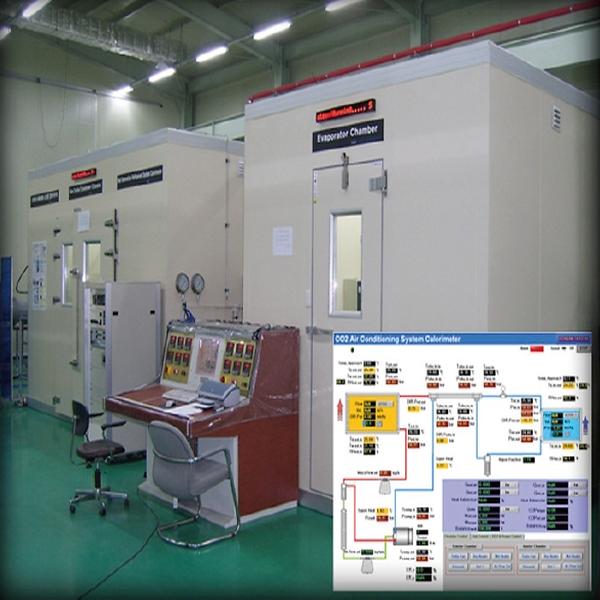

▶R134a, R744, R1234yf A/C System Calorimeter Test
▶Evaporator performance test
▶System matching test
▶Heat exchanger module’s Intake/Outlet Temperature Test
▶Heat exchanger's thermal distribution
▶Various performance pattern test

-ASHRAE Nozzle or multi range traditional Nozzle with auto selection system
-Facility working state display panel
-Measuring comp torque by torque detector
-Alarm measuring system
-Blower RPM measuring
-CCD Recording system
-Electric seating & Steam injection system
-Radio alarm messaging system
-180 data acquisition channels
-Fire extinguisher preparation
-Measurement apparatus status
-Through PLC based touch screen, also available through LabVIEW®

Model : SEOUL-ASC-1002 series

Capacity:

    - Compressor : 6,880 kcal/h (8kW)

    - Condenser  : 30,000 kcal/h (34kW)

    - Evaporator  : 20,000 kcal/h (17kW)

Temp. Range :

    - Condenser : 10~60℃

    - Evaporator : 10~60℃

Room Air Temp. Range : -20 ~ 70℃

Air Flow rate :

    -Condenser : 500 ~ 14,000 CMH(㎥/h)

    -Evaporator : 100 ~ 2000 CMH(㎥/h)

Comp. Torque : 0~200 N.m

Refrigerant: R134a, R1234yf, R744

Control interface : LabVIEW software with PC interface
