- PID
- 3086761

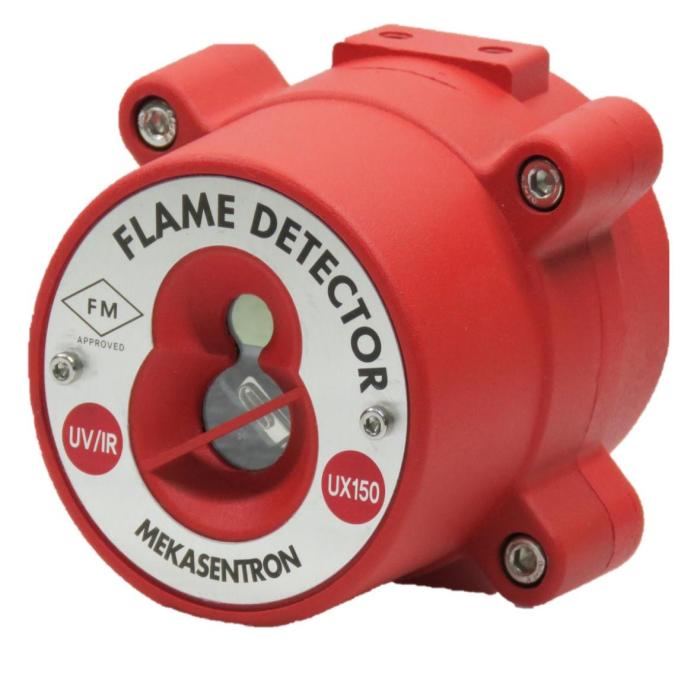

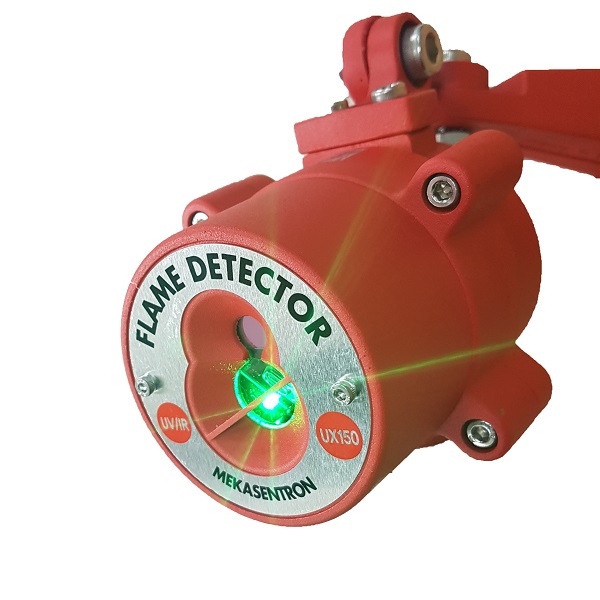

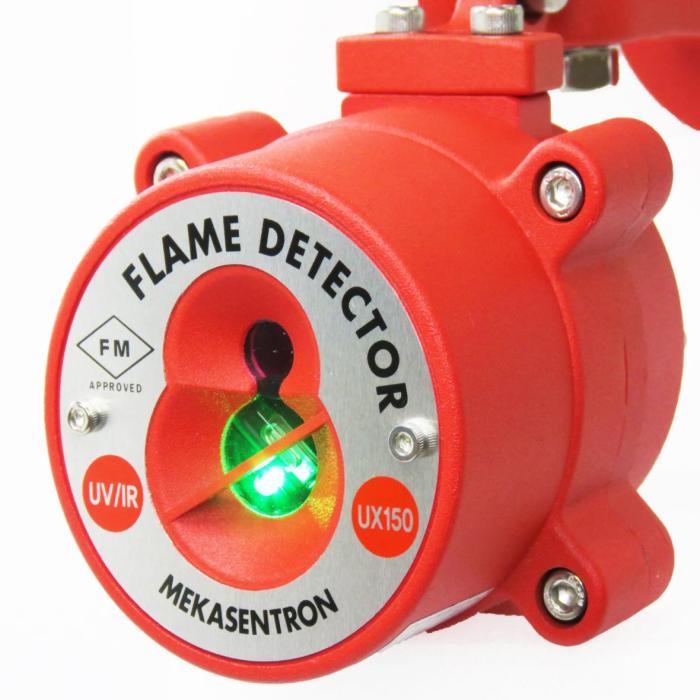

UV and IR combined FM approved aluminium RED Round ex-proof FLAME DETECTOR
High Sensitivity UV and IR detectors
Detection Range : 15M
Response Time: < 5 sec
Field of View: 90 degrees horizontal and vertical
Operating Temperature: -40°C to +75°C
Humidity : Up to 95%
IP Rating: IP66/67
Ex db IIB+H2 T6 Gb (IECEx)
Ex db IIC T6 T6 Gb, Ex tb IIIC T85°C Db (ATEX)
Material : Aluminum / SUS
Voltage Range: 18 – 30 VDC
Power Consumption: Normal Average 100mA / Max 3W (@24VDC)
Relative Humidity: 0-95%
Weight : 1.4kg/2.53kg
- Certification
-
- Award
-
- Shipping
-
- Payment
-
140+ Global Payments, trusted and secure payment provided by PayVerse.
Learn More
- Quantity
- MOQ : 2 Sets
Product Summary
Detailed Description
[ Specification ]
[UX150]
∙ Approvals : FM Approvals, ATEX, IECEx, CE, ATEX, NEPSI, KFI, KGS, PESO
∙ High Sensitivity UV/IR Dual Flame detectors
∙ Detects fire at distances up to 15Meters
∙ 90 degree Horizontal and 90 degree Vertical Field of Vision
∙ Water and Dust Tight
IP 66/67
∙ Ex db IIB+H2 T6 Gb (IECEx)
Ex db IIC T6 T6 Gb, Ex tb IIIC T85°C Db (ATEX)
∙ EMC Protected
∙ Fast Response Time
∙ User Program via RS-485
∙ Fire and Fault Relays
∙ Mounting bracket for easy alignment
∙ False Alarm immunity
∙ Applications : Gas generators, refilling stations, storage facilities, test facilities, Semiconductor facilities, Chemical plants, Refineries, Rocket fabrication, test and launch facilities, Aircraft Hangars, Compressor stations, Drilling and production platforms, Gas turbines.
[ Company introduction ]
MEKASENTRON Inc. (Flame Detector-MEKA) has been established on highly advanced vision for safe world from unexpected disaster prevention sector. (Fire…)
And, We continuously concentrate on R&D, innovative products and services to make the world safe for disaster prevention sector.
Also, the high flame detector of MEKASENTRON is based on permanent development process as well as an optimized production.
All process definition is made by ISO 9001, the certified quality management system.
