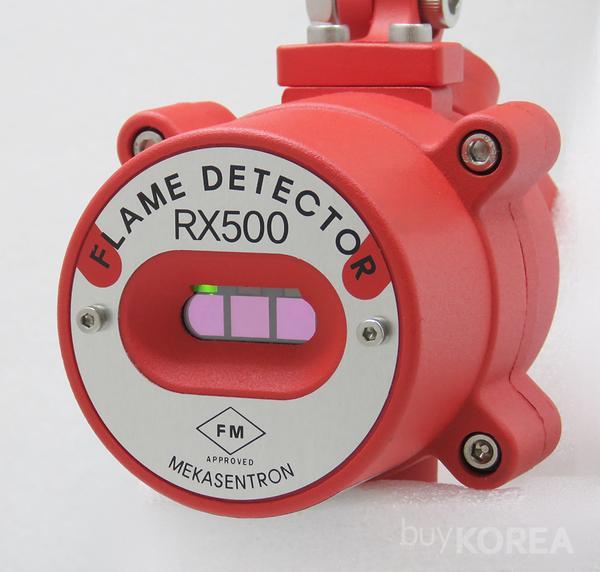

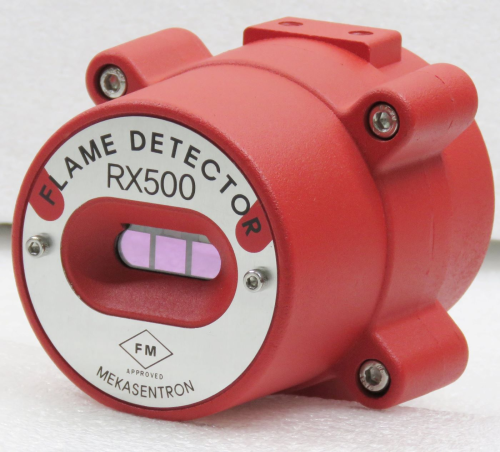

TRIPLE IR ALUMINIUM Red FLAME DETECTOR for Industrial and Safety, FM, ATEX
High Sensitivity Triple Infrared (IR3) detectors
Response Time: < 5 sec (60 meter far)
Field of View: 90 degrees horizontal and vertical (an extra wide field of view up to 120〫 degree)
Operating Temperature: -40°C to +75°C
IP Rating: IP66/67
Ex db IIB+H2 T6 Gb (IECEx)
Ex db IIC T6 T6 Gb, Ex tb IIIC T85°C Db (ATEX)
Material : Aluminum / SUS
Voltage Range: 18 – 30 VDC
Power Consumption: Normal Average 100mA / Max 3W (@24VDC)
Relative Humidity: 0-95%
EMC Protected
Fire and Fault Relays
False Alarm immunity
Weight : 1.4kg/2.53kg
- Certification
-
- Award
-
- Shipping
-
- Payment
-
140+ Global Payments, trusted and secure payment provided by PayVerse.
Learn More
- Quantity
- MOQ : 2 Sets
Product Summary
It is one of the products that is actively exported overseas as it satisfies not only famous overseas standards but also domestic fire certification standards.
Detailed Description
[ Specification ]
[RX500]
∙ Approvals : FM Approvals, ATEX, IECEx, CCCF, NEPSI, EAC
∙ High Sensitivity Triple IR (Infrared) detectors
∙ Detects fire at distances up to 60Meters
∙ 90degrees Horizontal and 90degrees Vertical Field of Vision
- Ex db IIB+H2 Gb (T6, IP66) / Ex db IIC T6 Gb, Ex tb IIIC T85℃ Db ( @ ATEX )
∙ Water and Dust Tight
- Operating Temperature : -40℃ to +75℃
∙ EMC Protected
∙ Fast Response Time
∙ User Program via RS-485
∙ Fire and Fault Relays

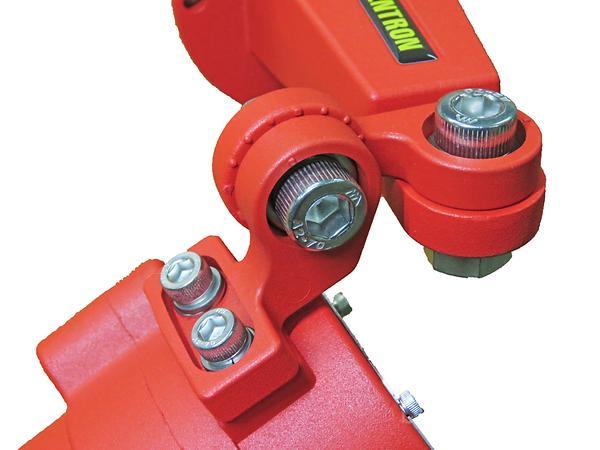

∙ Mounting bracket for easy alignment
∙ False Alarm immunity
∙ Applications : Pipelines, Warehouses, Chemical plants, Printing industry, Aircraft hangers, Aerospace industry, Storage tank farms, Automotive industry, Power
generation facilities, Onshore oil and gas installations, Offshore oil and gas installations., malls, wood stores, underground tunnels, arc welding workshops
[ Company introduction ]
Mekasentron is the first company in Korea to localize the production of flame detectors. With its title of 'We specialize in flame detector, since2003' Mekasentron has highly achieved the leading-edge technology through its long experience, constantly developing through the acquisition of various internationally qualified approvals, including the CCCF and NEPSI, as well as the FM approval and global explosion-proof certification.
