Production Capacity

Max : 1,000 m / day (10hours)

Machine Dimension (Width x Length x Height)

8.7m x 1.2m x 3.2m

Utility Consumption

Electricity : 200kw, Air Pressure : 40hp

System Components

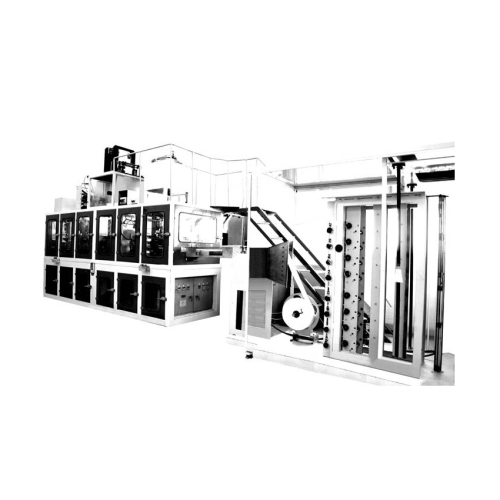

1. Splint Production Machine
2. Agitator & Acrylic Chamber
3. Dehumidifying System (Main Machine, Chiller, Air Compressor)
4. Electric Oven, Band Sealer & Packer, Pan Scale, Electronic Scale
5. Mechanical-type Universal Testing Machine

Required Site

1. Raw Material Storage : 180㎡
2. Production Area : 200㎡
3. Products Storage : 150㎡
* Additional spaces for office, laboratory, etc. should be considered.

Required Manpower

4 Persons (Operator - 1, Packer - 2, Inspector & Helper -1)

※ If any further information is required, Please contact us.
