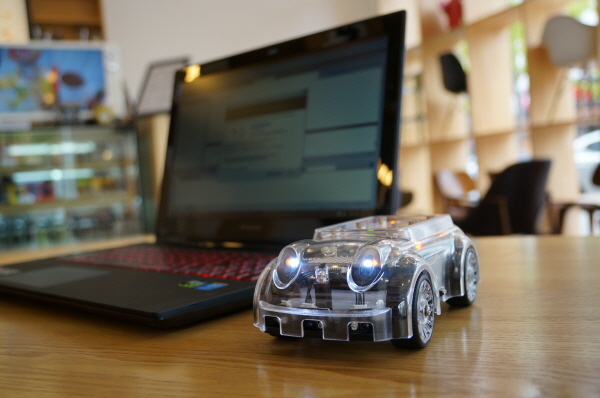

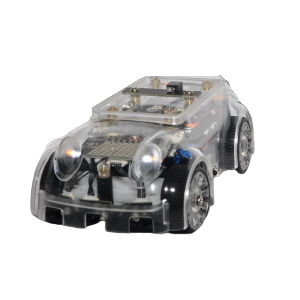

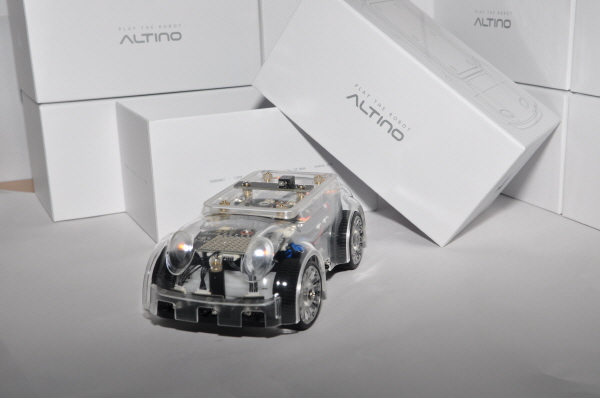

The ALTINO System is a robot platform designed for education and development of MSRDS(Microsoft Robotics Developer Studio) Visual Programming Language, Scratch, C Language and Android Application Programming, and can be used as an education/ development platform for elementary, middle, high school and university students. ALTINO will be your teacher. It will teach you programming step by step by a very unique and interesting way.

This is the Robot with which students can make their first steps in programming.

· Dimension : 98mm x 180mm x 63mm (LxWxH) / Standing height : 12mm

· Material : ABS

· Processor : Atmega 128, Atmega 88 Dual Processor

· Communication between dual processors : Digital communication error detection algorithm by means of serial communication

· Motor : DC Geared motor / 20:1 / 250RPM / 3.5~8VDC

· Steering control motor : DC Geared motor / 220:1 / 2.5~6VDC

· Top speed : 0.5m/s (Max)

· Sensor :

 1. Infrared sensor for detecting obstacles : 6 (Front : 3 / Rear: one / Side: one for each side)

 2. Distance measuremnet : [Min] 2cm ~ [Max] 10cm

 3. Steering control sensor : One

 4. Magnetic field sensor [3 axes] : One

 5. Battery voltage sensing : Output as ADC

 6. Acceleration sensor [3 axes] : One

 7. Temperature sensor : one

 8. Light sensor : One

 9. IR receiver : One

10. Gyro sensor [3 axes] : One

·Display

 1. Dot-matrix 8x8,

 2. State LED indicator :

 3. Buzzer: One

·I/O device

 1. Power switch input : 1ea

 2. PC communication connection port : RS232 1ea

 3. Wireless communication : Short-range wireless communication network Bluetooth

 4. Program downloading : ISP(In system Program)

·Battery :
