[Company Introduction]

*Vision

Our 'closed circuit power line communication' method is patented in the US, Japan and China as well as Korea, and has been applied as a patent in Europe, Canada and Australia.

Our system has already been applied to various lighting environments such as office building, university lab and classroom, professional baseball field, international swimming pool, new factory, new apartment, etc., and it is under construction at many sites.

Ultimately, our vision is to enter the global lighting market beyond small Korean market to build a unique brand power.

[Company History]

- 2001.09 Established the company

- 2004.08 Acquired the patent for closed circuit power line communication

- 2005.09 Installed and demonstrated lighting control system using patented technology

            above forLondon Museum

- 2005.10 Acquired venture business certification

- 2008.11 Selected as an INNO-BIZ company

- 2009.12 Acquired CE certification for lighting control device

- 2011.04 Acquired ISO 9001, 14001 certification

- 2011.10 Installed lighting control system for the new building of POSCO energy

- 2012.11 Acquired the patent of large capacity lighting control system - 2015 in USA,

            China, 2016 in  Japan

- 2013.12 Installed lighting control system at Gwangju baseball field (Kia Champions Field)

- 2015 Installed lighting control system in Gwangju INNO-BIZ Center,  ㅇㅇ   factory,   ㅇㅇ

        apartment,  International Education Center

- 2016 Installed lighting control system in Institute of Science and Technology, Ulsan,

         ㅇㅇ  apartment,   ㅇㅇ   M-park

[Product Description]

In order to realize the most suitable, energy-saving and easy-to-use system for lighting control, it is essential to control the brightness color, and temperature separately for each lamp. Controlling the brightness, color, and temperature of the desired area according to the user's usage and demand can increase the productivity and save the energy as well. Even if the partition is changed, you can only change the setting without construction.

Our lighting control system is applied to offices, work places, resting places, restaurants, houses, etc.

[Product Features]

In order to control lighting individually, DALI (Digital Addressable Lighting Interface) and other communication lines other than power lines are generally used, and wireless may be used. However, in the case of the wired method, a separate communication line is required, so it can not be applied to an existing building. In the case of wireless, the antenna has to be exposed due to the characteristics of the radio wave, and it affects not only the lights but also the shading area of the communication.

Our lighting control system enables communication with the lights only by a power line, so it is easy to be applied to an existing building and can reduce construction cost drastically.

Although communication using power lines is exist, there have been problems such as reliability of communication and price due to the large influence of other devices. However, our patented closed circuit power line communication method can solve all such problems.

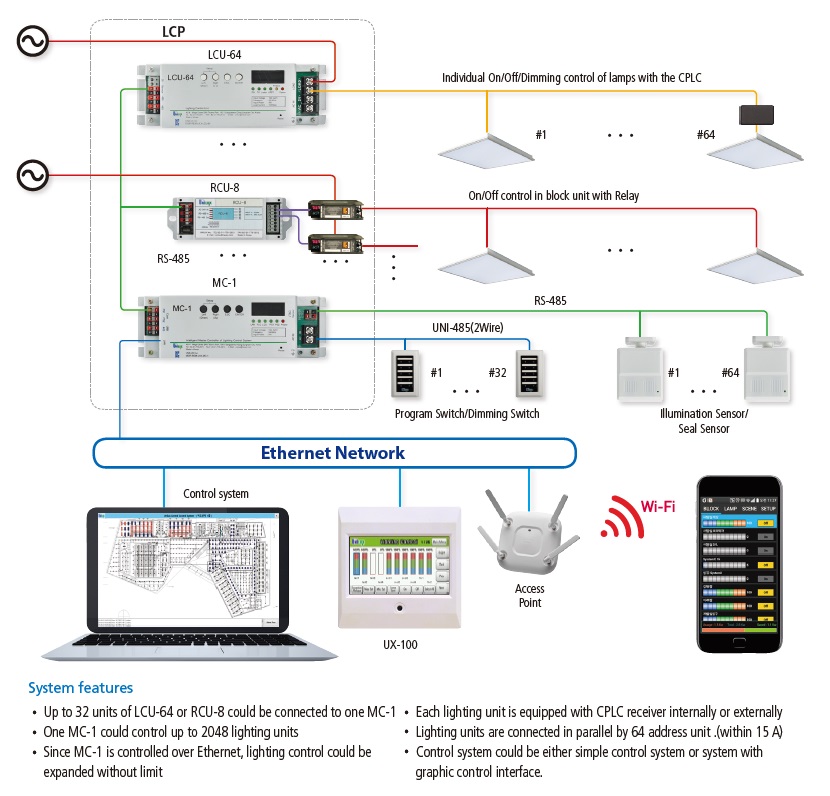

* Example of the lighting control system for business facilities such as office

   buildings

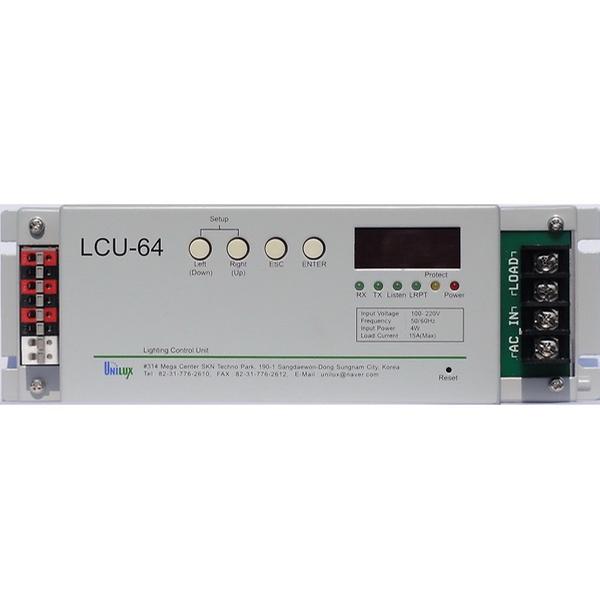

* Lighting Control Unit : LCU-64

 - MC-1 with RS-485

 - Communication with lighting units with CPLC:

 - Control of 64 lighting units within 15 A

 - Real time monitoring of the current used by lighting units

 - Size: W:218 x H:70 x D:73(mm)
