Small Size Single Screw Extruder Plastics 19 mm 25LD Single Strand Die
Request For Quotation
small size single screw extruder, barrel dia. 19mm, 25 L/D, no vent, air/water cooling, standard single full flight screw, single strand die, module or stand-alone type
- Award
-
- Shipping
-
- Lead Time120 ~ 150days
- Modes of Transport FOB
- Products Shipped From Busan
- Payment
-
140+ Global Payments, trusted and secure payment provided by PayVerse.
Learn More
- Quantity
- MOQ : 1 Sets
Detailed Description

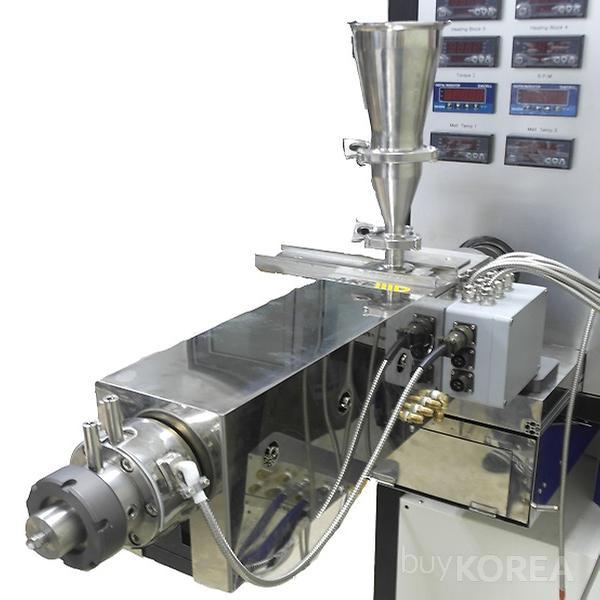

[Standard Single Screw Extruder - SSE19]
- Barrel diameter 19mm, 25 L/D no vent extruder
- Three zone high temperature casting heater, max 320 deg C
- Air cooling system
- Possible to use water cooling system for barrel
- J-Type Thermocouple
- Three zone extruder temperature control zone for three air or air/water control zone
- Four additional control zone for adaptor and die
- Including single strand die
* Standard Single Full Flight Screw
- Diameter: 19mm
- 25 L/D
- Compression Ratio 2.5 ~ 3.5
* Mixing Screw (Optional)
- Dispersive mixing element (Dulmage, Pineapple, etc.)
- Distributive mixing element (Egan, Maddock, etc.)
