[ Specification ]

1) Concept
o Turbo classifier classifies fine powder and coarse powder by rotor equipment and air system which is set in the inner classifier case. Depending rotational speed and structure of rotor and volume of inject air, classifying size of powder is changed

2) Product Features
Wonjin Tech’s classifier rotor consists of three steps. The classifier is suitable to distribute fines accurately. Fine material which has strong cohesion or adhesiveness is separated by turning force of rotor and centrifugal force of strong air. Efficiency of classifying is very high (around 80~90%). The classifier saves space for erection due to compact size compared to other separators.

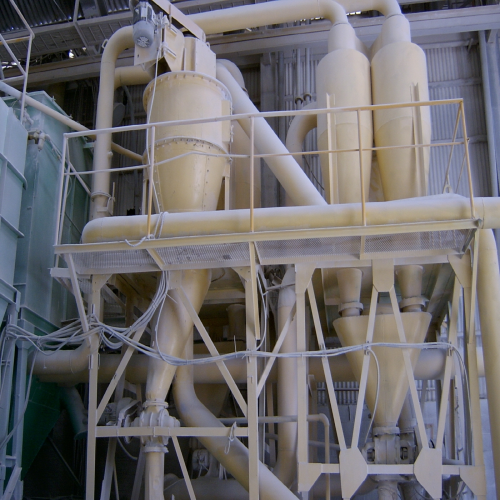

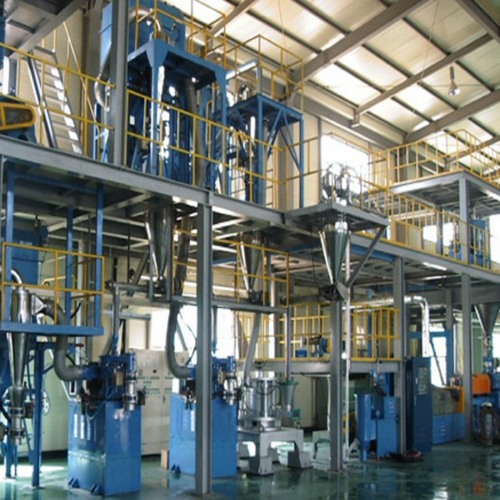

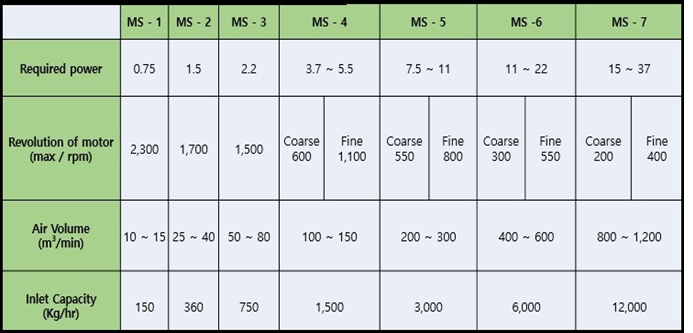

* MS Separator (Separate standard: 300 mesh calcium carbonate 80% pass)
o Range of powder's separation: 5~150µm


* TS Separator (Separate standard: 300 mesh calcium carbonate 80% pass)
o Features: Use for precise separating, especially the TS separator is able to classify by sub-micron size range

3) Range of Application
* Foods (tea, brewery, health foods)
* Ceramics (tile, sanitary ware, roofing tile)
* Chemical products (cosmetics, plastics, pigment),
* Medical Products (medicine ingredient, blood products),
* New cutting edge materials’ compound (Semi-conductor, battery, glass)
* Environment (Water supply and sewerage, factory effluent, soil cleaning)

[ Company introduction ]

1) Company


Capitalizing on its pioneer and challenge spirit, Wonjin Tech is aiming to be the best fearless frontier of industrial facilities and lead future of the industry.

* Founded year- 1991
* Gross Asset- 2.97 billion KRW *consolidated as of 2015.12
* Sales- 4 billion KRW* consolidated as of 2015

2) Affiliates
 * Founded year- 1967
 * Founded company- Briquette Wang Pyo, in Busan
 * Sales- 3.6 trillion KRW* Consolidated as of 2015

3) Field of Business
Wonjin Tech Co., Ltd, a comprehensive engineering company has fulfilled optimization of industrial facilities which is the backbone of domestic industrial production. Over the past 20 years in the plant engineering area, Wonjin Tech has satisfied customers by offering high quality service and making an effort in R&D. Wonjin Tech has technical skills and Know-how not only to produce each facility but also design whole process and built factory based on customers’ requirement.
- Screen & separator (Wontex Screen, Vibrating Screen, Rotary Screen, Micron Separator, Air Classifier)
 - Crusher (Jaw Crusher, Cone Crusher, Hammer Crusher, Impact Crusher, Roller Crusher, Pin Crusher)
- Mixer (Paddle mixer, Ribbon mixer, Air mixer, vortex mixer, pan mill & mixer, Pot & cone mixer, vaccum twist mixer)
- Weighing plant (Hopper scale, conveyor scale, packer scale)
- Drying & Furnace (rotary Kiln & Dryer, Tunnel Kiln & Dryer, Shuttle Kiln & Dryer, Net Dryer,    Spray Dryer, Electric shuttle & continues dryer)
- Mill (Raymond Mill, tube & conical mill, ball mill, pin mill, hammer mill)
- Feeder (Rotary Feeder, Table Feeder, Apron feeder, Vibrating Feeder)
- Conveyor (belt conveyor, bucket elevator, screw conveyor, chain flow conveyor, pneumatic conveyor, roller conveyor)
