(Products Description)

- Super slim & light Air conditioner for industrial control cabinet.

- electrical panel air conditioner.

   cabinet air conditioner.

   industrial air conditioner

- Thin & light, Easy for after service, Easy to clean the filter, No need of the drain hose.

- Applying to CNC machine, robots and many types of FA system.

   We(DAEYANG Mechatronics co. Ltd.)were developing and manufacturing

   industrial air-conditioner and fan-cooler with the experience of over 30years in the field,

   supplying to major companies in Korea such as Hyundai, Kia, Doosan, Chevrolet,

   Renault Samsung,etc

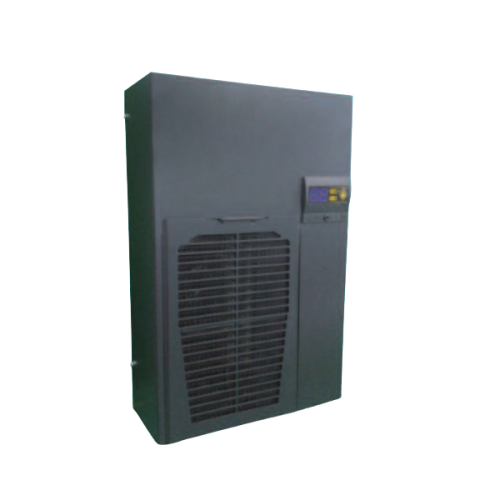

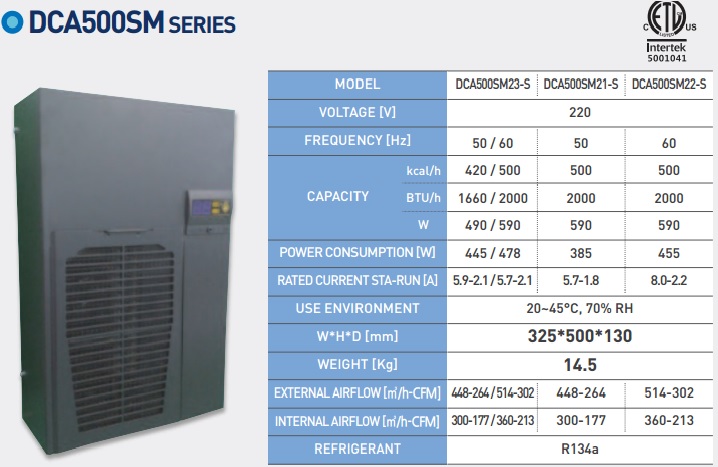

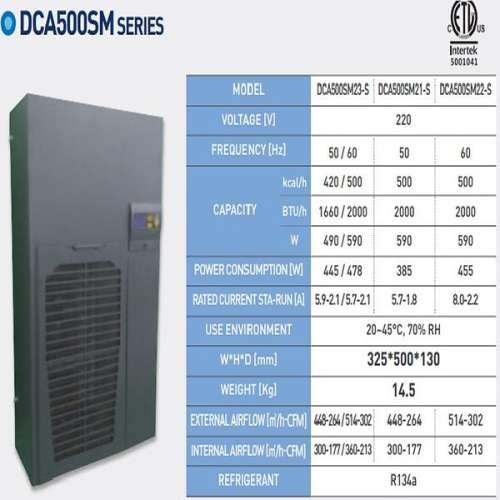

1) Model Number(Typical) : DCA-500SM

    Cooling capacity : 500 Kcal/h(2000 BTU/h)

    Electric power : 3Phase 220V 50/60Hz

    Size (W*H*D) : 325*500*130mm

    Weight : 14.5 Kg

    Refrigerant : R134a

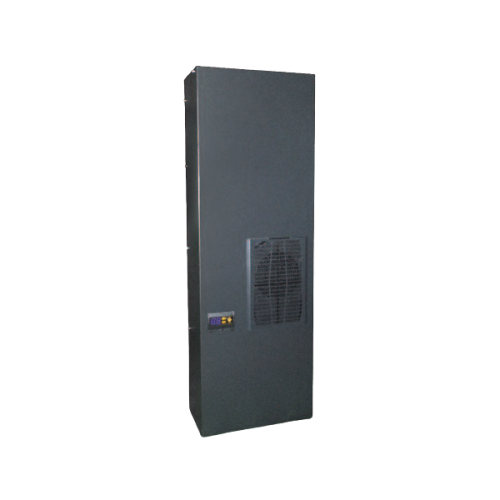

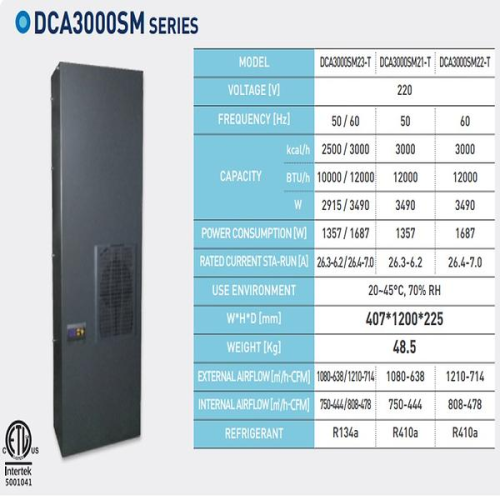

2) Model Number(typical) : DCA-3000SM

    Cooling capacity : 3000 Kcal/h(12000 BTU/h)

    Electric power : 3Phase 220V 50/60Hz

    Size (W*H*D) : 407*1200*225mm

    Weight : 48.5 Kg

    Refrigerant : R134a /R410a

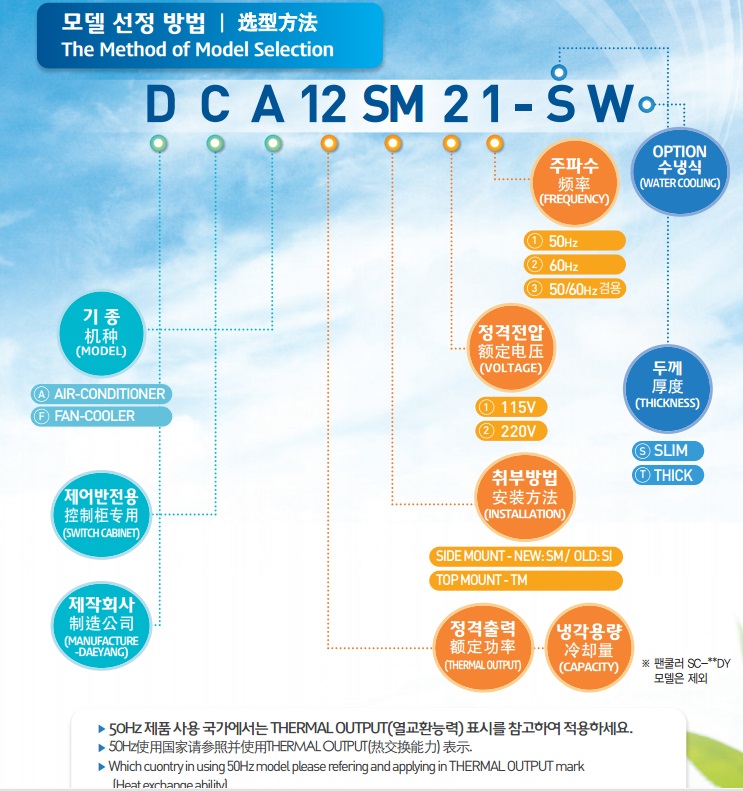

The above model is typical model No.

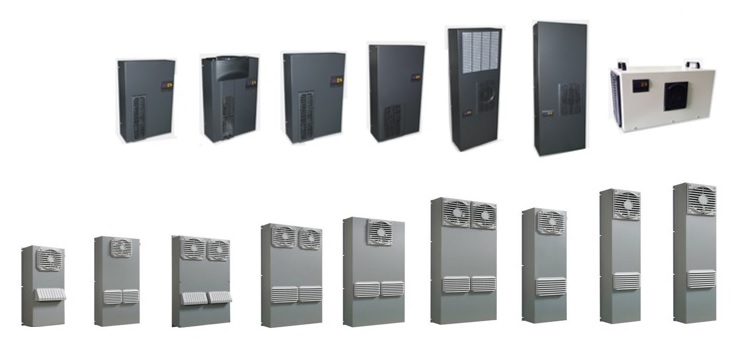

In addition to the above model, we have a lineup of 10 models from 250 Kcal to 3000 Kcal.

You can also see more at www.dymecha.com

Manufacturing country : South Korea

Payment terms : T/T, L/C

Delivery terms ; FOB Busan of South Korea
