[ Specification ]

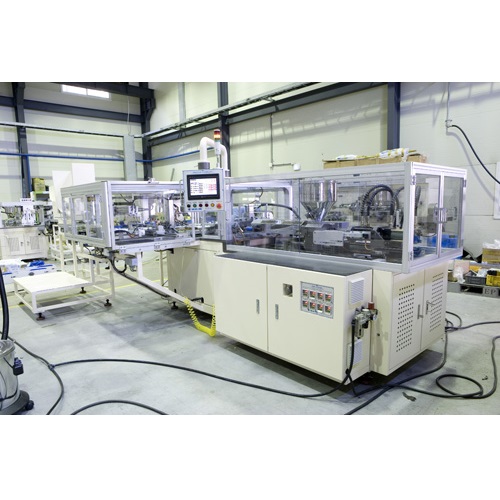

Injection Heading Machine

It makes neck and shoulder on the sleeves by injection processing.

There is no operator needed to control or make the tube load in the mandrel.

The machine has sleeve storage and the operator put the sleeves in the storage from time to time.

You can have a orifice at which diameter you want after shoulder & neck is made without extra drill machine.

It can apply to both round and oval shape tubes with Orientation of I-mark.

It consist of 4-station, loading, injection, orifice cutting and unloading.

Injection unit is divided 4 sectors with 4 mandrels.

GCH4000

• Max. output speed : 48pcs/min

• Tube dia.(mm) : 16~50

• Tube length : 60~200mm • Extruder ø 60mm l For Outer Layer(PE)

• Tube dia l 16~60mm

• Tube length : 60~200mm

• Air consumption : 6~7kg/cm3, 500ℓ/min

• Elec. Power : 380V-3ph-50/60Hz, 20kw

• Dimension(mm) : W 2150 × L 4900 × H 1750

GCH6000/A/B

• Max. output speed : 72pcs/min

• Tube dia.(mm) : 25~50(GCH6000), 13.5~30(GCH6000A), 30~60(GCH6000B)

• Tube length : 60~200mm

• Air consumption : 6~7kg/cm3, 800ℓ/min

• Elec. Power : 380V-3ph-50/60Hz, 30kw

• Dimension(mm) : W 2350 × L 5500 × H 1850(GCH6000/GCH6000B)

                              W 2254 × L 5500 × H 1850(GCH6000A)

[ Company introduction ]

We are trying to satisfy customer's need for competitive price and high quality with our special know-how and experiences.

We started export to overseas market from 2002. We have already exported over 14 countries in the world.

Our major products are Single~5 Layer Extrusion line, Injection Heading Machine, Multi color Offset printing Machine, Top Sealing & Capping Machine and so on.

Especially extrusion line has excellent productivity with price competition.

Injection Heading Machine is also easy operation and high flexibiltiy.

All GCM machines give cost down effects and are very proper for small quantity batch production.
