[ Specification ]

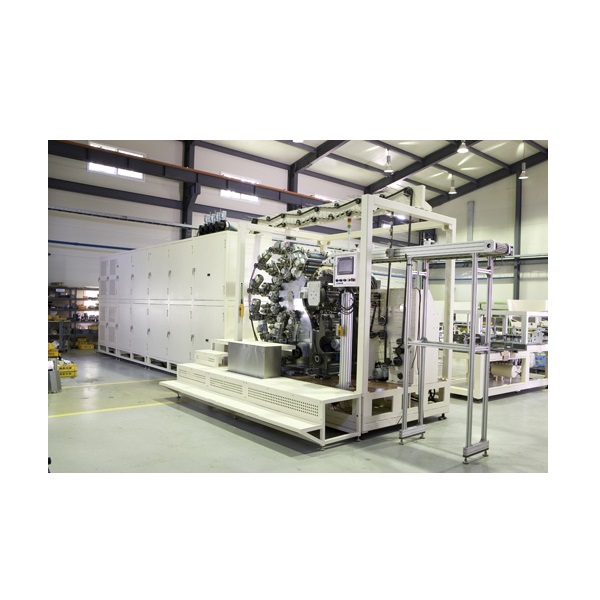

Fully Automatic 5~7 colors offset printing machine

By double roller contact system, it can be get high ink mixing and stable color quality till 5~7 colors.

It can give gradation printing on the tube by stroke control of mixing roller.

• Max. output speed : 80pcs/min

• Tube dia. : 19~60mm

• Tube length : 60~200mm

• Air consumption : 450ℓ/min

• Air pressure : 6~7kg/㎤

• Elec. Power : 380V-3ph-50/60Hz, 30kw

• Dimension(mm) : W 2500 × L 5500 × H 3220 (UV dry)

GCP7 : 7 colors

• Max. output speed : 100pcs/min

• Tube dia. : 19~60mm

• Tube length : 60~200mm

• Air consumption : 700ℓ/min

• Air pressure : 6~7kg/㎤

• Elec. Power : 380V-3ph-50/60Hz, 65kw

• Dimension(mm) : W 2500 × L 5500 × H 3220 (UV dry)

[ Company introduction ]

We are trying to satisfy customer's need for competitive price and high quality with our special know-how and experiences.

We started export to overseas market from 2002. We have already exported over 14 countries in the world.

Our major products are Single~5 Layer Extrusion line, Injection Heading Machine, Multi color Offset printing Machine, Top Sealing & Capping Machine and so on.

Especially extrusion line has excellent productivity with price competition.

Injection Heading Machine is also easy operation and high flexibiltiy.

All GCM machines give cost down effects and are very proper for small quantity batch production.
