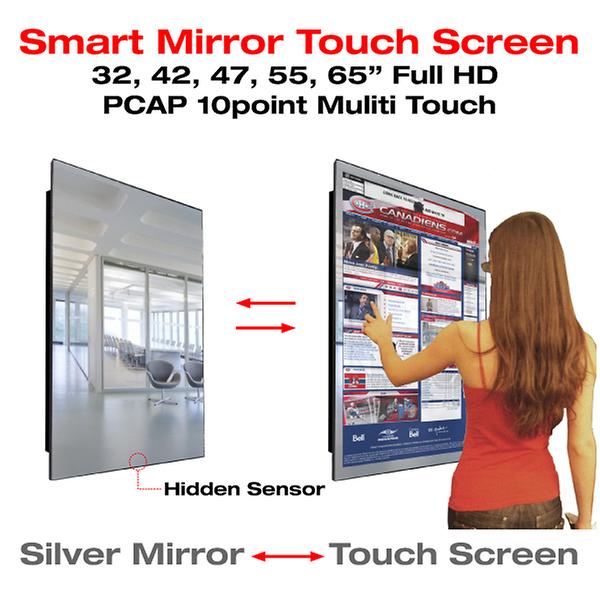

Smart Mirror Touch Screen

Capacitive Multi Touch Foil Type
- Used CE approved quality of Capacitive Multi Touch Foil
- Support Every Windows OS, Linux, Android 4.2 available to use
- Touch Foil installed at the back side of Half mirror glass and connect by USB to settop or PC
- When the Sensor has no detection, it’s a real silver glass mirror but, when people come up to the mirror, it converts to Touch Screen automatically and , Vice Versa
- Including Android WIFI Settop
- Support Full HD 1920 x 1080p Resolution
- Include Wall-Mounting Bracket (Portrait or Wide)
- Excluded any touch screen contents
- Support RGB, DVI, AUDIO, HDMI, USB, LAN, WIFI
- 10point Muliti Touch

Key Function
- It looks a regular mirror glass but, when people come up to the mirror, it turns to Multi Touch Screen Magically and Vice Versa

- Including Wifi Android Settop

Time Delay Function
- After mode converted by sensing, it will holds that converted mode for 5 seconds longer, and then get back to earlier mode evenif, the object (people) just strayed out of sensor's sensing range. (distance)
※ Factory Pre-setting Delay time is 5 seconds but, if you need it for longer or shorter, please ask us. (Delay time setting is not adjustable by user)

Easy Setup
- User can setup each different mode very easily by On/Off switches (2pcs) at the back side of base frame

Sensor
- Used best quality Photo Sensor (CE approved) - Sensing distance adjustable min. 0 ~ max. 2 M
- Hidden in the frame
- Sensor’s detecting beam range = Straight line only.
- It does not detect in fanwise long cone shape range like Front Door at home

Frame (Touch Foil Type)
- Ultra slim 1mm border Black Metal Housing
- Product Thickness is App. 70mm

Standard Size
32 inch Full HD LED Monitor (300nit) + Half mirror glass size 500 x 800mm
42, 47 inch Full HD LED Monitor (700nit) + Half mirror glass size 690 x 1,140mm
55 inch Full HD LED Monitor (700nit) + Half mirror glass size 780 x 1,310mm
65 inch Full HD LED Monitor (450nit) + Half mirror glass size 900 x 1,530mm
※ Max. size of Half mirror glass is 2,200 x 3,300mm (4 or 6mm thickness / Cuttable glass)
※ Product Outer size are 2.5mm bigger than Half mirror glass size.
※ Custom size available by request - Custom half mirror, LED monitor and Touch screen size etc.
