∙ X-Y-Z axis travel (table longitudinal stroke)                          : 2,050 X 3,050 X 700 mm

∙ table top of ground surface                                                 : 2,000 X 3,000mm

∙ T-slot size of table (size × No/pitch)                                   : M12 TAP  &  T-slot 18mm

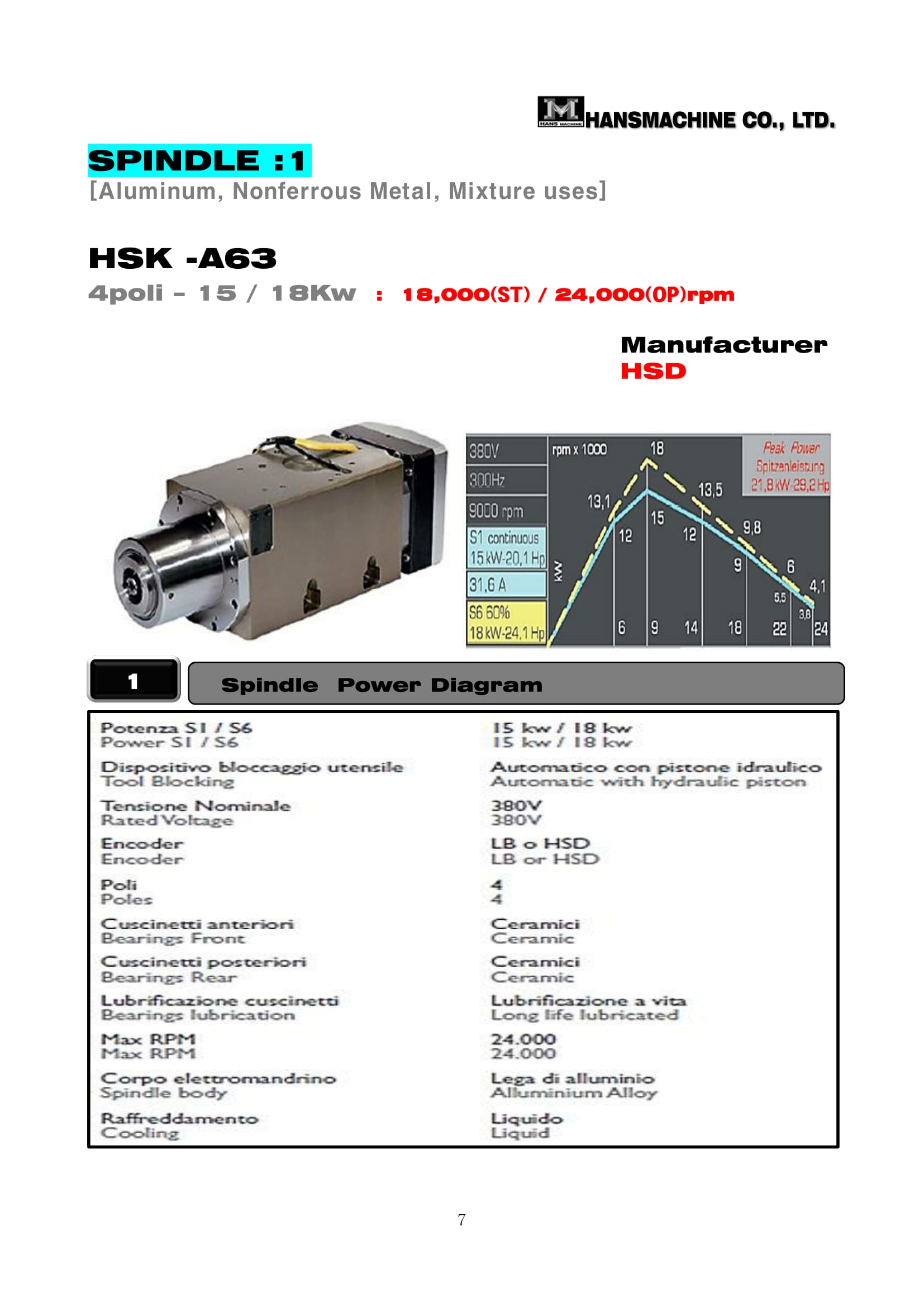

Ø  SPINDLE 1 : (aluminum / nonferrous metal / complex) / for use

             ∙ [ HSK-A 63 – standard/optional]                       : 15 - 18 Kw – 18,000 /24,000rpm

   2    X- AXIS

∙ X-axis travel                                                                       : 3,000 mm

∙ Rapid traverse of table                                                        : 30,000 mm/min

             ∙ Feed rate of table                                                                : 1~10,000mm/min

 3    Y- AXIS

             ∙ Y-axis travel (spindle head cross stroke)                               : 2,000 mm

             ∙ Rapid traverse of spindle head                                             : 30,000 mm/min

             ∙ Feed rate of spindle head                                                     : 1~10,000 mm/min

4    Z - AXIS

             ∙ Ram sectional dimensions[ 4 square]                                    : 300 × 300 mm

             ∙ Rapid traverse of ram                                                           : 20,000 mm/min

             ∙ Feed rate of ram                                                                  : 1~10,000 mm/min

∙ Z-axis travel (ram vertical stroke)                                          : ST= 700 mm
