Features of Portable Dental Care Equipment
Use conveniently anytime and anywhere!!

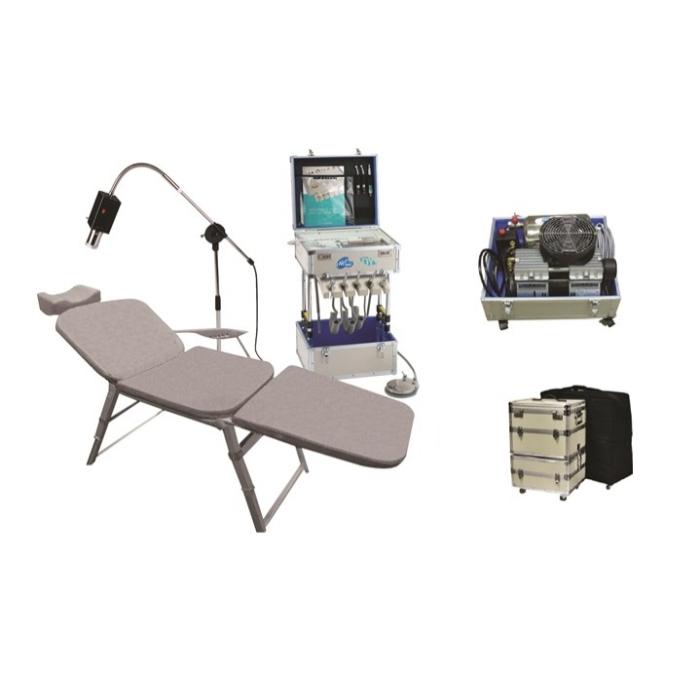

< COMPOSITION >
1. Impact Portable Dental Unit ---------- 1set
2. Oilless Compressor (1HP) ------------- 1set
3. Portable Dental Patient Chair ---------1set
4. High Speed Hand piece -------------------2EA
5. Low Speed Hand piece ------------------ 1EA
6. Ultrasound scaler --------------------------- 1set
7. Integrated Air Suction ------------------- 1set
8. Portable Operating Light --------------- 1set
9. Aluminum case & Bag ------------------- 2EA
10. Portable Chair's Bag------------------------1Set

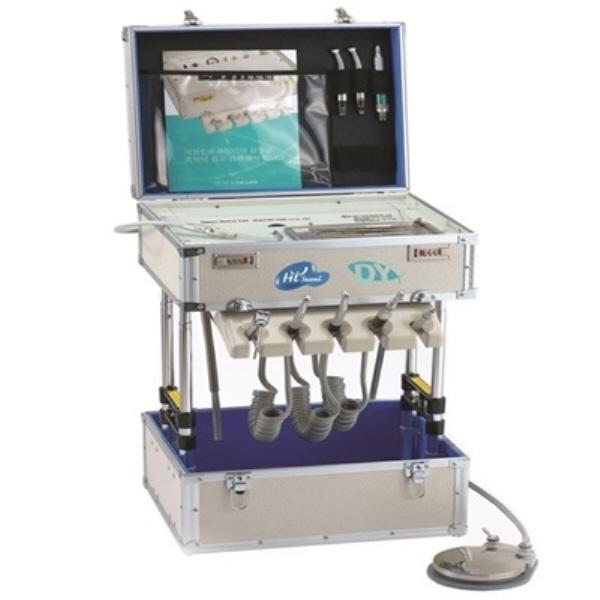

[ Impact Portable Dental Unit ]
1. Put the aluminum box horizontally in convenient location.
2. Unlock 4 clasps that connect the middle and lower part of aluminum box.
3. Hold the handle, and then lift it up vertically, simultaneously pushing the lower part.
4. The box becomes a table type with four poles.
5. Check the connection balls which support four poles whether they come out clearly.
6. Put the 3-digit numbers and push the dial handle in the both sides, and open the lid completely.
7. You can easily draw out handpiece holder with slight upward motion.
Connect and insert 3-way syringe and the handpieces. The handpiece is mounted by turning,
and the scaler is pushed in a straight line and tightly fitted.
8. Fill bottles with water or distilled water, and if surgery, 0.9% normal saline.
9. Put the green tube in the bottle, and turn and fasten the bottle clockwise.
If you hear the sound of air leak, turn bottle clockwise more.
10. Put the suction hose in the dirt and stand upright.
11. Put the foot pedal in convenient location for treatment.
If you turn the switch to left side, water is supplied for two high speed handpieces and scaler.
If you turn the switch to right side, water is not supplied.
12. Connect the pressure hose of the unit and the compressor to the coupling.
13. Open the lever of the compressor and send compressed air.
14. When you turn on the main switch of the unit, pressure is automatically transferred
to the water bottle and ready for medical treatment (To replenish the water, turn off the main switch
and remove the bottle by turning it to the left).
15. The bracket can be placed on the top plate and treated.
16. Dimension 420x350x350, the height of the table when opened expanded to 700.
17. Weight 15.3kg

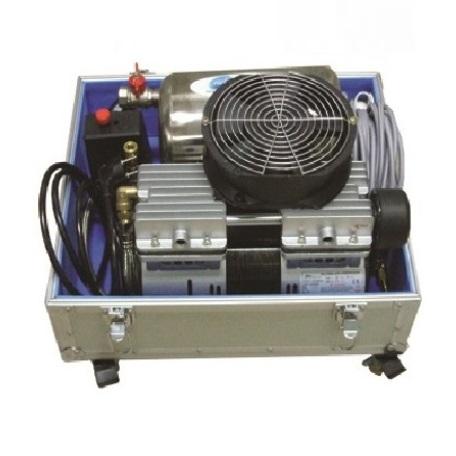

[ Impact Portable Compressor ]
1. Place it horizontally in a well-ventilated location.
2. Connect the 6mm pressure hose to the medical device.
3. Connect the power supply 220V 50 ~ 60Hz, unlock the valve.
4. When you turn on the switch, it works automatically.
5. If you keep stepping on the suction pedal, the compressor may be overloaded.
6. If the temperature goes down (5~10 minutes) even after it is overheated, it is automatically activated.
7. Remove the residual air and moisture by opening the drain valve after use.
8. Dimension 420x350x300
9. Tank capacity 5L / weight 20kg

[ Handpice & Scaler ]
1. Handpiece should be oil sprayed for ball bearings before use.
2. Insert accurately the coupling that can rotate 360 degrees.
3. For changing a bur in high-speed handpiece, press with a finger.
4. The orientation of the low speed handpiece(R,F) should not be centered.
5. The speed of high and low is adjusted according to the intensity of the disk pedal.
6. All handpiece with 4-hole system are compatible with any product.
7. The built-in scaler is very smooth with 32,000 Hz Piezo system.
8. It is easy to operate by gently pressing the disc pedal switch.
9. Scaler power, fuse, water are controlled by the upper valve.
10. Scaler, handpiece and tip can be sterilized in autoclave.

[ Impact Integrated Air Suction ]
Note: Suction will be activated by stepping on the foot pedal and releasing the lever.
If you continue to press for more than 5 seconds, the compressor will be overloaded.
1. Connect the dirt (2L) to the hose under the medical device.
2. Turn on the suction holder by pushing it upwards.
3. It is operated by pressing the foot pedal, so anyone can use it easily.
4. If you use it for a long time, the load of the compressor can be increased.
5. It is recommended to operate intermittently if there is dirt in the mouth.
6. If there is too much waste, it splashes.

[ Impact Portable Opreating Light ]
1. Loosen the 3-stage adjustable T-stand and stand it up.
2. Hold the special gooseneck by hand, adjust the angle and adjust the point.
3. Power: Insert 220V connection cord and plug it into output 12V.
4. Turn on all switches to turn on the halogen lamp.
5. To protect the lamp, the fan automatically turns to cool down.
6. Halogen lamps of 20,000 lux are available for 5000 hours.
7. Adjust the brightness by using the switch attached to the body of the transformer.
8. It consists of a trans-body and weighs 5.5kg.

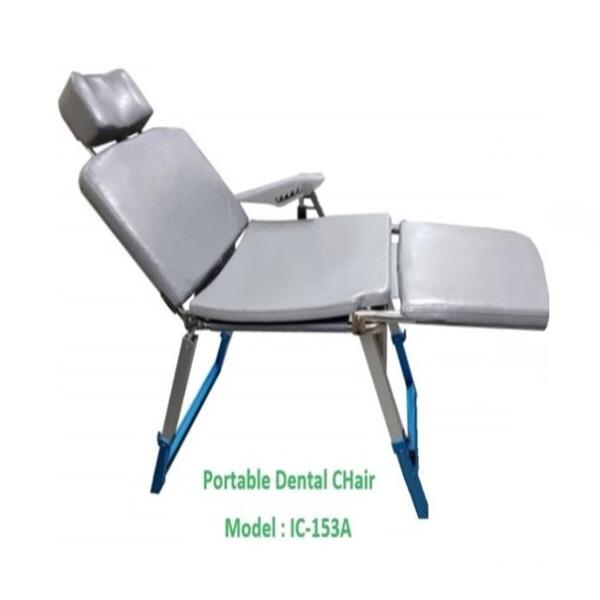

[ Impact Portable Portable Patient Chairs ]
1. Unfold the front legs first horizontally in an easy-to-treat place.
2. When you unfold the back legs, unfold completely until you hear the sound "click" as hard as you can.
3. First fully extend the backrest 180 degrees and unfold the legs.
4. The backrest and head are adjusted in five steps with a click sound.
5. The angle adjustment should be started from the back and then back to the maximum forward.
6. The height of the chair is easily adjusted by pressing both switches at the same time.
7. Natural leather seats are lightweight and can be replaced at any time.
8. Dimension 650x1700x500 / Weight 15kg
