PID
3075569

7 inch touch screen, 2ch, 3ch, 4ch, 5ch black box, full hd dashcam, CCD, IR

share

Request For Quotation
7" touch screen, 5ch blackbox 'pentaview', full hd front, ip69 , IR, auto white balance, mirror on/off,
Certification
Award
Shipping
Payment

140+ Global Payments, trusted and secure payment provided by PayVerse.

Learn More

Detailed Description



[Company Introduction]

We are a specialized company in development, manufacture & installation of dashcams and rear cameras for big commercial vehicles.

We aim to provide total management services about vehicle safety to those drivers in accordance with government policies.

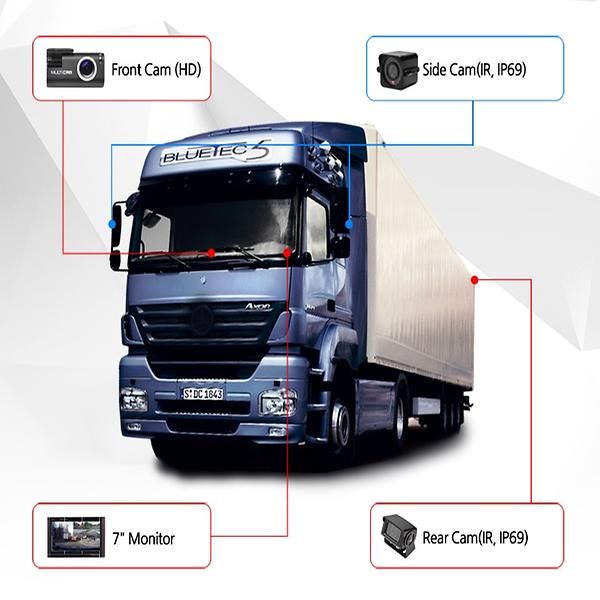

This time, we launched a brandnew dashcam ‘PentaView’ which supports 2 to 5 channels specially for big and heavy vehicles like buses, trucks and trailers etc.

It is expected to be the role to prevent traffic accidents on blind sports as well as oil traffic accidents on blind spots as well as oil theft.

Besides, we got the patent of to ; Title of the invention ; Dashcam specialized for big commercial vehicles.

 Around 80% of truck or bus accidents allegedly occur on right side blind spots and result in death or fatal injuries.

We feel that it’s our duty to help reducing the kind of accidents with the installation of our device.

Every single member in this company has put every effort into this product and take pride in our own jobs.



Now, we are starting to expand our markets overseas. We have a vision to be one of top leading companies all over the world in this field.


[社紹介]


お元ですか。

ウィノティエンビ株式社のホムペジを訪問してくださってありがとうございます。

ウィノティエンビ株式社はいつも安全を最優先に考えています。

交通事故と無差別テロが急している傾向です。

小型車はもちろん、高の装備である大型車にもブラックボックスはなくてはならない必須不可可決した要素です。

しかし、ほとんどのブラックボックスは、小型車を基準で制作されています。

大型車での使用の際、死角地生してブラックボックスの一番重要な役割をしない場合も生します。

ウィノティエンビ株式社はこれらの点に着眼して国内で初めて貨物トラックやドムプチュロク、レミコンなどの大型車を基準に、トラック用のブラックボックスを発売しています。

後進を自動的に認識し、録画される、後方カメラまで完璧なパッケジでお客の安全を責任を負います。

ウィノティエンビ株式社は最高になるよりは最善をくして誰より早く一先に顧客の安全を担うことをお約束いたします。

ありがとうございます




[Product Description]


Dashcam is not an option anymore, especially for buses & trucks. You may have a near car-crash experience on one of the car blind spots. Our brand new product, ‘Blind spot Dashcam PentaView’ will help your safe journey.

  We recommend our pentaview to drivers with big vehicles. It’s almost perfect for them. Pentaviw gives you better options when you install a monitor. you can put anywhere you want to on the deck. Unlike other dashcams, the monitor is separated from the front cam. It's absolutely convenient to look at or reach out for the screen. Plus, with Pentaview, you don’t need to shift into reverse gear when checking the real view camera, because PentaView lets you see the rear of the car through the real view camera in real time.


[商品明]

dashcamは、もはやオプションではありません。に、バスやトラックです。 盲点の1つにネクラッシュの経験があるかもしれません。 当社新製品、「ブラインドスポットDashcam PentaView」は安全役立ちます。

大型車転手には、たちのpentaviewをおめします。 それはほぼ完璧です。Pentaviwは、フロントカメラがのダッシュカメラとってモニタ内蔵されていないので、どこにでも設置することができます。 フロントカメラから分離されたモニタは、画面たり、ばしたりする対的利便性提供します。 さらに、PentaViewを使用すると、リアビュカメラをチェックするときにリバスギアにえる必要はありません.PentaViewは、リアビュカメラをしてリアのカメラをリアルタイムでることができるためです。




[Product Features]


LCD/PIP

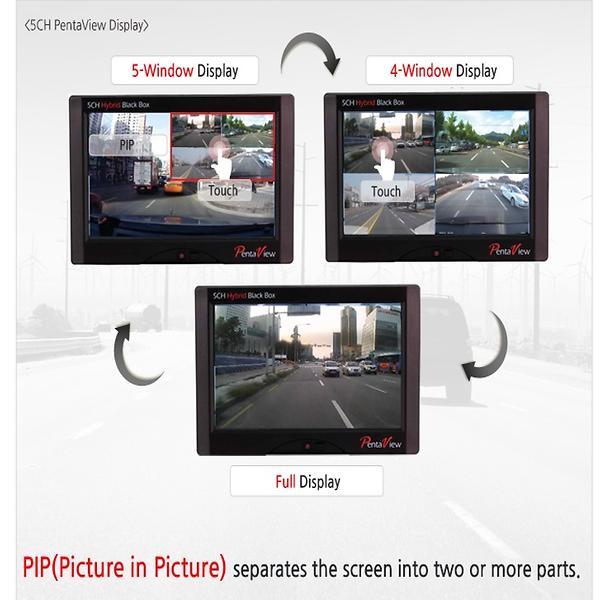

7”(800 X 480) / PIP capability

Angle of view

Front V(60deg) H(110deg) D(130deg) /.Rear, Side V(92”) H(116”) D(145”)

Function

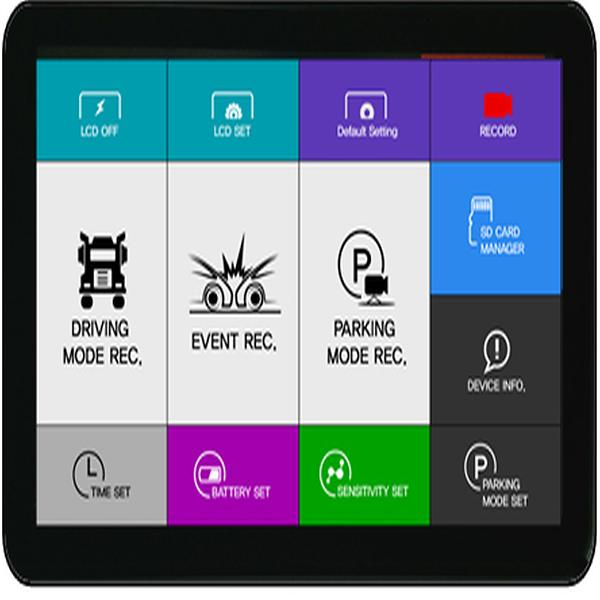

Preview Menu(Sleep mode Parking mode, Mute etc)

Camera resolution

Front 1280 X 720(HD), Rear 720 X 480(D1 VGA)

Frame

Max 30fps each camera

Memory/Writing

MicroSD SDHC 16GB(Class 10) Over Writing up to Max 256GB

Sound recording/Speaker/Voice instruction

High Qual.MIC(MUTE available) High Qual. Speaker / Voice instruction/ LED

GPS Module

External GPS type (optional), location/time/speed

Working voltage(V)/Working Temperature

12~24V, -20deg~60deg / - 30deg~80deg Super CAP adapted

High Voltage protection

Cutting off at 40vdc

High temperature Protection mod

Cutting off at 90deg

Recording mode

Driving/Event/Parking mod Motion detector.

Interval of recording time

1mininterval/ 15sec before & after impact 15sec before & after motion detecting

SD Format

Format Free/ Memory card format in the device

PC-Viewer/PC operation

PC viewer(Freepc viewer support) Win xp, Vista, Win7

Rear camera

IR/Water, Vibration Resistance, 520K pixel

Side Camera

IR/Water, Vibration Resistance, 410K pixel
