Model UF-100 GENECHECKER Ultra-Fast Thermal Cycler
- Certification
-
- Award
-
- Shipping
-
- Type of Freight MM
- Modes of Transport FOB
- Payment
-
140+ Global Payments, trusted and secure payment provided by PayVerse.
Learn More
- Quantity
- MOQ : 1 EA
Detailed Description

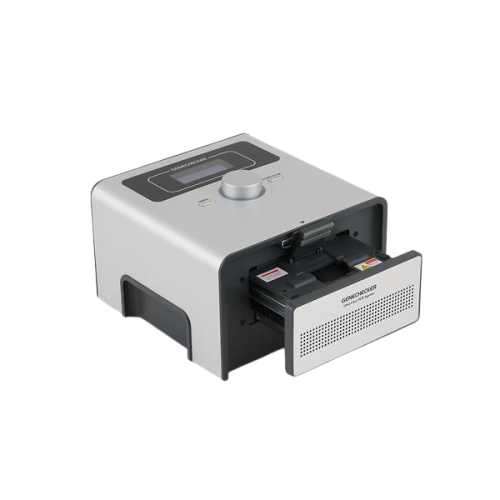

Model UF-100 GENECHECKER® Ultra-Fast Thermal Cycler
DNA Amplification, 12 Minutes is More than Enough.
- Patented chip-based design and ultra-fast ramping provides extremely rapid output. - “30 cycles in 12 minutes”
- Innovative PCR device at an affordable price
- Intuitive control with LED indicated jog-dial and LCD display
- Innovative and compact design for laboratory and POCT applications
- Increased sample capacity (16 samples) gives you more efficiency.
The best tool to make your DNA amplification faster and easier.
GENECHECKER® adopted special polymer chip (Rapi: chip™) which enables
even faster thermal treatment of samples in it than the case of using
conventional PCR tubes. The thermal cycling mechanism of GENECHECKER®
achieves an 8 °C/sec ramping rate for both heating and cooling.
State-of-the-art hardware technology achieved great functionality and cost-effectiveness.
The patented technical know-how of Genesystem which is optimized for design and
production of PCR device and publically recognized by getting awarded for
grand prize at the competition for renowned high-end invention (KINPEX) is
efficiently applied to model UF-100 ultra-fast thermal cycler.
SPECIFICATION
| Operating Mechanism | Precise Control of Peltier Element |
| Temperature Accuracy | ± 0.5°C |
| Temperature Uniformity | ± 0.5°C (Well to Well) |
| Temperature Stability | ± 0.5°C |
| Ramping Rate | 8.0°C/ second |
| Range of Temperature Setting | 35 ~ 65°C (1.0°C Increment) for RT Step |
| 20 ~ 99°C (1.0°C Increment) for PCR | |
| Sample Fotmat | Polymer Based 3-Dimensional Microfluidic Chip |
| Number of Sample per Run | 16 |
| Required Sample Volume | 10μl |
| Typical PCR Duration | Less than 12 Minutes for 30 Cycles (without RT Step) |
| Display | Text LCD (4 Line) |
| Integrated Memory | Saves up to 12 PCR Protocols |
| Power (Wattage) | AC 110-230V (50-60Hz) input / DC 12V Output (120W) |
| Dimension / Weight | 200(w) x 200(d) x 125(h) mm / 2.6kg |
ORDERING INFORMATION
| Cat. No. | Description | Pack Size |
| 1099100100 | GENECHECKER® UF-100 Thermal Cycler | 1SET |
| 1699100500 | Optional Power Cable for Car Cigarette Power Socket | 1SET |
