Model UF150 GENECHECKER UltraFast Realtime PCR System
- Certification
-
- Award
-
- Shipping
-
- Type of Freight MM
- Modes of Transport FOB
- Payment
-
140+ Global Payments, trusted and secure payment provided by PayVerse.
Learn More
- Quantity
- MOQ : 1 Sets
Detailed Description

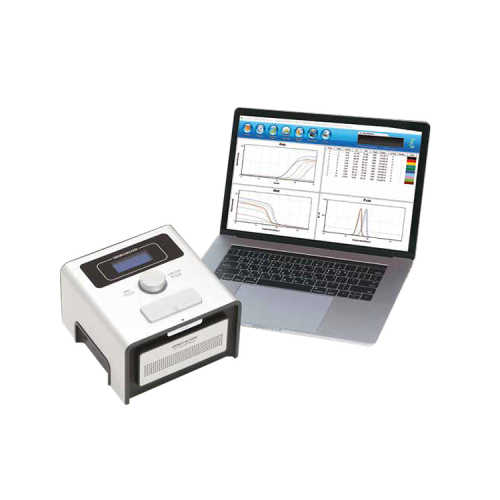

Model UF-150 GENECHECKER® Ultra-Fast Real-time PCR System
"Real-time Detection, Faster and Easier than Ever"
- Patented Chip Based Design Provides Extremely Rapid Output -“30 Cycles in 12 Minutes”
- Real-time Detection through a Dedicated Software, GENERECORDER
- Innovative and Compact Design for Laboratory and POCT Applications
- Intuitive Control With LED Indicated Jog-Dial and LCD Display
- Conventional and Reverse Transcriptase(RT) PCR with Single Device
GENECHECKER® adopted the special polymer chip (Rapi:chip™) which enables even faster thermal treatment of samples in it than the case of using conventional PCR tubes. The thermal cycling mechanism of GENECHECKER® achieves 8°C/sec ramping rate for both heating and cooling. The integrated camera module of GENECHECKER® fully monitors and records the fluorescence signal of each sample and the recorded fluorescence values are processed and displayed by GENERECORDER software.
Using this unique data analysis method, GENECHECKER® is providing very precise results of reaction comparing to conventional real-time PCR instruments in the market which are collecting fluorescence data through the optical scanning method. The user interface of GENERECORDER was designed to make general real-time PCR instrument users easily operate this innovative instrument. GENERECORDER provides amplification curves, melting curves and melting peaks for easy analysis.
GENECHECKER® comes with its own laptop PC where GENERECORDER is installed and individually calibrated. No user’s calibration is needed to run the instrument.
SPECIFICATION
| Operationg Mechanism | ± 0.5°C |
| Temperature Accuracy | ± 0.5°C (Well to Well) |
| Temperature Uniformity | ± 0.5°C |
| Temperature Stability | 8.0°C / second |
| Ramping Rate | 35 ~ 65 (1.0°C Increment) for RT Step |
| Range of Temperature Setting | 20 ~ 99 (1.0°C Increment) for PCR |
| Sample Format | Polymer-Based 3-Dimensional Microfluidic Chip |
| Number of Samples per Run | 10 |
| Required Sample Volume | 10μl |
| Typical PCR Duration | Less than 12 Minutes for 30 Cycles (without RT Step) |
| Method of Detection | Comparison of Digitized Fluorescence Signal |
| Display | Text LCD (4 Line) |
| Integrated Memory | Saves up to 12 PCR Protocols |
| Type of Excitation | High Brightness LED |
| Wavelength | 465nm ± 10nm |
| Number of Detection Channel | 1 |
| Method of Fluorescence Measurement | Integrated Camera Module |
| PC Connection | USB 2.0 A to B (PC to Device, |
| Power (Wattage) | Only available through GENERECORDER) |
| Dimension / Weight | AC 110-230V (50-60Hz) Input / DC 12V Output (120 W) |
| Precise Control of Peltier Element | 200(w) x 200(d) x 125(h) mm / 2.6kg |
ORDERING INFORMATION
| Cat. No. | Description | Pack Size |
| 1199100101 | GENECHECKER® UF-150 Real-time PCR System | 1SET |
| 1699100500 | Optional Power Cable for Car Cigarette Power Socket | 1SET |
