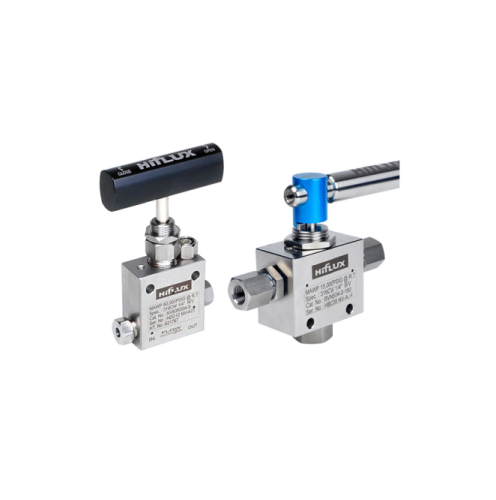

[HIFLUX] High Pressure Needle Valve

Needle valve is a hand-operated valve to control the flux of oil or gas according to the degree by which the stem is blocking the passage of oil or gas, or it can be used to open or close the flow of oil or gas.

Needle valve is remarkably safe and is highly resistant to corrosion because it was designed and manufactured by taking into account the features of oil and gas and pressure used at different temperatures.

The life of this product has been lengthened by preventing the stem’s galling as much as possible.
This product has four body types; straight, angle, 3way/1on pressure, and 3way/2on pressure.
You can use this product according to desired options by means of pressure and port size.



* Features

- Prevents galling due to the no-rotation stem.
- Packing designed for reliable sealing.
- Metal to metal seating type to lengthen the life of the seat.
- A valve using stainless steel 316 cold material for excellent corrosion resistance.
- 'Vee' or 'Regulating' stem for flow control and shut-off.
- 4-pattern body type. (Straight, Angle, 3Way/1on, 3Way/2on pressure type).



* Pressure & Tube Size

* Body Types





[HIFLUX] Needle Valve Series - Type

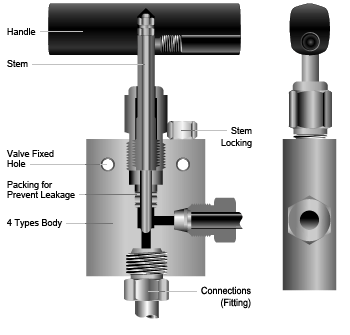

1. Needle Valve Series - Straight Type Structure

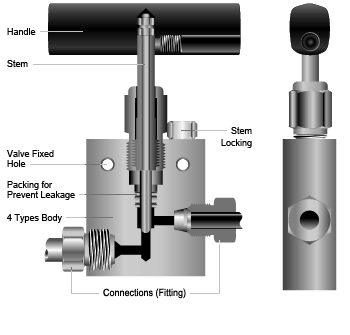

2. Needle Valve Series - Angle Type Structure

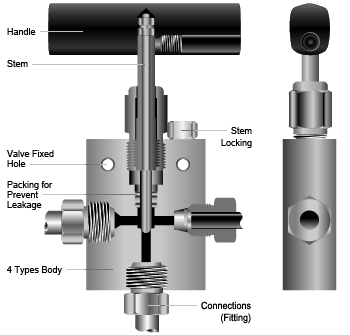

3. Needle Valve Series - 3Way/1on Pressure Type Structure

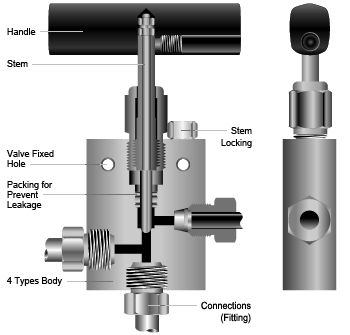

4. Needle Valve Series - 3Way/2on Pressure Type Structure

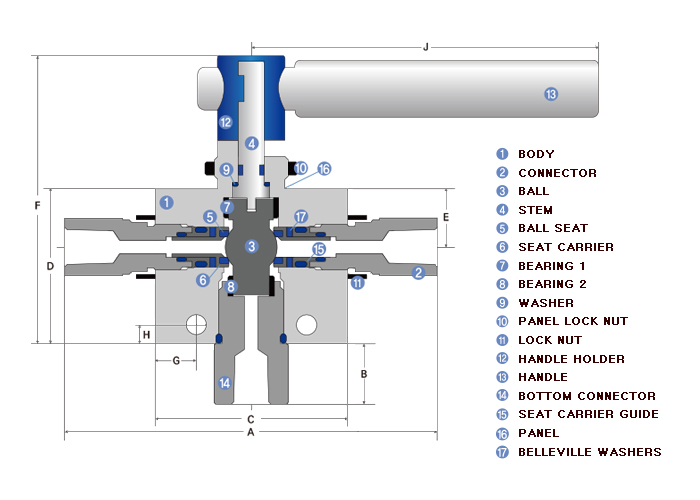

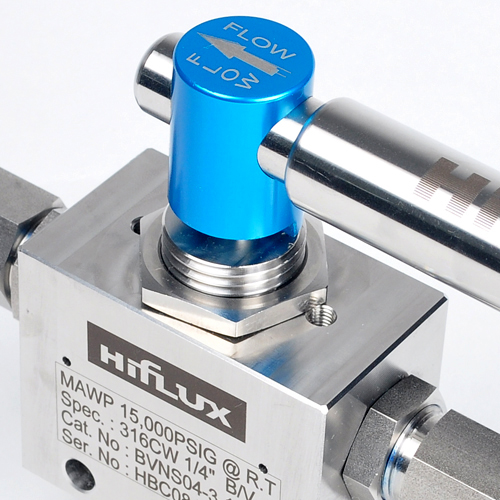

* [HIFLUX]  High Pressure 2-Way Trunnion Ball Valve

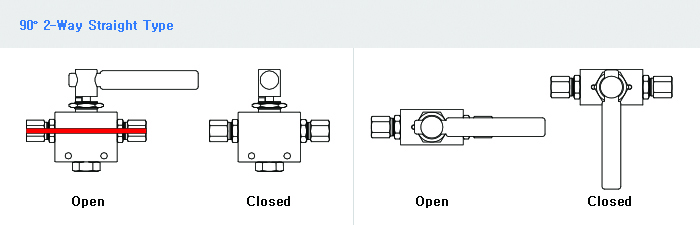

Ball valve is a manual valve that is used to open or close the flow of gas or fluids by the turning 90-degrees with a valve handle.

Hiflux Ball valve is using a trunnion-type ball with a seat and possible to use in low pressure and high pressure environment without leakage.

Peek which is good for abrasion resistance, rub resistance and chemical resistance is used for the seat.

* Features

-  Trunnion style BALL.
-  Turn 1/4"(90-degrees)
-  Tubing size: 1/8", 1/4", 3/8", 9/16"
-  Max working pressure: 20,000psi
-  Advance of abrasion resistance, rub resistance and chemical resistance with PEEK for seat.
-  O-ring Material: Viton
-  Standard Material: SUS316
-  Possible to check flow direction with handle position.
-  Important information for ball valve.
-  Designed to completely open or close.
-  Would be required to high driving power at the first open or close if not used a long time.
-  Available to panel mounting.
-  Possible to check flow direction with handle position.
-  Improve the lifetime and  prevent abrasion with using spring washer.

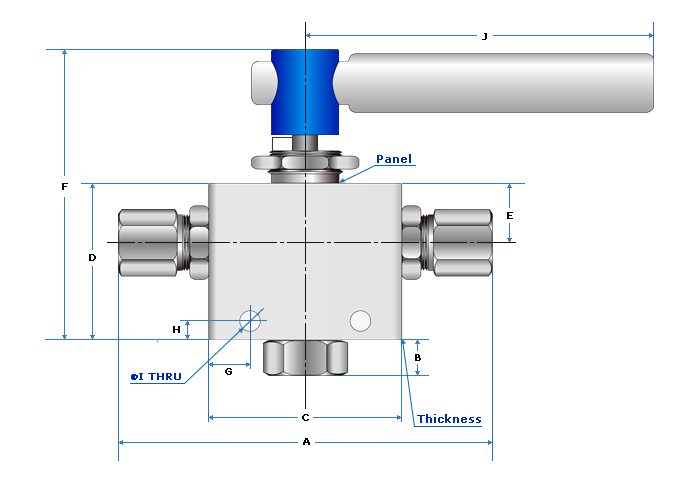

(Unit:mm)

* As all sizes are for reference, they can be different from actual sizes.
* Please contact us for details or send to online inquiry, We will give you respond as soon as possible.

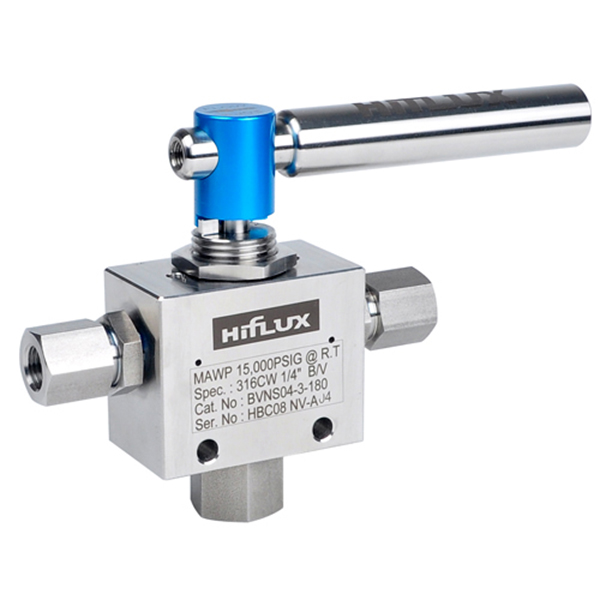

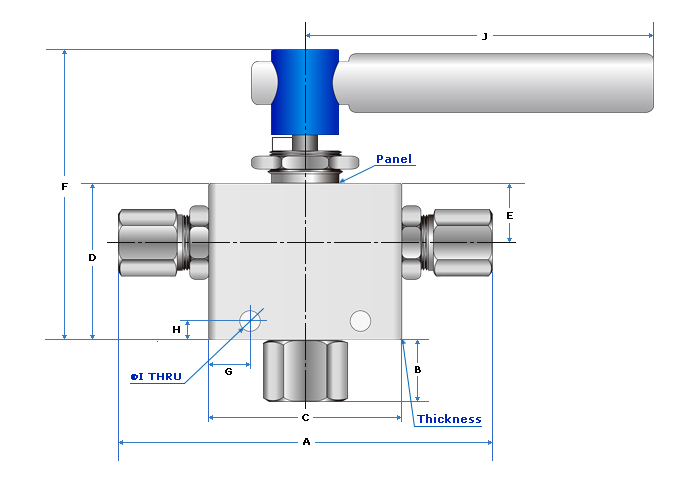

* [HIFLUX]  High Pressure 3-Way Trunnion Ball Valve


 Ball valve is a manual valve that is used to open or close the flow of gas or fluids by turning 1/4" (180-degrees) or 1/2" (180-degrees) with a valve handle.

 HIFLUX Ball valve is using a trunnion-type ball with a seat and possible to use in low pressure and high pressure environment without leakage. Peek which is good for abrasion resistance, rub resistance and chemical resistance is used for the seat.

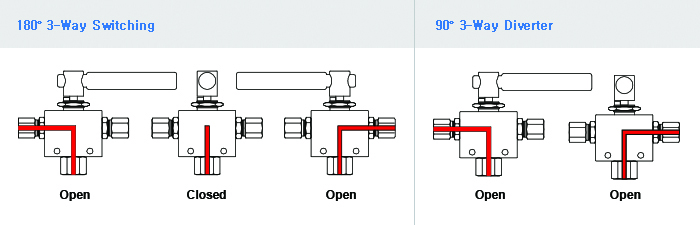

 HIFLUX provide two types of 3-way ball valve which change output flow direction or close by 1/2"(180-degrees) turn and diverter type which changes flow direction by turning 1/4”(90-degrees).

* Features

-  Trunion style BALL.
-  Turn 1/4"(90-degrees) or 1/2 (180-degrees)
-  Tubing size: 1/8", 1/4", 3/8", 9/16"
-  Max working pressure: 20,000psi
-  Advance of abrasion resistance, rub resistance and chemical resistance with PEEK for seat.
-  O-ring Material: Viton
-  Standard Material: SUS316
-  Possible to check flow direction with handle position.
-  Important information for ball valve.
-  Designed to completely open or close.
-  Would be required to high driving power at the first open or close if not used a long time.
-  Available to panel mounting.
-  Possible to check flow direction with handle position.
- Improve the lifetime and prevent abrasion with using a spring washer.

(Unit:mm)

* As all sizes are for reference, they can be different from actual sizes.
* Please contact us for details or send to online inquiry, We will give you respond as soon as possible.



* Other product

	High pressure needle valve			High pressure pipe needle valve
	High pressure check valve			High pressure ball valve
	High temperature valve			High pressure control valve
	Air operated valve			High pressure tube fitting
	High pressure tube			High pressure nipple
	Low pressure tube			High pressure gauge
	High pressure regulator			Back pressure regulator
	High pressure union adapter			General pressure regulator
	High pressure adapter			High pressure male adapter
	Tube support
	Safety Head			Rupture disc
	Tooling Set-Coning tool			Tooling Set-Reseating tool
	Tooling Set-Threading tool			Lok Type Fitting
	Lok Type Valve

* Ordering option

- As our products are divided into pressures of 5,500~150,000psi, body type and port size, you can use them according to the specifications which you want to use.
- Our products generally are produced with STS materials, but they can be manufactured with other materials on demand so that various fluids and gases can be used.
- Please inquire with us about special materials apart from the above-mentioned materials, such as STS316, HC-276, INC600, INC700, Ti and Ni.
