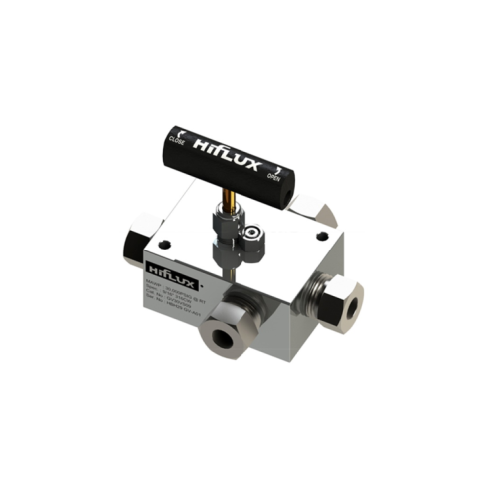

Wellhead Gauge Valve (20,000 ~ 30,000 psi)






Welhead gauge valve can be installed for sampling and calibration instruments, it is possible to take a sample from the line with installed bleed valve and possible to assemble and disassemble the instrument for calibration.
The maximum working pressure is 30000 psig with one inlet port and 3 outlet ports and a bleed valve, gauge or other instruments can be assembled for a special purposes.

Application - Sampling Lines, Calibration for Instruments



* FEATURES


- Tube size: 1/4”, 3/8”, 9/16”
- Max allowed working pressure: 30000 psig
- Prevents galling due to the no-rotation stem.
- Packing designed for reliable sealing
- Metal to Metal sealing type
- One inlet port with 3 outlet port
- stainless steel 316 cold material for excellent corrosion resistance.
- Packing located below stem threads



* STRUCTURE



Gauge Valve, Bleed Valve application                       STRUCTURE



* SPECIFICATION

N: Hole Size, (*): The height when valve is fully closed

- As all sizes are for reference, they can be changed without any notification.
- Please contact us for details or send to online inquiry, we will give you respond as soon as possible.
